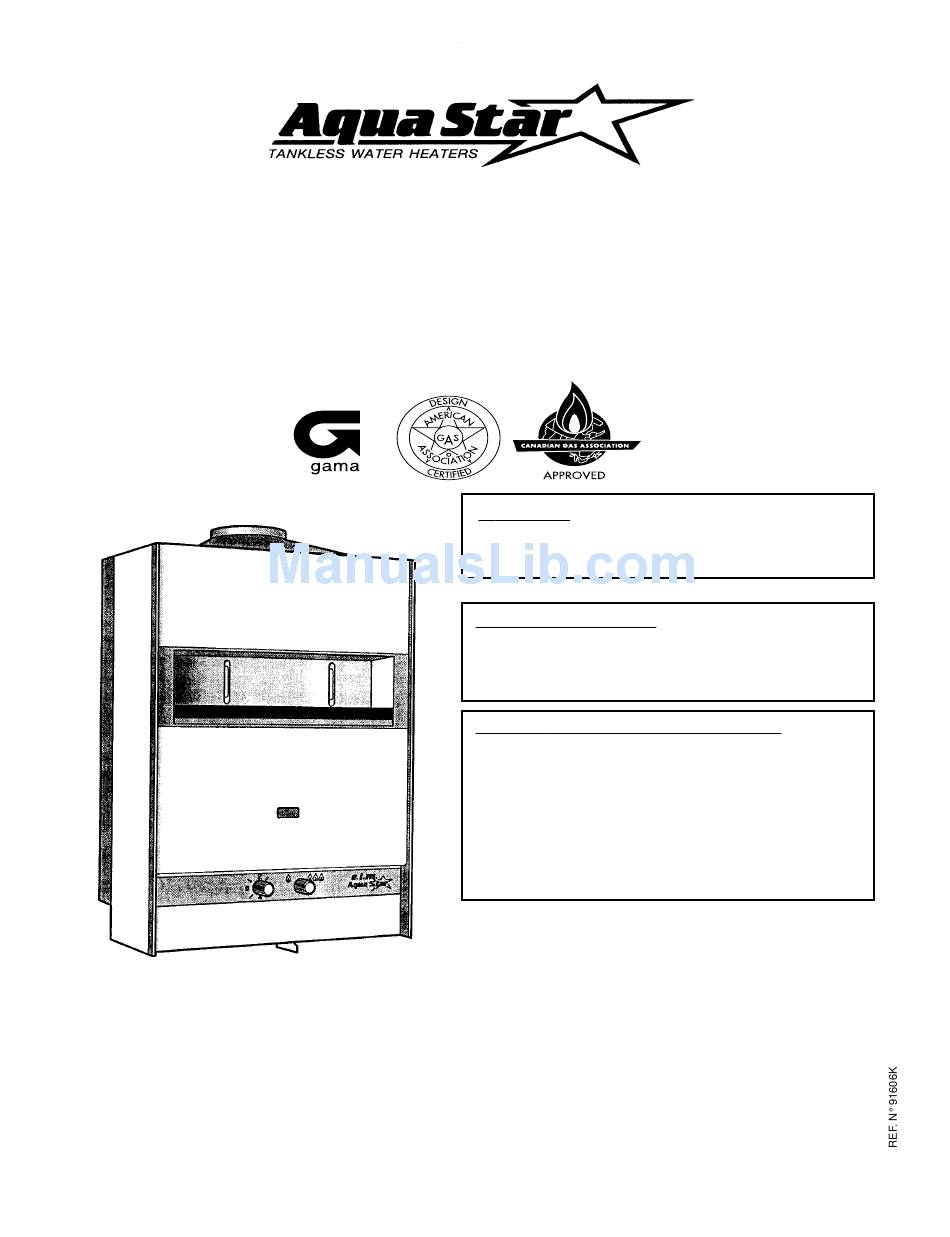

I N S TA L L AT I O N A N D O P E R AT I N G I N S T R U C T I O N S
F O R A U T O M AT I C I N S TA N TA N E O U S T Y P E WAT E R H E AT E R S
F O R U S E W I T H N AT U R A L A N D L I Q U E F I E D P E T R O L E U M G A S
Upon completion of the installation, these instructions should be handed to the user of the appliance for
future reference.
FEATURING:
Suitable for water (potable) heating and space heating
*REPLACEMENT MANUAL MUST BE PURCHASED
Variable Power - Modulating Gas Valve - Thermostatic Control with Temperature Dial Selector

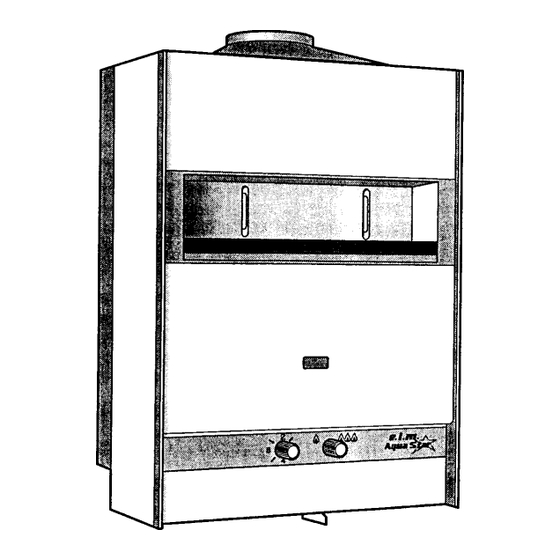

MODEL 170 VP
WARNING:
followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable,
combustible or corrosive vapors and liquids in
the vicinty of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
If the information in this manual is not
