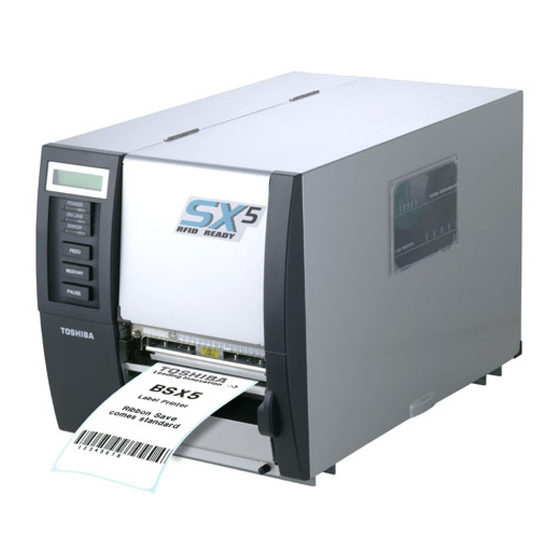

Toshiba B-SX5T Product Description
  1. Manuals
  2. Brands
  3. Toshiba Manuals
  4. Printer
  5. B-SX5T Series
  6. Product description

Toshiba B-SX5T Product Description

Hide thumbs Also See for B-SX5T:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
TEC Thermal Printer
B-SX4T/SX5T SERIES
Product Description
Original
Jan., 2003
(Revised
Feb., 2003)
Jan., 2006)
Document No. EO10-33013B
PRINTED IN JAPAN

Advertisement

Table of Contents
loading

Related Manuals for Toshiba B-SX5T

Summary of Contents for Toshiba B-SX5T

  • Page 1 TEC Thermal Printer B-SX4T/SX5T SERIES Product Description Document No. EO10-33013B Original Jan., 2003 (Revised Feb., 2003) Jan., 2006) PRINTED IN JAPAN...

  • Page 2: Table Of Contents

    CD-ROM. The other specifications including the firmware are common. CAUTION! 1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA TEC. 2. The contents of this manual may be changed without notification.

  • Page 3: Outline

    5) The B-SX4T series accommodates a max. format size of 104.0 mm wide by 1498.0 mm long and a max. printing speed of 10”/sec. The B-SX5T series accommodates a max. format size of 128.0 mm wide by 1498.0 mm long and a max. printing speed of 8”/sec.

  • Page 4: Appearance And Dimentions (Approximate)

    1. OUTLINE EO10-33013B (Revision Date: May 18, 2006) 1.3 APPEARANCE AND DIMENSIONS (APPROXIMATE) 1.3 APPEARANCE AND DIMENSIONS (APPROXIMATE) 1.3.1 Front View/Rear View Front View Rear View PCMCIA Card Slot (Option), USB Connector (Option), or Parallel Interface Top Cover LCD Message Display LAN Connector (Option) Connector (Centronics) Operation...

  • Page 5: Basic Specifications

    4) Format size (W) x (L) B-SX4T......... Max. 104.0 mm x 1498.0 mm B-SX5T......... Max. 128.0 mm x 1498.0 mm 5) Issue mode ......Batch Auto cut (Auto cut mode is available only when the optional cutter is attached.) Strip (In case of the B-SX4T, the strip mode is available only when the optional strip module is attached.)
  • Page 6 Price Font (1,2,3), Times roman proportional, Pop Letter Gothic medium (14.3 point) Proportional, Proportional) (15) Writable characters (2-byte character is available.) [B-SX5T] Times Roman medium (8, 10 point) (9) Prestige Elite medium (7 point) Times Roman bold (10, 12, 14 point)
  • Page 7 1. OUTLINE EO10-33013B 1.4 BASIC SPECIFICATIONS 12) White or black background all types of characters are available. ° ° ° ° 13) Character rotation ......0 , 90 , 180 , 270 ° ° ° ° 14) Character strings rotation ....0 , 90 , 180 , 270...

  • Page 8: Electronics Specifications

    (3) Image buffer + Work B-SX4T......8MB SD-RAM (MAIN4 PC Board: 16MB) B-SX5T......16MB SD-RAM (MAIN4 PC Board: 32MB) (4) Chinese Font ROM ... 8MB Flash ROM (CN model only Serial No. 2609Dxxxxxx or later)) Note: Program area size and Registry area size of the MAIN3 and MAIN4 PC boards...
  • Page 9 Data entry code: ASCII, 8-bit code for European characters, 8-bit code for graphic Receiving buffer: B-SX4T: 1MB, B-SX5T: 6MB Protocol XON/XOFF (DC1/DC3) protocol • When initialized after power on, this printer becomes ready to receive data and sends an XON code (11H).
  • Page 10 1. OUTLINE EO10-33013B 1.5 ELECTRONICS SPECIFICATIONS XON/XOFF (DC1/DC3) protocol + READY/BUSY (DTR) protocol • When initialized after power on, this printer becomes ready to receive data and converts the DTR signal to "High" level (READY). The printer sends an XON code (11H). •...
  • Page 11 Select/XFlag 100P PError/nAckReverse NOTE: When using a Centronics Interface Cable on the B-SX5T Series Please put the ferrite core on the Centronics interface cable, close to the connector (printer side), and secure it with a cable band as shown below.
  • Page 12 External controller, etc. Printer COM1 Photo-coupler TPL521 (TOSHIBA) TLP521 (TOSHIBA) There are six input circuits, and each input is a current loop using a photo-coupler. The anode of the photo-coupler is connected to common pin COM1 in each of the six circuits.
  • Page 13 1. OUTLINE EO10-33013B 1.5 ELECTRONICS SPECIFICATIONS (4) USB Standard: Conforming to Rev. 1.1 Transfer type: Control transfer, Bulk transfer Transfer rate: Full speed (12M bps) (5) Network interface (LAN, PCMCIA) • PCMCIA board + LAN card Constitution: • 10 Base-T or 100 Base-TX LAN board Protocol: TCP/IP Network specifications: •...
  • Page 14 1. OUTLINE EO10-33013B 1.5 ELECTRONICS SPECIFICATIONS Feed gap sensor (Transmissive sensor) This sensor detects the difference in potential between the backing paper and the label to find the print position of the label. The feed gap sensor is located at 8 mm to the right of the black mark sensor.
  • Page 15 1. OUTLINE EO10-33013B 1.5 ELECTRONICS SPECIFICATIONS (5) Slit sensor (Transmissive sensor) This sensor detects the rotation count of the ribbon shaft and the ribbon motors. The ribbon motors torque works to take up slack in the ribbon and is dependent on the detected count. The slit sensor is a photo coupler combining an LED and a transistor.
  • Page 16 1. OUTLINE EO10-33013B 1.5 ELECTRONICS SPECIFICATIONS (7) Rewind full sensor (Transmissive sensor) This sensor detects that the built-in rewinder is full when winding backing paper or printed media onto the take-up spool. It is positioned at 316.4 mm (Tr side) and 272 mm (LED side) from the platen.

  • Page 17: Supply Specifications

    Detail specifications and other information on the media and ribbon are described in Supply Manual by model. It is issued by and sent from TOSHIBA TEC H.Q (Sales Division) upon release of new model or manual's revision. When purchasing the supplies locally, be sure to refer to the Supply Manual for details.
  • Page 18 When marking black marks on the label rolls, they should be marked at the gaps. “On the fly issue” means that the printer can feed and print without stopping between labels. There are restrictions in use of the media which is narrower than 50 mm. For details, refer to TOSHIBA TEC Head Quarters.
  • Page 19 Outside the print range Outside the print range Head effective print width 104.0 mm 0.2 mm 112.0 mm (Maximum paper width) [B-SX5T] Outside the print range Head effective print width Outside the print range 6.0 mm 6.0 mm 128.0 mm 0.2 mm...

  • Page 20: Ribbon

    The ink side faces outside of ribbon winding NOTES: 1. To ensure print quality and print head life use only TOSHIBA TEC specified ribbons. 2. To avoid ribbon wrinkles use a ribbon which is wider than the media by 5 mm or more.

  • Page 21: Care And Handling Of The Media And Ribbon

    2. SUPPLY SPECIFICATIONS EO10-33013B 2.3 CARE AND HANDLING OF THE MEDIA AND RIBBON This inked surface faces the outside This ribbon should be wound at center of the core. End tape Ink ribbon (Non transmissive) Leader tape Adhesive tape Adhesive tape Adhesive tape Ink outside Core...

  • Page 22: Specification Of Rfid Tag (B-9704-Rfid-U1-Us/Eu-R, H1-Qm-R)

    2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.4 SPECIFICATION OF RFID TAG (for B-9704-RFID-U1-US/EU-R, H1-QM-R) 2.4 SPECIFICATION OF RFID TAG (for B-9704-RFID-U1-US/EU-R, H1-QM-R) 2.4.1 General Description The RFID supplies are RFID tag (wireless IC tag) inlays designed to be converted into tag and label applications.
  • Page 23 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.4 SPECIFICATION OF RFID TAG (for B-9704-RFID-U1-US/EU-R, H1-QM-R) 2.4.3 Location of RFID Tag The location of an RFID tag on a label influences on the accuracy of writing data on the RFID tag. It is impossible to define the one best location for every RFID tag on labels because the best location depends on the type of RFID tag and RFID tag antenna.
  • Page 24 An RFID tag chip or the print head may be damaged when the print head passes over the chip. This can be prevented by using the ribbon saving module (standard feature for the B-SX5T and optional for the B-SX4T). The print head is lifted by the ribbon saving module when it passes over the chip to prevent it from touching the chip.
  • Page 25 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.4 SPECIFICATION OF RFID TAG (for B-9704-RFID-U1-US/EU-R, H1-QM-R) 5) Cutter When an RFID label or tag is used in cut issue mode, care must be taken not to cut an antenna of the RFID tag or an IC chip in order not to damage the cutter.
  • Page 26 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.4 SPECIFICATION OF RFID TAG (for B-9704-RFID-U1-US/EU-R, H1-QM-R) 10) Strip Issue Stripping performance in strip issue mode depends on the type of glue, tag, and backing paper. For some RFID supplies used, an issue may not be performed properly in strip issue mode. 11) Caution for Minimum Label Pitch Length When media, of which label pitch length is short, is used, data may be written on an RFID tag next to the target RFID tag.

  • Page 27: Specification Of Rfid Tag (B-Sx704-Rfid-U2-Eu/Au-R)

    2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.5 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU -R) SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU-R) 2.5.1 General Description The RFID supplies are RFID tag (wireless IC tag) inlays designed to be converted into tag and label applications.
  • Page 28 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.5 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU -R) (1) UPM Raflatac’s Rafsec Short Dipole 2 Tag It is recommended to locate the vertical center of an RFID tag at 35 mm ± 3 mm from a leading edge of a label and align the horizontal center with the horizontal center of the label.
  • Page 29 An RFID tag chip or the thermal head may be damaged when the thermal head passes over the chip. This can be prevented by using the ribbon saving module (standard feature for the B-SX5T and optional for the B-SX4T) by which the thermal head is lifted up preventing it from touching the chip when it passes over the chip.
  • Page 30 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.5 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU -R) 3) Roll-type RFID Supplies When RFID supplies are to be rolled, roll hardness must be concerned. Although it depends on the type of glue, tag, and backing paper, RFID-tag embedded labels tend to stay rolled.
  • Page 31 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.5 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU -R) 7) Printing on Bump (Chip/Antenna) Area Embedding RFID tags in labels creates bumps in a chip/antenna area in the labels, causing incomplete printing. Especially, in the areas 5 mm from and left and right sides of the RFID-tag embedded area shown in the figure below, uneven printing or incomplete printing can occur easily.
  • Page 32 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.5 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU -R) 10) Caution for minimum label pitch length When short-pitch media is used, data may be written on a next RFID tag instead of the target RFID tag. As the location, where data is to be written, differs among RFID tag types, a check must be performed using the labels to be used to make sure that the data is written on the target RFID tags.
  • Page 33 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Apr. 24, 2008) 2.5 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-EU/AU -R) 2.5.6 Improvement of Writing Accuracy As RFID tags use wireless technologies, writing data on the RFID tag may fail depending on environment and characteristics of the RFID tags. In order to improve the accuracy of writing data on the RFID tags, the following method can be used: (1) Change of the maximum number of write retries The maximum number of write retries is variable and can be changed in the system mode.

  • Page 34: Specification Of Rfid Tag (B-Sx704-Rfid-U2-Cn-R)

    2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Feb. 6, 2009) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) 2.6.1 General Description The RFID supplies are RFID tag (wireless IC tag) inlays designed to be converted into tag and label applications.
  • Page 35 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Jul. 15, 2008) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) (1) Avery Dennison AD-222 Tag It is recommended to locate the vertical center of an RFID tag at 35 mm ± 3 mm from a leading edge of a label and align the horizontal center with the horizontal center of the label.
  • Page 36 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Jul. 15, 2008) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) (2) Alien Squiggle Tag It is recommended to locate the vertical center of an RFID tag at 35 mm ± 3 mm from a leading edge of a label and align the horizontal center with the horizontal center of the label.
  • Page 37 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Jul. 15, 2008) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) 2.6.4 Short-pitch Tag A short-pitch tag kit is supplied with the B-SX704-RFID-U2-US-R to enable the RFID kit to encode short-pitch tags properly. When the short-pitch tag kit is attached to the printer, the write field will be narrower.
  • Page 38 An RFID tag chip or the thermal head may be damaged when the thermal head passes over the chip. This can be prevented by using the ribbon saving module (standard feature for the B-SX5T and optional for the B-SX4T) by which the thermal head is lifted up preventing it from touching the chip when it passes over the chip.
  • Page 39 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Jul. 15, 2008) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) 7) Printing on Bump (Chip/Antenna) Area Embedding RFID tags in labels creates bumps in a chip/antenna area in the labels, causing incomplete printing. Especially, in the areas 5 mm from and left and right sides of the RFID-tag embedded area shown in the figure below, uneven printing or incomplete printing can occur easily.
  • Page 40 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Jul. 15, 2008) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) 10) Caution for minimum label pitch length When short-pitch media is used, data may be written on a next RFID tag instead of the target RFID tag. As the location, where data is to be written, differs among RFID tag types, a check must be performed using the labels to be used to make sure that the data is written on the target RFID tags.
  • Page 41 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: Jul. 15, 2008) 2.6 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-US-R) 2.6.6 Improvement of Writing Accuracy As RFID tags use wireless technologies, writing data on the RFID tag may fail depending on environment and characteristics of the RFID tags. In order to improve the accuracy of writing data on the RFID tags, the following method can be used: (1) Change of the maximum number of write retries The maximum number of write retries is variable and can be changed in the system mode.
  • Page 42 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: May 22, 2009) 2.7 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-CN -R) SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-CN-R) 2.7.1 General Description The RFID supplies are RFID tag (wireless IC tag) inlays designed to be converted into tag and label applications.
  • Page 43 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: May 22, 2009) 2.7 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-CN -R) (1) Omron Wave tag It is recommended to locate the vertical center of an RFID tag at 38 mm ± 3 mm from a leading edge of a label and align the horizontal center with the horizontal center of the label.
  • Page 44 An RFID tag chip or the thermal head may be damaged when the thermal head passes over the chip. This can be prevented by using the ribbon saving module (standard feature for the B-SX5T and optional for the B-SX4T) by which the thermal head is lifted up preventing it from touching the chip when it passes over the chip.
  • Page 45 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: May 22, 2009) 2.7 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-CN -R) 7) Printing on Bump (Chip/Antenna) Area Embedding RFID tags in labels creates bumps in a chip/antenna area in the labels, causing incomplete printing. Especially, in the areas 5 mm from and left and right sides of the RFID-tag embedded area shown in the figure below, uneven printing or incomplete printing can occur easily.
  • Page 46 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: May 22, 2009) 2.7 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-CN -R) 10) Caution for minimum label pitch length When short-pitch media is used, data may be written on a next RFID tag instead of the target RFID tag. As the location, where data is to be written, differs among RFID tag types, a check must be performed using the labels to be used to make sure that the data is written on the target RFID tags.
  • Page 47 2. SUPPLY SPECIFICATIONS EO10-33013B (Revision Date: May 22, 2009) 2.7 SPECIFICATION OF RFID TAG (for B-SX704-RFID-U2-CN -R) 2.7.6 Improvement of Writing Accuracy As RFID tags use wireless technologies, writing data on the RFID tag may fail depending on environment and characteristics of the RFID tags. In order to improve the accuracy of writing data on the RFID tags, the following method can be used: (1) Change of the maximum number of write retries The maximum number of write retries is variable and can be changed in the system mode.

  • Page 48: Optional Kit

    B-4905-FF-QM-R print on fanfold paper. Wireless LAN Installing this PC board allows a B-9700-WLAN-QM-R Module communication by wireless LAN. O: Installable X: Not installable NOTE: To purchase the optional kits, please contact the TOSHIBA TEC Head Quarters. 3- 1...

  • Page 49: Cutter Module: B-4205-Qm/Qm-R (Swing Cutter)

    30.0 mm − 112.0 mm Media width B-SX4T 30.0 mm − 140.0 mm 30.0 mm − 112.0 mm B-SX5T 25.4 mm − 1500.0 mm 3”/sec., 6”/sec.: 30.0 mm − 1500.0 mm B-SX4T 38.0 mm − 1500.0 mm 3”/sec., 6”/sec.: 38.0 mm − 1500.0 mm...

  • Page 50: Pcmcia Interface Board: B-9700-Pcm-Qm/Qm-R

    Flash Memory Card (1 MB) Mitsubishi MF81M1-GBDAT01 NOTE: Reading a read-only-type flash memory is possible if it has been used on the TOSHIBA TEC printer, such as B-472 and B-572. 3.6 EXPANSION I/O INTERFACE BOARD: B-7704-IO-QM/QM-R (option for the B-SX4T) This interface board is used to connect the printer to external devices, such as a labeler.

  • Page 51: Rfid Module: B-9704-Rfid-U1-Us/U1-Eu/U1-Eu-R/H1-Qm/H1-Qm-R

    NOTE: 1) Non-RoHS type An RFID module can be installed on an RFID-ready B-SX4T or B-SX5T printer only. (Serial No. 2604Wxxxxxx or later) Also, an RFID module is supported by firmware version V3.1 or greater (Main program) and V1.1A or V2.0A (Boot program).

  • Page 52: Rfid Module: B-Sx704-Rfid-U2-Eu/Au/Us/Cn-R

    B-SX4T-GS20-QM/CN-R and B-SX5T-TS22-QM/CN-R, RFID ready printer. An RFID Ready printer can be identified by the model name sticker on the front of the printer. Be careful not to install this product in the B-SX4T-GS10-QQ/QQ-US, B-SX5T-TS10-QQ/QQ-US, B-SX4T-GS10-CN and B-SX5T-TS12-CN RFID Ready printers.
  • Page 53 US (Serial Number 2808Yxxxxxx and earlier): TOSHIBA TEC TRW-USM-01 for U.S.A. and Canada Module US (Serial Number 2809Axxxxxx or earlier): TOSHIBA TEC TRW-USM-01 for U.S.A., Canada, Australia, South Korea, Taiwan CN: TOSHIBA TEC TRW-CNM-01 for CHina EU: ETSI EN 300 220 AU: C-Tick AS.NZS 428(2003);...
  • Page 54 3. OPTIONAL KIT EO10-33013B (Revision Date: Apr. 24, 2008) 3.11 Wireless LAN Board: B-9700-WLAN-QM-R 3.11 Wireless LAN Board: B-9700-WLAN-QM-R Hardware Specification Item Specification Wired LAN part Connected to a wired LAN port of the printer. Wireless IEEE802.11a Transfer mode Conforming to IEEE802.11a part Orthogonal Frequency-Division...
  • Page 55 3. OPTIONAL KIT EO10-33013B (Revision Date: Apr. 24, 2008) 3.11 Wireless LAN Board: B-9700-WLAN-QM-R Country code As available frequency bands are different from country to country, be sure to set a country code before installing a wireless LAN module in a user’s printer. Also, ask an end user to confirm a country code.
  • Page 56 3. OPTIONAL KIT EO10-33013B (Revision Date: Apr. 24, 2008) 3.11 Wireless LAN Board: B-9700-WLAN-QM-R NOTE: MAC address can be checked by using “arp -a” command on MS-DOS Prompt. <Example> The following screen shows an example of executing an arp –a command on MS-DOS Prompt. After wireless LAN board (default IP address: 192.168.10.21) is pinged, IP address and MAC address are displayed.
  • Page 57 3. OPTIONAL KIT EO10-33013B (Revision Date: Apr. 24, 2008) 3.11 Wireless LAN Board: B-9700-WLAN-QM-R <Downloading the firmware> Status LAN status LED1 Blink at the same Firmware is being overwritten. LED2 time LED3 <Error> Status LAN status LED2 Blink Wired LAN error LED3 Blink Wireless LAN error...
