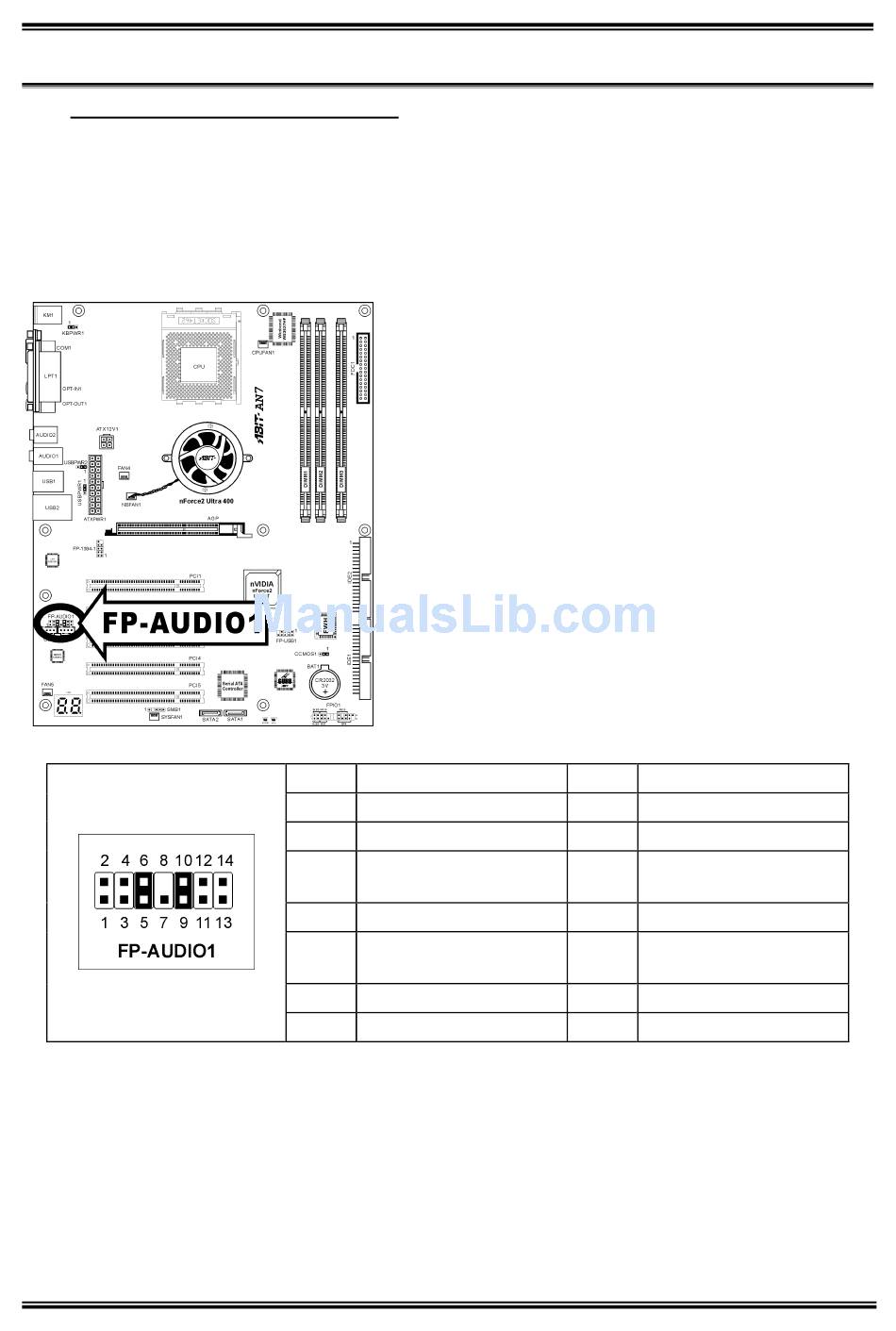

(8). Front Panel Audio Connection Header

This header provides the connection to audio connector at front panel.
•
To use the audio connector at front panel, remove all the jumpers on this header, and then
connect to front panel by the extension cable provided with the chassis.
•
To use the audio connector at rear panel, disconnect the extension cable, attach the jumpers back
at pin 5-6, and pin 9-10 (default setting).
Pin Pin Assignment
1 Audio Mic.
3 Audio Mic. Bias
Speaker Out Right
5
Channel
7 X
Speaker Out Left
9
Channel
11 Ground
13 VCC
Pin Pin Assignment
2 Ground
4 VCC
Speaker Out Right
6
Channel Return
8 NC
Speaker Out Left
10
Channel Return
12 S/PDIF In
14 S/PDIF Out
