Summary of Contents for Sundown Audio SAX-125.4

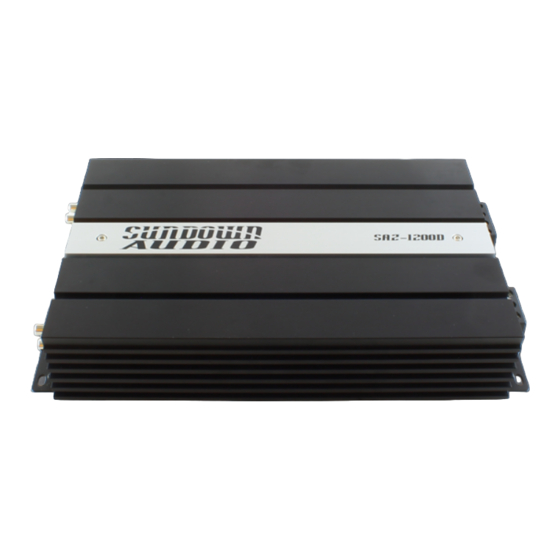

- Page 2 Digital class-D linkable/dual mono block amplifier 9 dB/oct, variable bass boost Dual MOS-FET PWM power supply 180 Variable phase shift Stable into 1 ohm load 4 ways protection circuit 24 dB/oct, variable low pass filter (thermal, voltage, speaker short and DC) 24 dB/oct, variable subsonic filter Wired remote control included Rated power output...
- Page 3 (thermal, voltage, speaker short and DC) 12 dB/oct, variable high pass filter Wired remote control included Rated power output ( Tested voltage 14.4Volts ) SAX-125.4 - RMS power, 4ohm mono 400W x 2CH - RMS power, 2ohm mono 200W x 4CH...
- Page 4 HEADUNIT GROUND BATTERY Caution SAZ-1500D, SAZ-2500D & SAZ-3500D are not supplied with internal fuse in themselves. Make sure you install in-line fuse holder from Positive terminal of Battery +12V Power Connect the +12V terminal of the amplifier to the POSITIVE terminal of the battery using the same diameter as the ground cable, making sure you install in-line fuse holder, approximately 300 or 400 mm.
- Page 5 HEADUNIT Wired Remote Control 8~1ohms 8~2ohms 8~2ohms...
- Page 6 Wired Remote Control...
- Page 7 HEADUNIT Remote turn on 8~2ohms Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier. When using dual amplifier to operate subwoofer, the positive terminal of the subwoofer's voice coil must be connected to the positive terminal of the MASTER Amplifier and the negative terminal of the subwoofer's voice coil must be connected to positive terminal of the SLAVE Amplifier.
- Page 8 HEADUNIT Wired Remote Control FULL RANGE DIGITAL 4CHANNEL SPEAKER CONNECTIONS SAX-125.4 3channel speaker connection mode. Tweeter Passive MidRange /Bass 8~4ohms...
- Page 9 SAX-125.4 4channel speaker connection mode. Tweeter Passive MidRange /Bass SAX-125.4 4channel speaker connection mode. Tweeter Passive MidRange /Bass 8~4ohms...
- Page 10 Please install amplifier in better ventilation and make it cool. SAZ-1200D, SAZ-1500D, SAZ-2500D & SAZ-3500D have minimum working impedance as 1ohm as single unit. Linkable connection is 2ohm. SAX-125.4 minimum working impedance is 2ohm stereo or 4ohm mono. Make sure Chassis and Remote use same GROUND DISTORTION & NOISE Please readjust amplifier input level which is printed on endplate.
