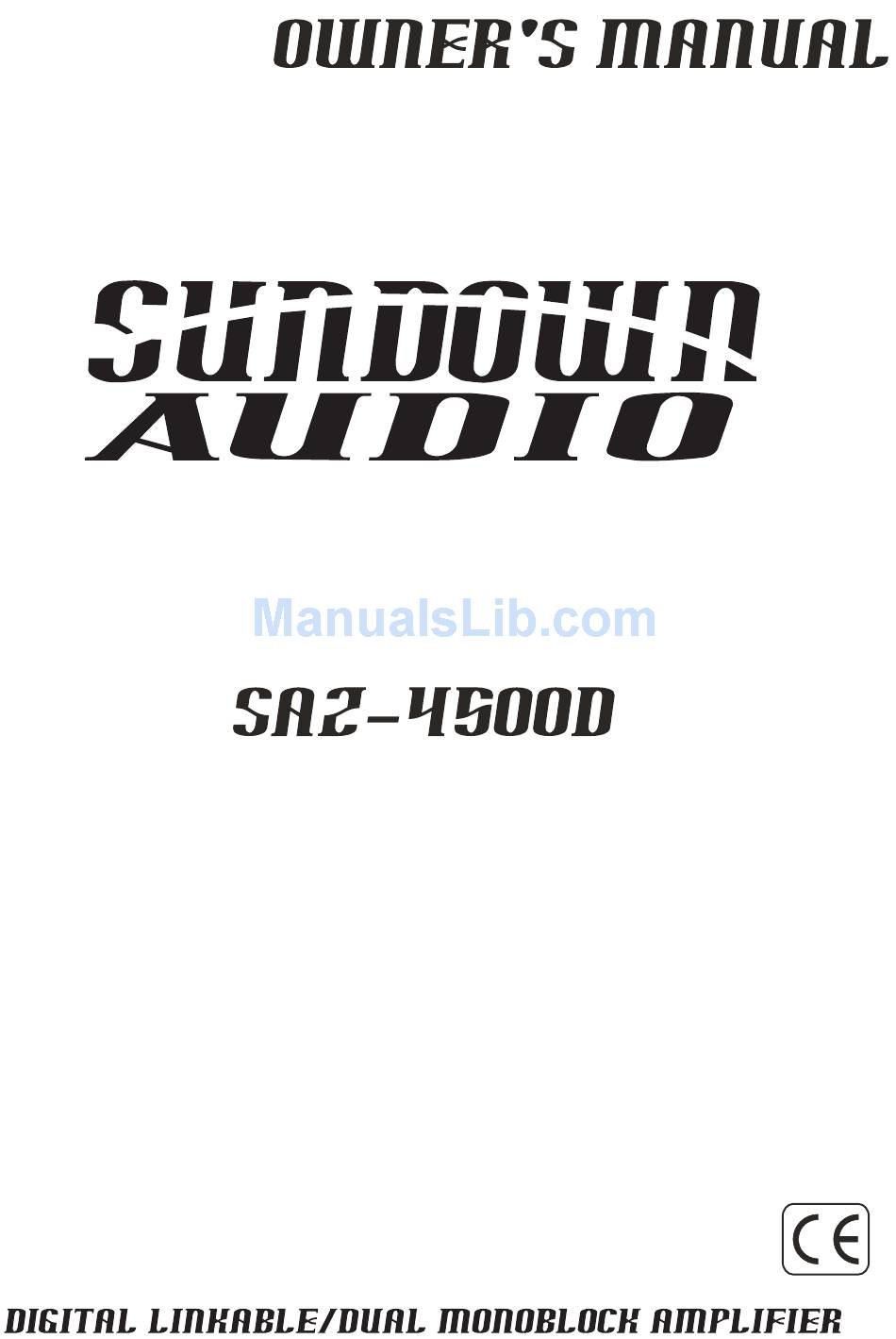

Sundown Audio SAZ-4500D Owner's Manual

Digital linkable/dual monoblock amplifier
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAZ-4500D and is the answer not in the manual?

Questions and answers

Related Manuals for Sundown Audio SAZ-4500D

Summary of Contents for Sundown Audio SAZ-4500D

  • Page 2 FEATURES Digital class-D linkable/dual mono block amplifier Dual MOS-FET PWM power supply Stable into 1 ohm mono load 24 dB/oct, variable low pass filter 24 dB/oct, variable subsonic filter SPECIFICATIONS Rated power output ( Tested voltage 12.8Volts ) -RMS power, 2 ohm linkable/dual mono ---------------- -RMS power, 1 ohm mono ---------------------------------- -RMS power, 2 ohm mono ---------------------------------- -RMS power, 4 ohm mono-----------------------------------...
  • Page 3 POWER CONNECTIONS HEAD UNIT GROUND +12V Power Connect the +12V terminal of the amplifier to the + terminal of the battery using the same diameter as the ground cable, making sure you install in-line fuse holder, approximately 300 or 400 mm. From the + terminal of battery, making sure that there is no fuse in the battery holder GROUND Disconnect the battery and connect the GND (ground) terminal to the cars chassis.
  • Page 4 RCA CONNECTION Single Amp Input Connection HEAD UNIT Wired Remote Control Dual Amp Input Connection (MASTER & SLAVE RCA Connection) "MASTER UNIT" HEAD UNIT Wired Remote Control "SLAVE UNIT"...
  • Page 5 DUAL AMP POWER AND SPEAKER CONNECTION ( Linkable ) "MASTER UNIT" HEAD UNIT GROUND "SLAVE UNIT" GROUND Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier. When using dual amplifier to operate subwoofer, the positive terminal of the subwoofer's voice coil must be connected to the positive terminal of the MASTER Amplifier and the negative terminal of the subwoofer's voice coil must be connected to positive terminal of the SLAVE Amplifier.
  • Page 6 If SAZ-4500D shuts down due to excessive heat, It will be working later when it is cooled down Before removing your amplifier, refer to the list below and follow the suggested procedures.
