- Page 1 Owner's manual SAX-125.2 SAX-50.4 SAX-100.4...
-
Page 2: Warranty
Visit us online at http://www.sundownaudio.com Your new Sundown Audio amplifier is covered by a 2 year limited warranty if purchased from an authorized Sundown Audio dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Sundown Audio. - Page 3 Features SAX-125.2 2/1 Channel Bridgeable Class-AB Amplifier MOSFET PWM Power Supply Stable Into 4 Ohms Bridged or 2 Ohms Stereo Load 12dB Octave Electronic Crossover Slope Variable Subsonic Filter High Pass Filter Variable with x 10 Range Selectable Switch Low Pass Filter Variable with x 10 Range Selectable Switch HPF/FULL/LPF Selectable Switch Variable Bass Boost Control Variable Bass-Boost Frequency Control...
-
Page 4: Specifications
Specifications SAX-125.2 Rated power output -RMS power, 4 ohm stereo ----------------------- -RMS power, 2 ohm stereo ---------------------- -RMS power, 4 ohm bridged --------------------- Signal to Noise Ratio ----------------------------------- Low Pass Crossover ----------------------------------- High Pass Crossover ----------------------------------- Variable Subsonic Filter -------------------------------- Bass Boost ------------------------------------------------- Variable Bass-Boost Frequency Control Frequency Response ------------------------------------... -
Page 5: Rca Connection
RCA Connection SAX-125.2 INPUT GAIN SUBSONIC Protection Power 0.2V 10Hz to OUTPUT of HEAD UNIT SAX-50.4 GAIN 0.2V SIGNAL INPUT Channel 1/2 Channel 3/4 0.2V GAIN SUBSONIC OUTPUT HEAD UNIT SAX-100.4 GAIN 0.2V INPUT Protection Power 0.2V GAIN OUTPUT HEAD UNIT This amplifier utilizes RCA type low-level input terminals. -
Page 6: Power Connection

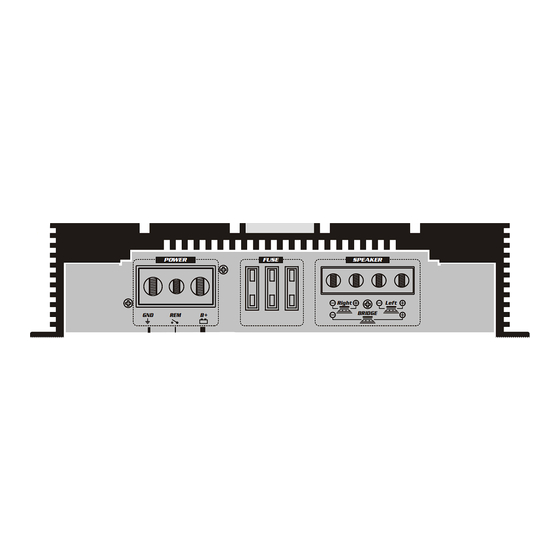

Power Connection SAX-125.2 POWER GROUND to REMOTE Turn-on from HEAD UNIT SAX-50.4 BRIDGE Left/Ch3 Left/Ch1 SPEAKER BATTERY SAX-100.4 POWER GROUND to REMOTE Turn-on from HEAD UNIT +12V Power Connect the +12V terminal of the amplifier to the + terminal of the battery using a large gauge power wire (preferably 4 gauge). -
Page 7: Speaker Connection
Speaker Connection SAX-125.2 1 Channel Bridged FUSE SPEAKER Right Left BRIDGE 2 Channel Stereo FUSE SPEAKER Right Left BRIDGE 3 Channel Tri-Mode FUSE SPEAKER Right Left BRIDGE CH1-MONO SUBWOOFER Speaker Impedance 4~8 ohms Speaker Impedance 2~8 ohms Speaker Impedance 4~8 ohms CH3-MONO SUBWOOFER... - Page 8 Speaker Connection SAX-50.4 2 Channel Bridged BRIDGE Left/Ch3 Right/Ch4 Left/Ch1 Right/Ch2 SPEAKER 4 Channel Stereo BRIDGE Left/Ch3 Right/Ch4 Left/Ch1 Right/Ch2 SPEAKER 6 Channel Tri Mode BRIDGE Left/Ch3 Right/Ch4 Left/Ch1 Right/Ch2 SPEAKER CH2-MONO SUBWOOFER Speaker Impedance FUSE CH1-MONO SUBWOOFER Speaker Impedance FUSE Speaker Impedance FUSE...
- Page 9 Speaker Connection SAX-100.4 2 Channel Bridged BRIDGE FUSE Left/Ch1 Right/Ch2 Left/Ch3 Right/Ch4 POWER 4 Channel Stereo BRIDGE FUSE Left/Ch1 Right/Ch2 Left/Ch3 Right/Ch4 POWER 6 Channel Tri Mode BRIDGE FUSE Left/Ch1 Right/Ch2 Left/Ch3 Right/Ch4 POWER CH1-MONO SUBWOOFER Speaker Impedance 4~8 ohms CH2-MONO SUBWOOFER Speaker Impedance...
-
Page 10: Troubleshooting
Trouble Shooting This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occurred problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short. - Page 11 -11-...
- Page 12 MADE IN KOREA...
