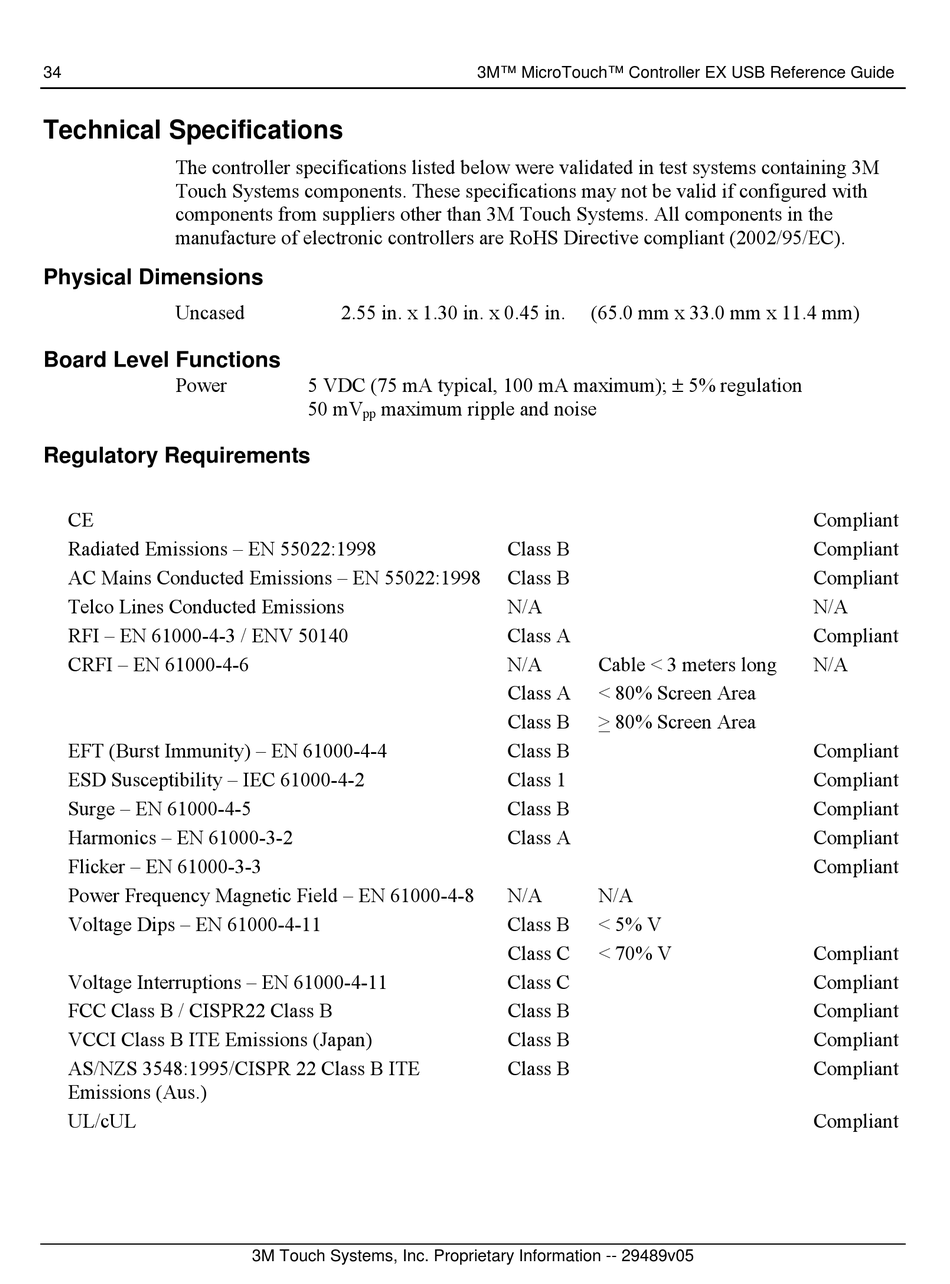

Technical Specifications

The controller specifications listed below were validated in test systems containing 3M
Touch Systems components. These specifications may not be valid if configured with
components from suppliers other than 3M Touch Systems. All components in the
manufacture of electronic controllers are RoHS Directive compliant (2002/95/EC).

Physical Dimensions

Uncased
Board Level Functions
Power
Regulatory Requirements
CE
Radiated Emissions – EN 55022:1998
AC Mains Conducted Emissions – EN 55022:1998
Telco Lines Conducted Emissions
RFI – EN 61000-4-3 / ENV 50140
CRFI – EN 61000-4-6
EFT (Burst Immunity) – EN 61000-4-4
ESD Susceptibility – IEC 61000-4-2
Surge – EN 61000-4-5
Harmonics – EN 61000-3-2
Flicker – EN 61000-3-3
Power Frequency Magnetic Field – EN 61000-4-8
Voltage Dips – EN 61000-4-11
Voltage Interruptions – EN 61000-4-11
FCC Class B / CISPR22 Class B
VCCI Class B ITE Emissions (Japan)
AS/NZS 3548:1995/CISPR 22 Class B ITE
Emissions (Aus.)
UL/cUL
2.55 in. x 1.30 in. x 0.45 in.
5 VDC (75 mA typical, 100 mA maximum);  5% regulation
50 mV maximum ripple and noise
pp
3M Touch Systems, Inc. Proprietary Information -- 29489v05
3M™ MicroTouch™ Controller EX USB Reference Guide
(65.0 mm x 33.0 mm x 11.4 mm)
Class B
Class B
N/A
Class A
N/A Cable < 3 meters long
Class A < 80% Screen Area
Class B > 80% Screen Area
Class B
Class 1
Class B
Class A
N/A N/A
Class B < 5% V
Class C < 70% V
Class C
Class B
Class B
Class B
Compliant
Compliant
Compliant
N/A
Compliant
N/A
Compliant
Compliant
Compliant
Compliant
Compliant
Compliant
Compliant
Compliant
Compliant
Compliant
Compliant
