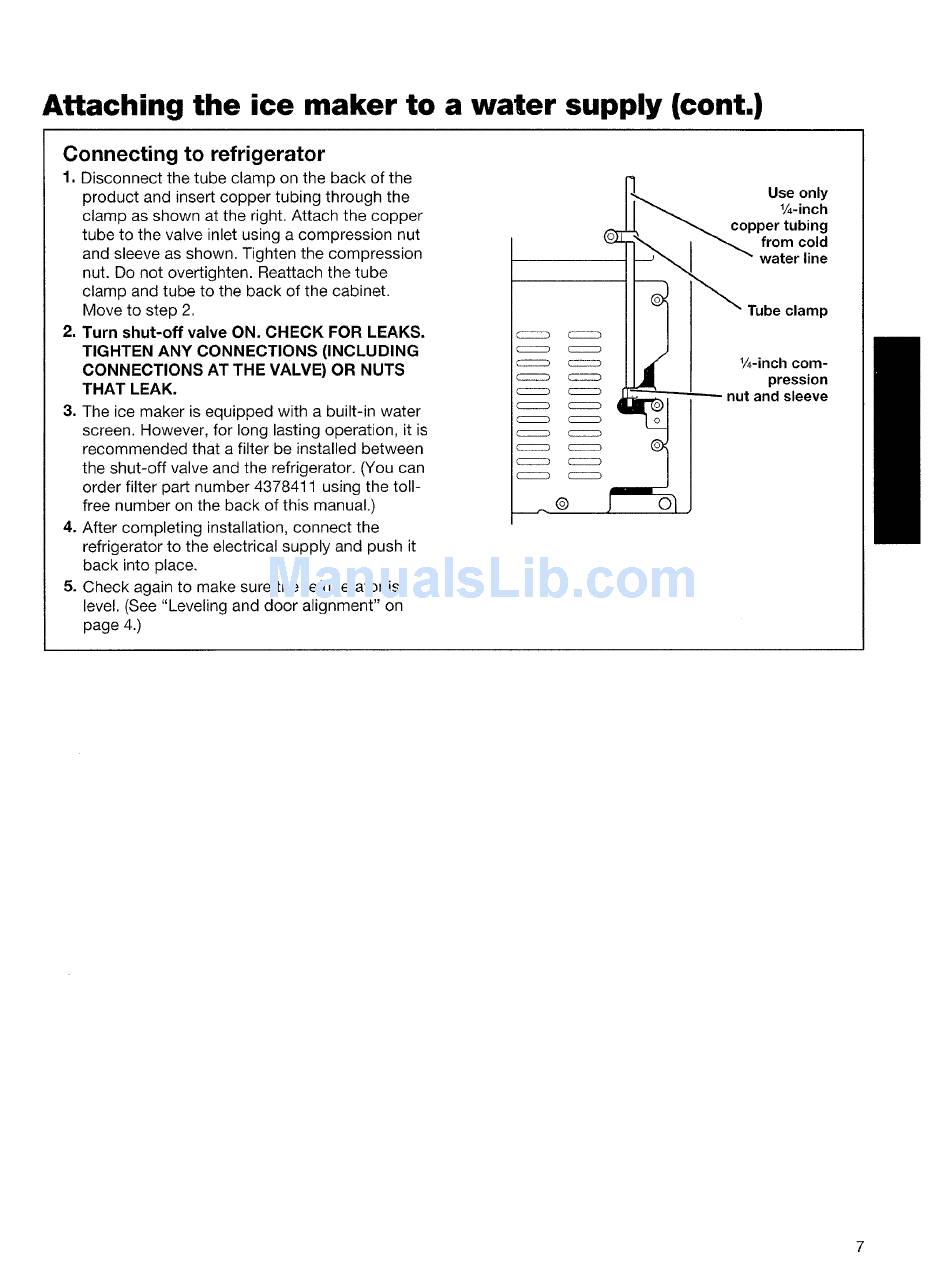

Attaching the ice maker to a water supply (cont.)
Connecting to refrigerator
1. Disconnect the tube clamp on the back of the
product and insert copper tubing through the
clamp as shown at the right. Attach the copper
tube to the valve inlet using a compression nut
and sleeve as shown. Tighten the compression
nut. Do not overtighten. Reattach the tube
clamp and tube to the back of the cabinet.
Move to step 2.
2. Turn shut-off valve ON. CHECK FOR LEAKS.
TIGHTEN ANY CONNECTIONS (INCLUDING
CONNECTIONS AT THE VALVE) OR NUTS
THAT LEAK.
3. The ice maker is equipped with a built-in water
screen. However, for long lasting operation, it is
recommended that a filter be installed between
the shut-off valve and the refrigerator. (You can
order filter part number 4378411 using the toll-
free number on the back of this manual.)
4. After completing installation, connect the
refrigerator to the electrical supply and push it
back into place.
5. Check again to make sure the refrigerator is
level. (See "Leveling and door alignment" on
page 4.)
C:ZZZZC3
CCCZCD
CCZCZD CCZZZD
CZCCZD
CZZCD CCCCC)
CZZC:Z) CCCZZD
CCCZD CZZZZZ3
CCCC_
Use only
1/4-inch
copper tubing
from cold
water line
Tube clamp
1/4-inch com-
pression
nut and sleeve
