3M Dynapro ET 355 Monitor HL Installation Manual

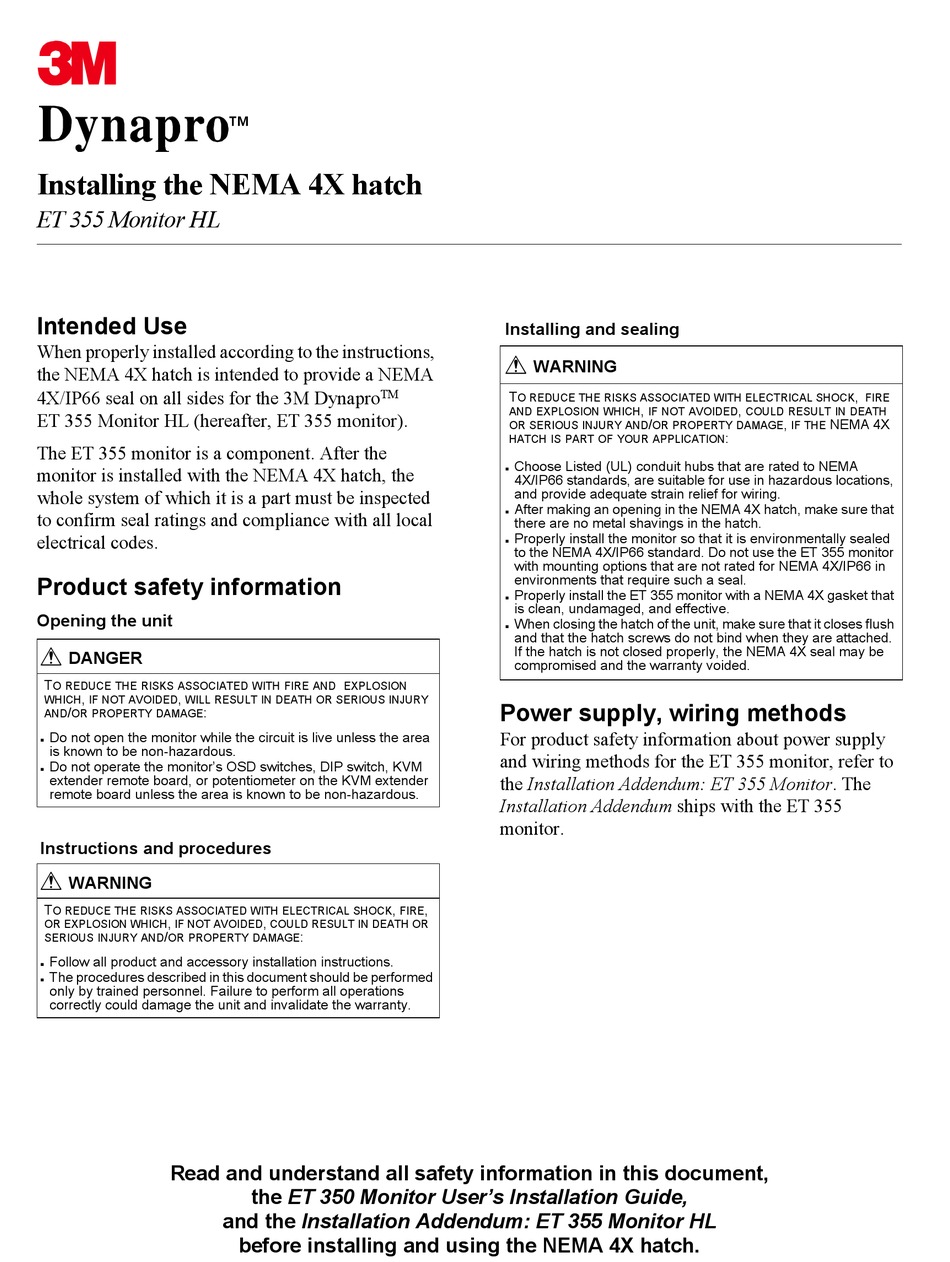

Installing the NEMA 4X hatch
ET 355 Monitor HL

Intended Use

When properly installed according to the instructions,
the NEMA 4X hatch is intended to provide a NEMA
4X/IP66 seal on all sides for the 3M Dynapro
ET 355 Monitor HL (hereafter, ET 355 monitor).
The ET 355 monitor is a component. After the
monitor is installed with the NEMA 4X hatch, the
whole system of which it is a part must be inspected
to confirm seal ratings and compliance with all local
electrical codes.

Product safety information

Opening the unit

DANGER
T
O REDUCE THE RISKS ASSOCIATED WITH FIRE AND EXPLOSION
, ,
WHICH IF NOT AVOIDED WILL RESULT IN DEATH OR SERIOUS INJURY
/ :
AND OR PROPERTY DAMAGE
Do not open the monitor while the circuit is live unless the area
!
is known to be non-hazardous.
Do not operate the monitor's OSD switches, DIP switch, KVM
!
extender remote board, or potentiometer on the KVM extender
remote board unless the area is known to be non-hazardous.

Instructions and procedures

WARNING
T
O REDUCE THE RISKS ASSOCIATED WITH ELECTRICAL SHOCK
,
OR EXPLOSION WHICH IF NOT AVOIDED
/
SERIOUS INJURY AND OR PROPERTY DAMAGE
Follow all product and accessory installation instructions.
!
The procedures described in this document should be performed
!
only by trained personnel. Failure to perform all operations
correctly could damage the unit and invalidate the warranty.
Read and understand all safety information in this document,
TM
,
FIRE
,
COULD RESULT IN DEATH OR
:
the ET 350 Monitor User's Installation Guide,
and the Installation Addendum: ET 355 Monitor HL
before installing and using the NEMA 4X hatch.

Installing and sealing

WARNING
T
O REDUCE THE RISKS ASSOCIATED WITH ELECTRICAL SHOCK
AND EXPLOSION WHICH
OR SERIOUS INJURY AND
HATCH IS PART OF YOUR APPLICATION
Choose Listed (UL) conduit hubs that are rated to NEMA
!
4X/IP66 standards, are suitable for use in hazardous locations,
and provide adequate strain relief for wiring.
After making an opening in the NEMA 4X hatch, make sure that
!
there are no metal shavings in the hatch.
Properly install the monitor so that it is environmentally sealed
!
to the NEMA 4X/IP66 standard. Do not use the ET 355 monitor
with mounting options that are not rated for NEMA 4X/IP66 in
environments that require such a seal.
Properly install the ET 355 monitor with a NEMA 4X gasket that
!
is clean, undamaged, and effective.
When closing the hatch of the unit, make sure that it closes flush
!
and that the hatch screws do not bind when they are attached.
If the hatch is not closed properly, the NEMA 4X seal may be
compromised and the warranty voided.

Power supply, wiring methods

For product safety information about power supply
and wiring methods for the ET 355 monitor, refer to
the Installation Addendum: ET 355 Monitor. The
Installation Addendum ships with the ET 355
monitor.
,
, ,
IF NOT AVOIDED COULD RESULT IN DEATH
/ ,
OR PROPERTY DAMAGE IF THE
:
,
FIRE
NEMA 4X
