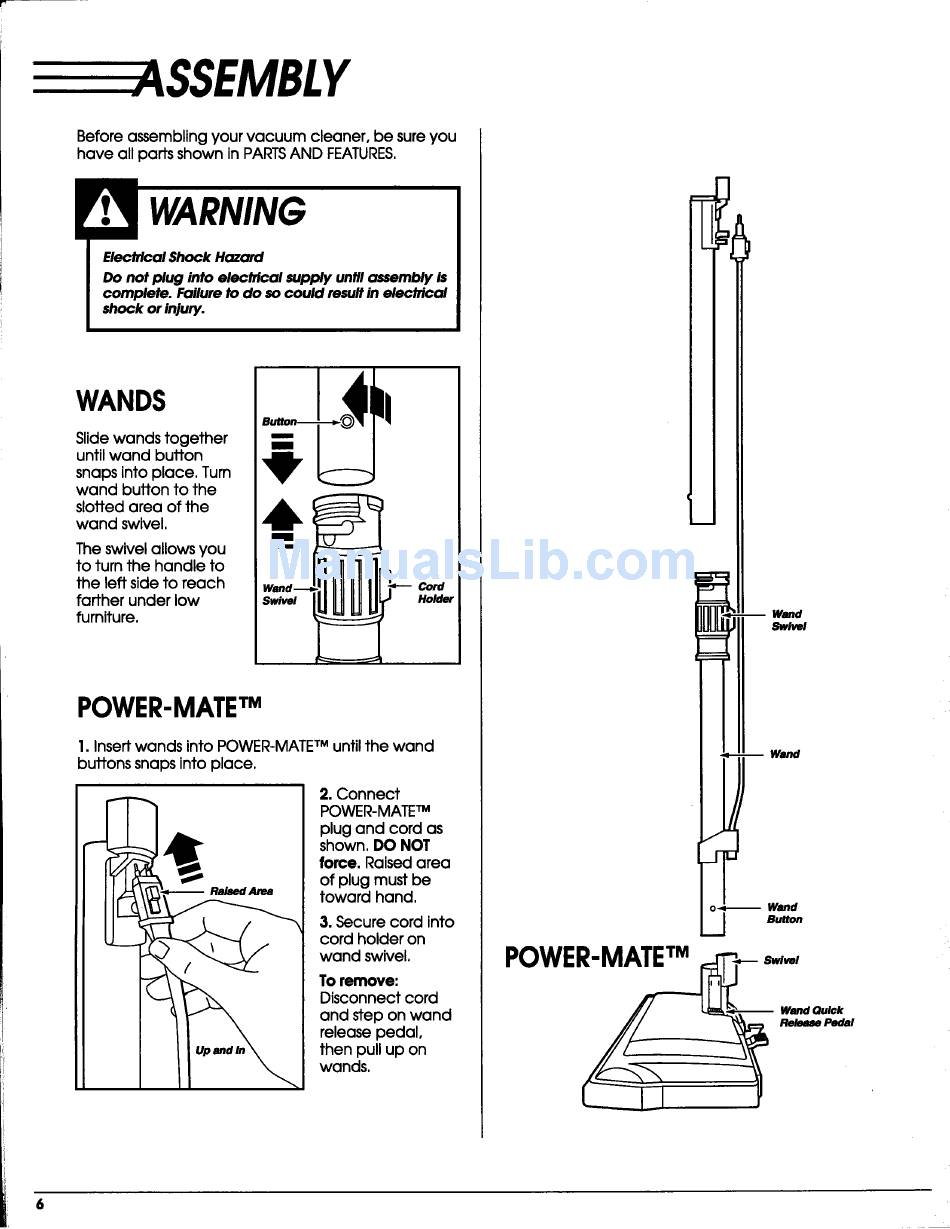

----ASSEMBLY
Before assembling your vacuum cleaner, be sure you
have all parts shown in PARTSAND FEATURES,
Elecfrlcal Shock Hazard
Do not plug into electrical supply until assembly is
complete. Failure to do so could resultin electrical
shock or injury.
WANDS
Slide wands together
until w and button
snaps intoplace,Turn
wand buttonto the
slotted area of the
wand swivel.
The swivel allowsyou
to turnthe handle to
the left s ideto reach
farther under low
furniture.
Cord
Holder
POWER-MATE"rM
I.Insert wands intoPOWER-MATE TM until the wand
buttonssnaps intoplace.
2. Connect
POWER-MATE TM
plugand cord as
shown, DO NOT
force. Raisedarea
of plug must be
toward hand.
3. Secure cord into
cord holder on
wand swivel.
To remove:
Disconnect cord
and step on wand
release pedal,
then pull up on
wands,
Wand
Swivel
-,- -- Wand
/,
J
o_ Wand
._J Button
