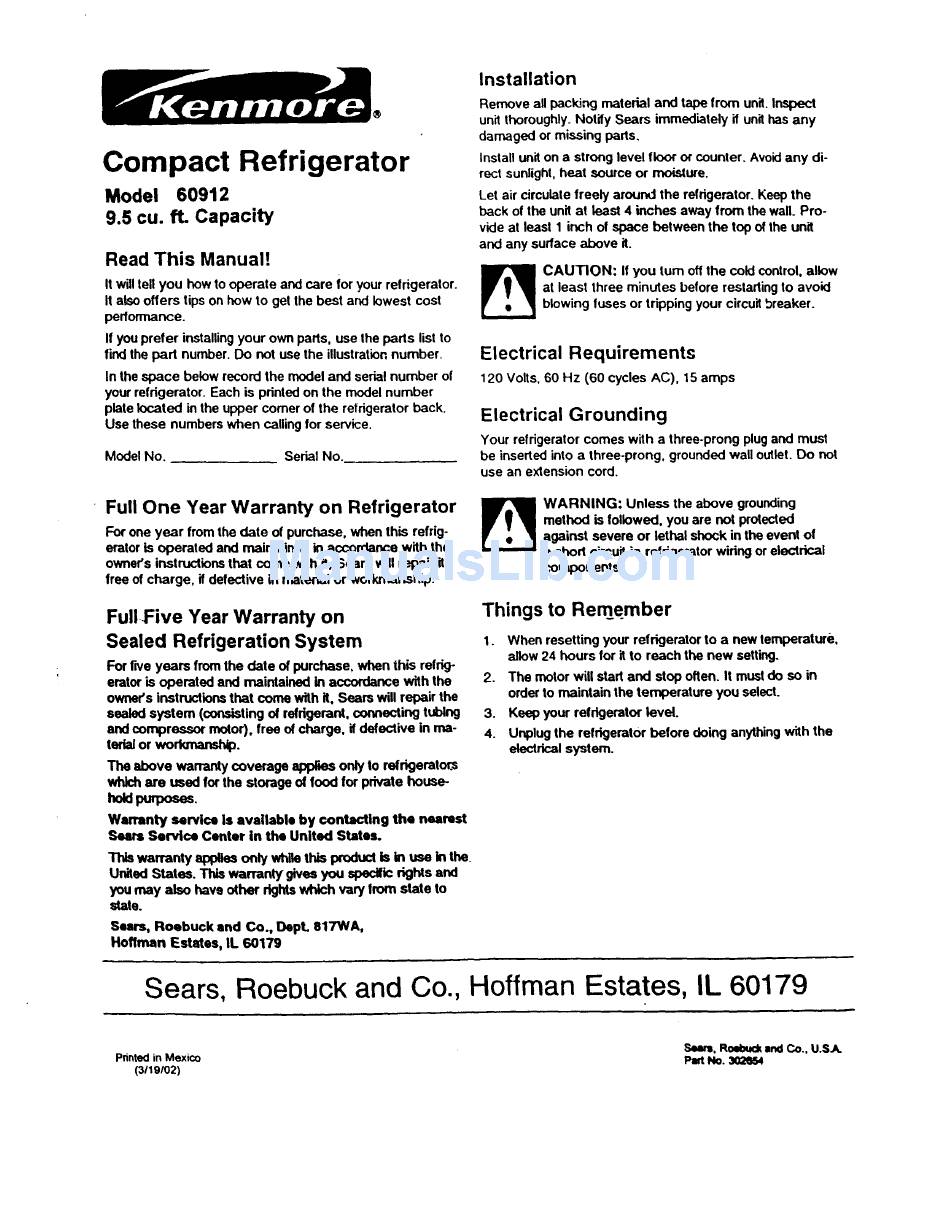

Compact Refrigerator
Model
60912
9,5 cu. ft. Capacity
Read This Manual!
It will tell you how to operate and care for yourrefrigerator.
it also offers tipson how to gel the best and lowest cost
performance.
If you prefer installingyour own parts, use the parts list to
find the part number. Do not use the illustrationnumber.
In the space below record the model and serial number of
your refrigerator. Each is printed on the model number
plate located in the upper comer of the refrigerator back.
Use these numbers when calling for service.
Model No.
Serial No.
Installation
Remove all pacld,-_jmaterial and tape from unit, Inspect
unit thoroughly. Notify Sears immediately if unit has any
damaged or missing parts.
Install unit on a strong level floor or counter. Avoidany di-
rect sunlight,heat source or moisture.
Let air circulate freely around the refrigerator. Keep the
back of the unit at least 4 inches away from the wall. Pro-
vide at least 1 inch of space between the top of the unit
and any surface above it.
_
AUTION:
If you turn off the cold control, allow
at least three minutes before restarting to avoid
blowing fuses or tripping your circuit breaker.
Electrical
Requirements
120 Volts, 60 Hz (60 cycles AC), 15 amps
Electrical
Grounding
Your refrigerator comes with a three-prong plugand must
be inserted into a three-prong, grounded wall outlet. Do not
use an extension cord.
Full One Year Warranty
on Refrigerator
For one year from the date of purchase, when this refrig-
erator is operated and maintained in accordance with the
owner's instructionsthat come with if, Sears will repair it,
free of charge, if defective in material or workmanship.
FulIFive
Year Warranty
on
Sealed Refrigeration
System
For five years from the date of purchase, when this refrig-
erator is operated and maintained in accordance with the
owner's instructionsthat come with it, Sears will repair the
sealed system (consisting of refrigerant,connecting tubing
and compressor motor), free of charge, if defective in me-
terfal or workm_.
The above warranty coverage app&_ only to refdgerato_
whichare used for the storage of food for private house-
hold purposes.
Wmmnty service Is available by contacting the nearest
Sears Service Center in the United States.
Thiswarrantyapplies onlywhilethisproduct i s in use in the
UnitedStates.Thiswarrantygivesyou specific rightsand
youmay also haveotherrights whichvaryIromstate to
state.
Sears, Roebuck end Co., Dept. 817WA,
Hoffman Estates, IL 60179
_
ARNING:
Unless the above grounding
method is followed, you are not protected
against severe or lethal shock in the event of
a short circuit in refrigerator wiring or electrical
components.
Things to Remember
1.
When resetting your refrigerator to a new temperature,
allow 24 hours for it to reach the new setting.
2.
The motor will start and stop often. It must do so in
order to maintain the temperature
you select.
3.
Keep your refrigerator level.
4.
Unplug the refrigerator before doing anything with the
electrical system.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears, RoJ_ck and Co., U.S.A.
Printedin Mexico
PINt No. 302(154
(3/19/02)
