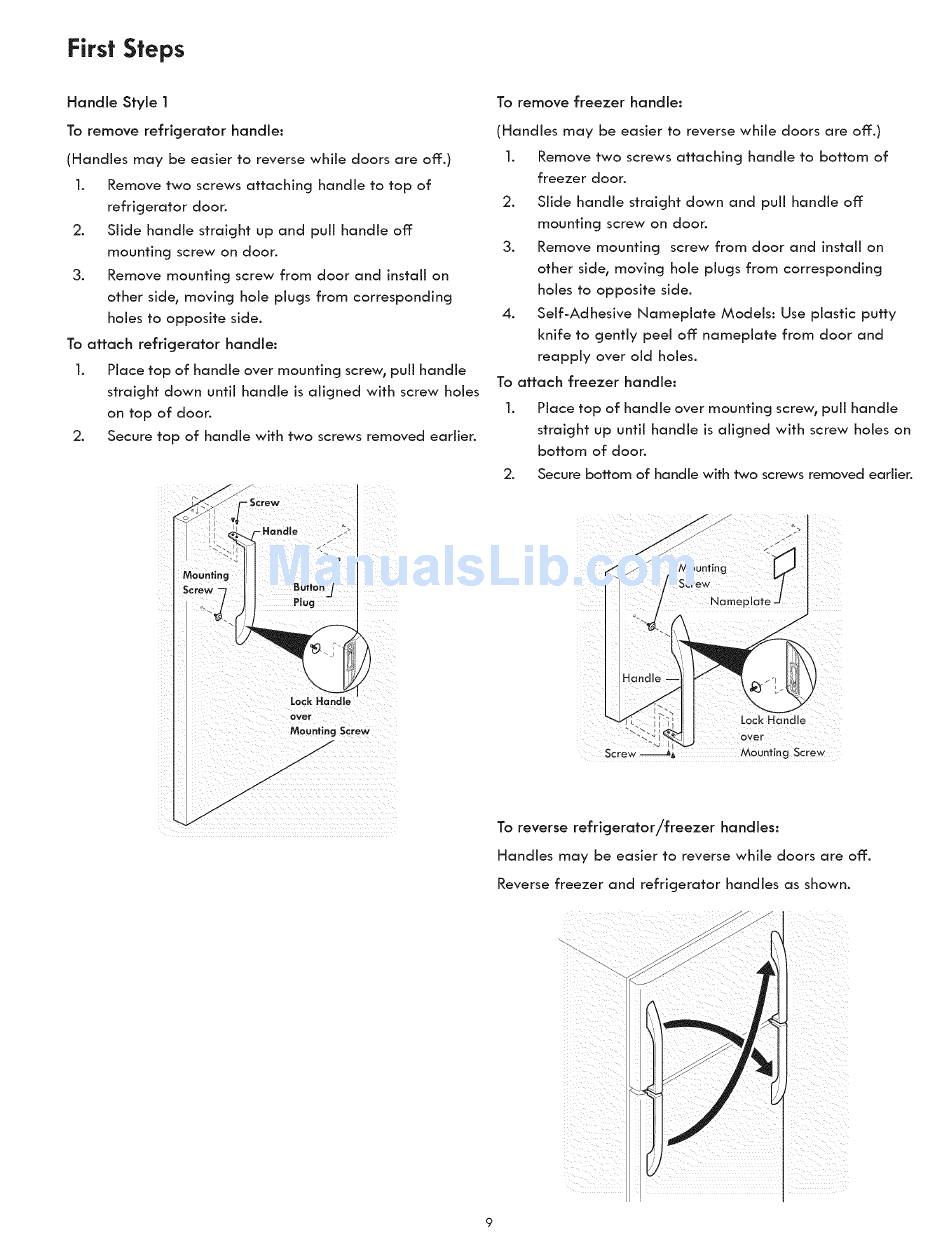

First Steps
Handle
Style ]
To remove refrigerator
handle:
(Handles
may be easier to reverse while doors are off:.)
1.
Remove two screws attaching
handle to top of
refrigerator
door.
2.
Slide handle
straight
up and pull handle
off:
mounting
screw on door.
3.
Remove mounting
screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite
side.
To attach
refrigerator
handle:
1.
Place top of handle over mounting
screw, pull handle
straight
down until handle is aligned
with screw holes
on top of door.
2.
Secure top of handle with two screws removed earlier.
To remove freezer
handle:
(Handles
may be easier to reverse while doors are off:.)
1.
Remove two screws attaching
handle to bottom
of
freezer door.
2.
Slide handle straight
down and pull handle off:
mounting
screw on door.
3.
Remove mounting
screw from door and install on
other side, moving
hole plugs from corresponding
holes to opposite
side.
4.
Self-Adhesive
Nameplate
Models:
Use plastic putty
knife to gently
peel off: nameplate
from door and
reapply
over old holes.
To attach
freezer
handle:
1.
Place top of handle over mounting
screw, pull handle
straight
up until handle is aligned
with screw holes on
bottom
of door.
2.
Secure bottom of handle with two screws removed earlier.
z
7
/"
J
Mounting
/
Screw
/
Screw
----_
Lock Handle
Mounting
Screw
To reverse refrigerator/freezer
handles:
Handles
may be easier to reverse while doors are off:.
Reverse freezer and refrigerator
handles as shown.
