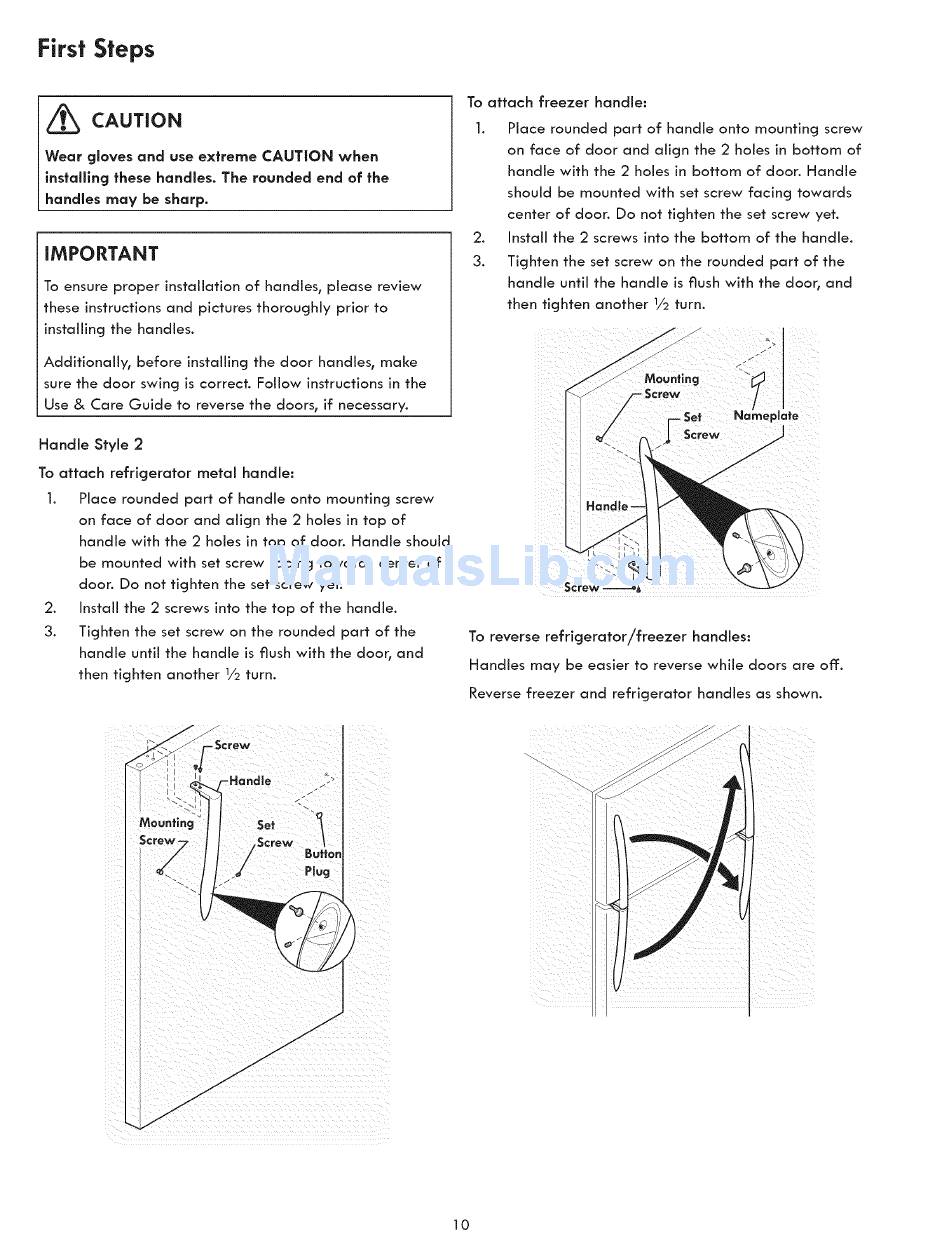

First Steps
_
CAUTION
Wear gloves and use extreme CAUTION
when
insfalllng these handles. The rounded end of the
handles may be sharp.
IMPORTANT
To ensure proper installation of handies_ please review
these instructions
and pictures thoroughly
prior to
installing
the handles.
Additionally,
before installing the door handles,
make
sure the door swing is correct.
Follow instructions
in the
Use & Care Guide
to reverse the doors° if necessary.
Handle
Style 2
To attach
refrigerator
metal handle:
1.
Place rounded
part of handle onto mounting
screw
on face of door and align the 2 holes in top of
handle with the 2 holes in top of door. Handle
should
be mounted
with set screw facing
towards
center of
door. Do not tighten
the set screw yet.
2.
Install the 2 screws into the top of the handle.
3.
Tighten the set screw on the rounded
part of the
handle until the handle is flush with the door° and
then tighten
another
1/2 turn.
To attach
freezer
handle:
1.
Place rounded
part of handle onto mounting
screw
on face of door and align the 2 holes in bottom
of
handle with the 2 holes in bottom
of door. Handle
should be mounted
with set screw facing
towards
center of door. Do not tighten the set screw yet.
2.
Install the 2 screws into the bottom
of the handle.
3.
Tighten the set screw on the rounded
part of the
handle
until the handle
is flush with the door_ and
then tighten another
1/2 turn.
To reverse refrigerator/freezer
handles:
Handles may be easier to reverse while doors are off:.
Reverse freezer and refrigerator
handles as shown.
_j,f
10
