Summary of Contents for Kuppersbusch EMWK 1050.1E-US
-
Page 1: Instruction Manual
Instruction Manual EMWK1050.1E-US... - Page 3 The Speed Oven EMWK1050.1E-US complies with Part 18 of the FCC rules. The responsible vendor is: Dear Customer: Küppersbusch USA Before going any further, we want to thank 1883 Massaro Blvd you for preferring our product. We are sure that this modern, functional and practical Tampa, FL 33619 microwave oven, manufactured with top Tel 1- 800 –...
-
Page 4: Table Of Contents
Contents Installation instructions ....................3 Grounding Instructions ....................4 Important safety instructions ..................5 Precautions to avoid possible exposure to excessive Microwave energy ..... 7 The advantages of microwaves ................10 Description of your oven ..................11 Basic controls ......................12 Basic Functions ...................... -
Page 5: Installation Instructions
Installation instructions Before installation After installation Check that the input voltage indicated on the The oven is equipped with a power cable and a characteristics plate is the same as the voltage plug for single phase current. of the power outlet you are going to use. If the oven is to be installed on a permanent Open the oven door and take out all the basis it should be installed by a qualified... -
Page 6: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. In the Consult qualified electrician event electrical short circuit, serviceman if the grounding instructions grounding reduces the risk of electric are not completely understood, or if doubt shock by providing an escape wire for the exists as to whether the appliance is electric current. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: Warning! To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: Read all instructions before using the Do not operate this appliance if it is has appliance. -
Page 8: Save These Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire in the oven boiling point without appearing to be cavity: boiling. Do not overcook food. Carefully attend Visible bubbling or boiling when the appliance when paper, plastic, or other container removed from combstible materials are olaced inside microwave oven is not always present. -
Page 9: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with The oven should not be adjusted or the door open since open – door operation repaired anyone except properly result harmful exposure qualified service personnel. microwave energy. -
Page 10: Microwave Safety
Microwave safety Warning! Never leave the oven unwatched, Beware! especially when using paper, plastic or Never heat baby foods or drinks in bottles other combustible materials. These or jars with the teats or lids on them. After materials can char and may fire. FIRE heating the food mix or shake well so that RISK! the heat is spread evenly. - Page 11 Microwave safety Do not lean or sit on the open oven door. This oven is exclusively for domestic use! This may damage the oven, especially in Use the oven only for preparing meals. the hinge zone. The door can bear a Avoid damaging oven...
-
Page 12: The Advantages Of Microwaves
The advantages of microwaves In conventional ovens, heat radiated by Why food heats up electrical elements or gas burners slowly Most foods contain water and water molecules penetrates the food from outside to inside. On vibrate when subjected to microwaves. account of this there is a major amount of energy is wasted heating the air, the oven The friction between molecules produces heat... -

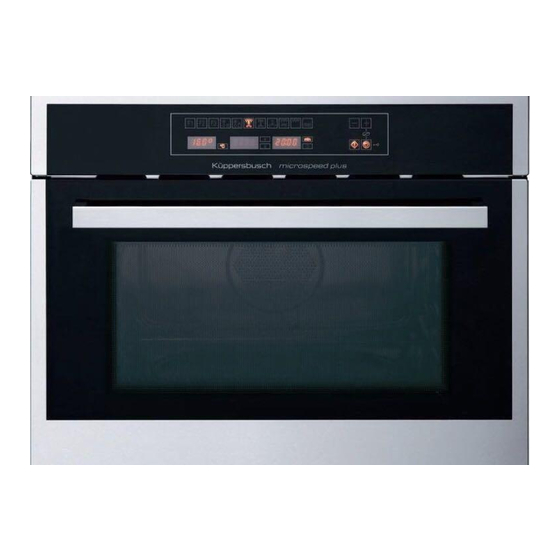

Page 13: Description Of Your Oven
Description of your oven 1. – Door window glass 8. – Lamp bulb 2. – Catches 9. – Control panel 3. – Turntable support 10. – Glass tray 4. – Turntable ring 11. – Rectangular rack 5. –Turntable plate (Don´t use with Microwaves) 12. -
Page 14: Basic Controls
Basic controls Setting the clock After your microwave oven is first plugged in 3. Press again the Clock key to set the or after a power failure, the clock display will minutes. The minute numbers will start to flash to indicate that the time shown is not flash. -
Page 15: Basic Functions
Basic Functions Stopping the rotating plate 1. To stop the rotating plate, press the “+” key 2. To start plate rotation again, press the “+” and the “Stop” key at the same time Key and the “Stop” key at the same again. Microwave oven Use this function to cook and heat vegetables, potatoes, rice, fish and meat. - Page 16 Basic Functions Microwave oven – Quick Start Use this function to rapidly heat foods with high water content, such as water, coffee, tea or thin soup. press this key the operating time will be 1. Press the Start key. The oven starts to increased by 30 seconds.
- Page 17 Basic Functions Grill Use this function to brown the top of food quickly. 3. Press key “-” and “+”, to change the function 1. Press the function key Grill. The function key lights up. time (e.g. 15 minutes). 2. Press the Time Selection key to change 4.
- Page 18 Basic Functions Hot air Use this function to bake and roast. 1. Press the function key Hot air. The 4. Press the Time Selection key to change function key lights up. the operating time. The respective light will start to flash. 2.
-
Page 19: Grill With Fan
Basic Functions Grill with Fan Use this function for crispy roast meat, fish, poultry or French fries 1. Press the function key Grill with Fan. The 4. Press the Time Selection key to change function key lights up. the operating time. The respective light will start to flash 2. - Page 20 Basic Functions Defrosting by weight (automatic) Use this function to defrost meat, poultry, fish, fruit and bread quickly. 5. Press key “-” and “+”, to change the 1. Press the function key Defrosting by weight. The function key lights up. weight.
- Page 21 Basic Functions Defrosting by time (manual) Use this function to defrost any type of food quickly. 3. Press key “-” and “+”, to change the 1. Press the function key Defrosting by time. The function key lights up. function time (e.g. 10 minutes). 2.
-
Page 22: Special Functions
Special functions Special Function F1: Heating food Use this function to heat various types of food. 1. Press the function key Special function 4. Press the Weight Selection key to define 1. The function key lights up. the food weight. The respective light will flash. - Page 23 Special functions Special Function F2: Cooking Use this function to cook fresh food. 1. Press the function key Special function 4. Press the Weight Selection key to define 2. The function key lights up. the food weight. The respective light will flash.
- Page 24 Special functions Special Function F3: Defrosting & Toasting Use this function to cook and toast various types of food. 1. Press the function key Special function 4. Press the Weight Selection key to define 3. The function key lights up. the food weight.
-
Page 25: When The Oven Is Working
When the oven is working... Interrupting a cooking cycle Cancelling a cooking cycle You can stop the cooking process at any time If you wish to cancel the cooking process, by pressing the Stop key once or by opening press the Stop key for 3 seconds. the oven door. -
Page 26: Defrosting
Defrosting The table below shows different defrosting different types and weights of food, plus and standing times (in order to ensure the recommendations. food temperature is evenly distributed) for Weight Defrosting time Standing time Food Recommendation (oz) (min) (min) 5-10 Turn once 5-10 Turn once... -
Page 27: General Instructions For Defrosting
Defrosting General instructions for defrosting 1. When defrosting, use only dishes that are 8. Place poultry on an upturned plate so that appropriate for microwaves (china, glass, the meat juices can run off more easily. suitable plastic). 9. Bread should be wrapped in a napkin so 2. -
Page 28: Cooking With A Microwave Oven
Cooking with a microwave oven Warning! Read the section “Microwave Do not close plastic bags with metal clips. Safety” before cooking with your Use plastic clips instead. Prick the bags several times so that the steam can escape microwave. easily. Follow these recommendations when cooking When heating or cooking foods, check that with your microwave:... - Page 29 Cooking with a microwave oven Cooling with microwaves... plate, you can heat up different types of food simultaneously. 1. The greater the amount of food, the longer the cooking time. Keep in mind that: 5. You can open the oven door at any time. When you do this the oven switches off Double the quantity »...
- Page 30 Cooking with a microwave oven Tables and suggestions – Cooking vegetables Standing Quantity Addition of Power Time Food Time Instructions (oz) liquids (Watt) (min.) (min.) Cauliflower 17-18 100ml 9-11 Cut into slices. Broccoli 10-11 50ml Keep covered Mushrooms 25ml Turn once Cut into chunks Peas &...
-
Page 31: Cooking With The Grill
Cooking with the grill For good results with the grill, use the grid iron 4. If the grill is used for extended period of supplied with the oven. time it is normal to find that the elements will switch themselves off temporarily due Fit the grid iron in such a way that it to the safety thermostat. - Page 32 Cooking with the Grill Tables and suggestions – Grill without microwave Fish Quantity (oz) Time (min.) Instructions Fish Bass Spread lightly with butter. After half 28-29 18-24 of cooking time turn and spread with Sardines/gurnard 6-8 fish. 15-20 seasoning. Meat Sausages Prick after half cooking time and 6-8 units...
- Page 33 Cooking with the Grill Tables and suggestions – Microwave + Grill The microwave + grill function is ideal for microwave grill work cooking quickly and, at the same time, simultaneously. The microwave cooks and the browning foods. Furthermore, you can also grill toasts.
-
Page 34: Roasting And Baking
Roasting and baking Table and advices – Preparing meat and cake Microwave / Hot air Standing Quantity Power Temperature Time Food time Instructions (oz) (Min.) (min.) Do not put lid on Roast beef 35-53 392ºF 30-40 container Turn once Pork loin / Do not put lid on Cutlet or bones 28-36... - Page 35 Roasting and baking Advice to roast - bake Advice on ovenware Turn the pieces of meat halfway through the Check that the ovenware fits inside the oven. cooking time. When the roasted meat is ready Hot glass containers should be put on a dry you should let it stand for 20 minutes in the kitchen cloth.
- Page 36 Baking Table and advices – baking/hot air Type Container Level Temperature Time (min.) Walnut cake Spring-form type tin Turntable 320 ºF 30/35 Turntable, Spring-form type tin Ø Fruit tart small round 320 ºF 35/45 28 cm grille Ring cake Spring-form type tin Turntable 320ºF 30/45...
-
Page 37: What Kind Of Ovenware Can Be Used
What kind of ovenware can be used? Microwave function Combined functions For the microwave function, keep in mind that In the combined function, the ovenware must microwaves are reflected by metal surfaces. be suitable for use in conventional heating Glass, china, clay, plastic, and paper let functions. - Page 38 What kind of ovenware can be used? Table of Ovenware The table below gives you a general idea of what type of ovenware is suitable for each situation. Microwave Operating Grill and Combined mode Hot – Air functions (with Defrosting / Cooking Type of function...
-
Page 39: Oven Cleaning And Maintenance
Oven Cleaning and Maintenance Cleaning is the only maintenance normally Oven interior required. After each time the oven is used, clean the Warning! Your microwave oven should be inside walls with a damp cloth since this is the cleaned regularly, with all food remains being easiest way to remove splashes or spots of removed. -
Page 40: Oven Ceiling
Oven Cleaning and Maintenance The mica cover (3) located in the ceiling Oven ceiling must always be kept clean. Any food If the oven ceiling is dirty, the grill can be remains that collect on the mica cover can lowered to make cleaning easier. cause damage or provoke sparks. -
Page 41: What Should I Do If The Oven Doesn't Work
What should I do if the oven doesn’t work? The food doesn’t heat up or heats very WARNING! Any type of repair must only be slowly! Check if: done by a specialised technician. Any repair done by a person not authorised by - You have inadvertently used... -
Page 42: Substitution Of Light Bulb
What should I do if the oven doesn’t work? because you may damage the bulb. Substitution of light bulb Follow lamp manufacturer’s To substitute the light bulb, proceed as instructions. follows: - Screw the glass light cover into place (1). - Disconnect the oven from the power - Connect the oven again to the power supply. -
Page 43: Technical Characteristics
Technical characteristics Description of Functions Microwave Symbol Function Foods Power Output Slow defrosting for delicate foods; keeping food hot. 200 W Cooking with little heat; boiling rice. 400 W Rapid defrosting, heating baby food. Heating and cooking food. 600 W Microwave Cooking vegetables and food. -
Page 44: Installation
Installation Push oven completely into the cabinet and centre it. Open microwave door and fasten the appliance to the cabinet using the four screws provided. Insert the screws through the front holes. - Page 48 Küppersbusch USA 1883 Massaro Blvd Tampa, FL 33619 Tel 1- 800 – 459 – 0844 Fax 1 – 813 – 2888604 Cód: 1630051-b...
