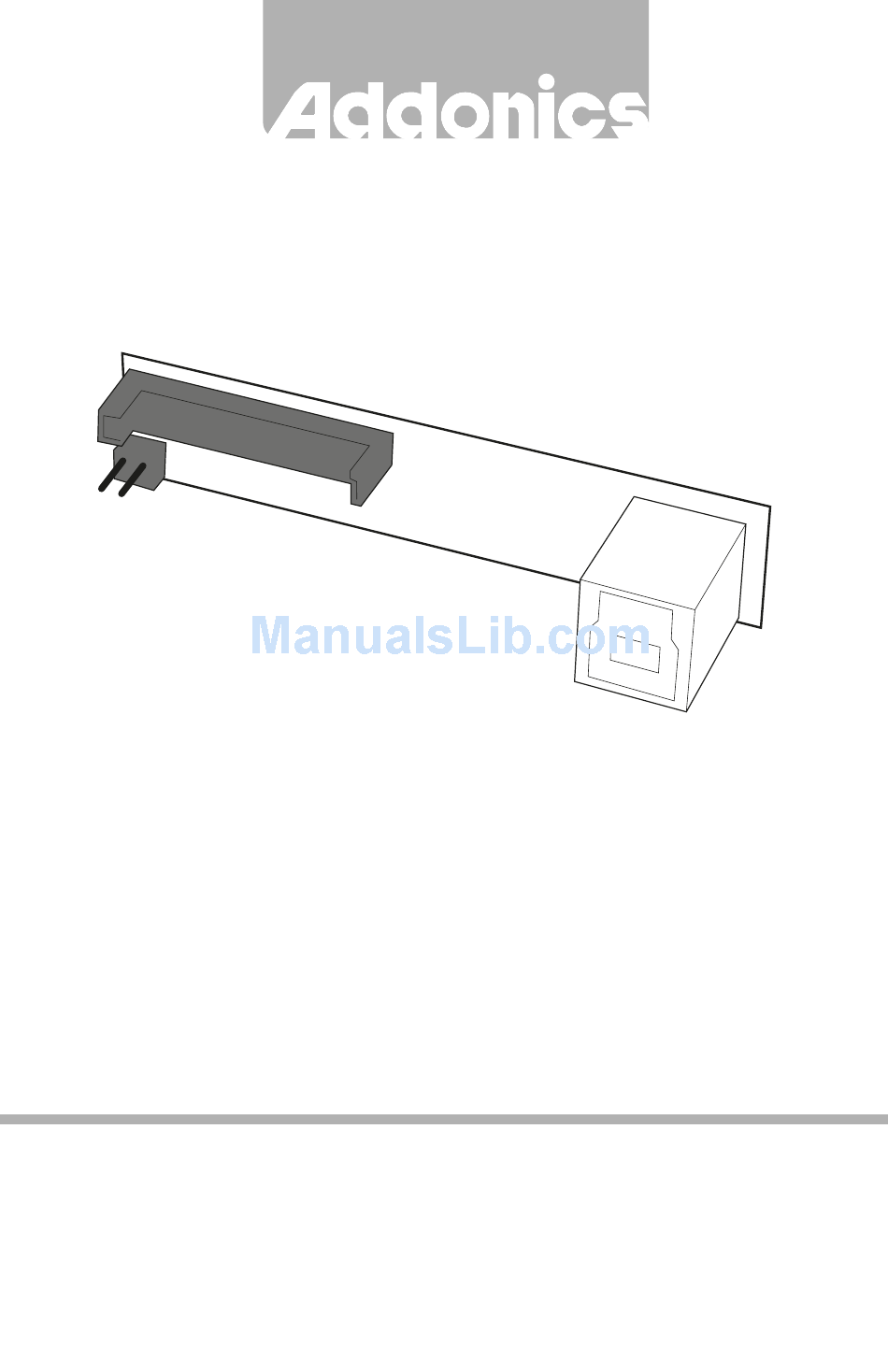

T E C H N O L O G I E S
User Guide
SATA to USB 3.0 Converter
(ADSAU3)
www.addonics.com
v7.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Related Manuals for Addonics Technologies ADSAU3
Summary of Contents for Addonics Technologies ADSAU3
- Page 1 T E C H N O L O G I E S User Guide SATA to USB 3.0 Converter (ADSAU3) www.addonics.com v7.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
-
Page 2: Installation Instructions
15-Pin SATA Power Plug Connected to Power Supply Drive Activity LED connector USB 3.0 Receptacle SATA Hard Drive Power and Data Connector Installation Instructions Locate the SATA connector of your SATA drive. 15-pin SATA Power & 7-pin Data Connector Connect the converter board to the SATA connector of the hard drive. Using the 15-pin SATA power connector from the power supply, connect it to the power connector on the converter.
