T E C H N O L O G I E S
AAESP1235MK
H y b
r i d e
S A T A
1 2 V
eSATAp Port
Installation:
1.
Mount the Hybrid Port converter on a 3.5" drive bay.
2.
To provide power, connect a 4-pin floppy power cable from the power
supply to the 4-pin floppy power connector on the converter.
3.
Using a SATA data cable, connect one end to an onboard or add-in SATA
controller card to the SATA port of the Hybrid Port converter.
Note: For the Hybrid Port converter to support hot swapping, it needs to be
connected to an onboard or add-in SATA controller card that supports hot
swapping.
4.
Connect one end of the USB 5-pin header cable to the motherboard and
the other end to the Hybrid Port converter.
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
e S A
T A p
5 V

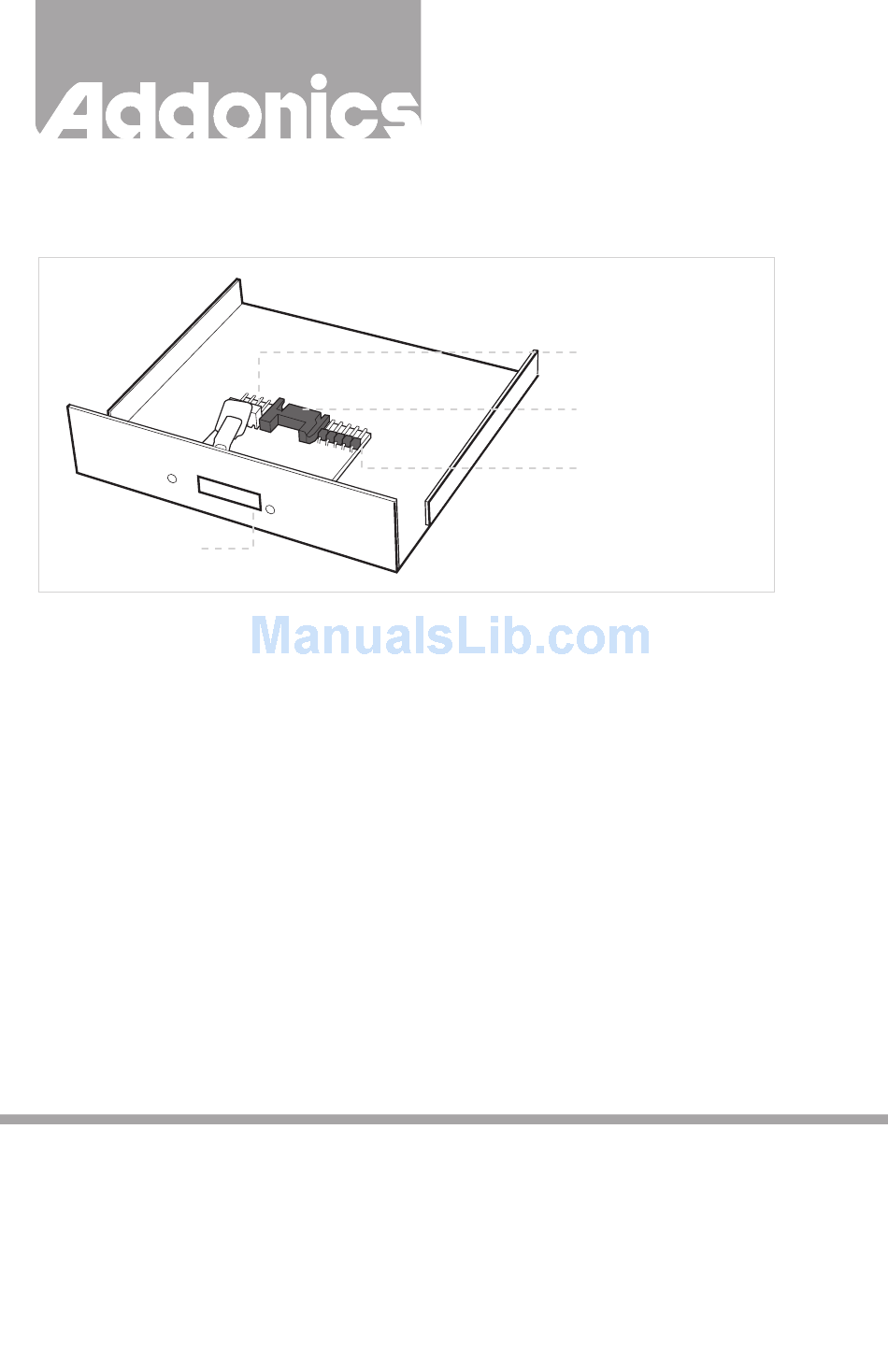

User Guide
12V Hybrid Port Converter
(AAESP1235MK)
(AAESP12SPCI)
4-pin Floppy
Power Connector
SATA Port
USB 5-pin Header
v3.1.11
