T E C H N O L O G I E S

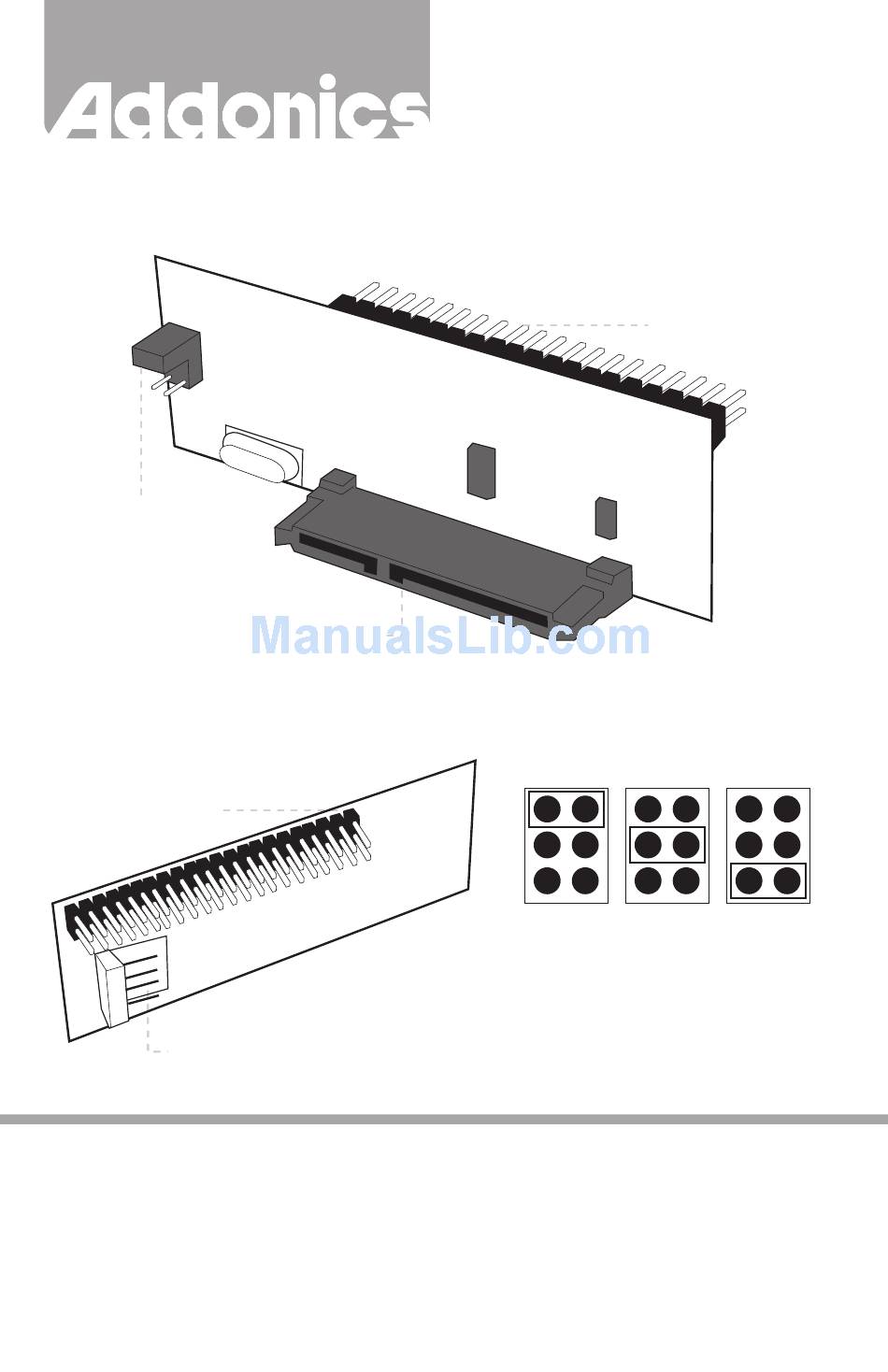

Front View
Master, Slave & Cable
Select Jumpers
SATA Power and Data Connector
Back View
Pin 1 Marker
4-Pin Floppy Power Connector
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/

User Guide

SATA - IDE Converter
(ADSAIDE)
Jumper Settings
Master
Note:
To set the SATA hard drive as a Master
Device when connected to an IDE channel,
you need to short the top pins located on
the converter by placing a jumper. As a
Slave Device short the middle pins.
40-Pin IDE Connector
Slave
Cable Select
v4.1.11

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADSAIDE and is the answer not in the manual?

Questions and answers

Summary of Contents for Addonics Technologies ADSAIDE

  • Page 1: User Guide

    User Guide SATA - IDE Converter T E C H N O L O G I E S (ADSAIDE) Front View 40-Pin IDE Connector Master, Slave & Cable Select Jumpers SATA Power and Data Connector Back View Jumper Settings Pin 1 Marker...
  • Page 2 Installation: Locate the SATA connector of your SATA drive. 15-Pin SATA Power & 7-pin Data Connector Connect the converter board to the SATA connector of the hard drive. Using the provided Y-power cable, connect the 4-pin Floppy connector to the converter. This will provide power to the converter and to the hard drive.
