Addonics Technologies ADEBIDE2SA User Manual

Embedded ide - dual sata port converter

Advertisement

T E C H N O L O G I E S

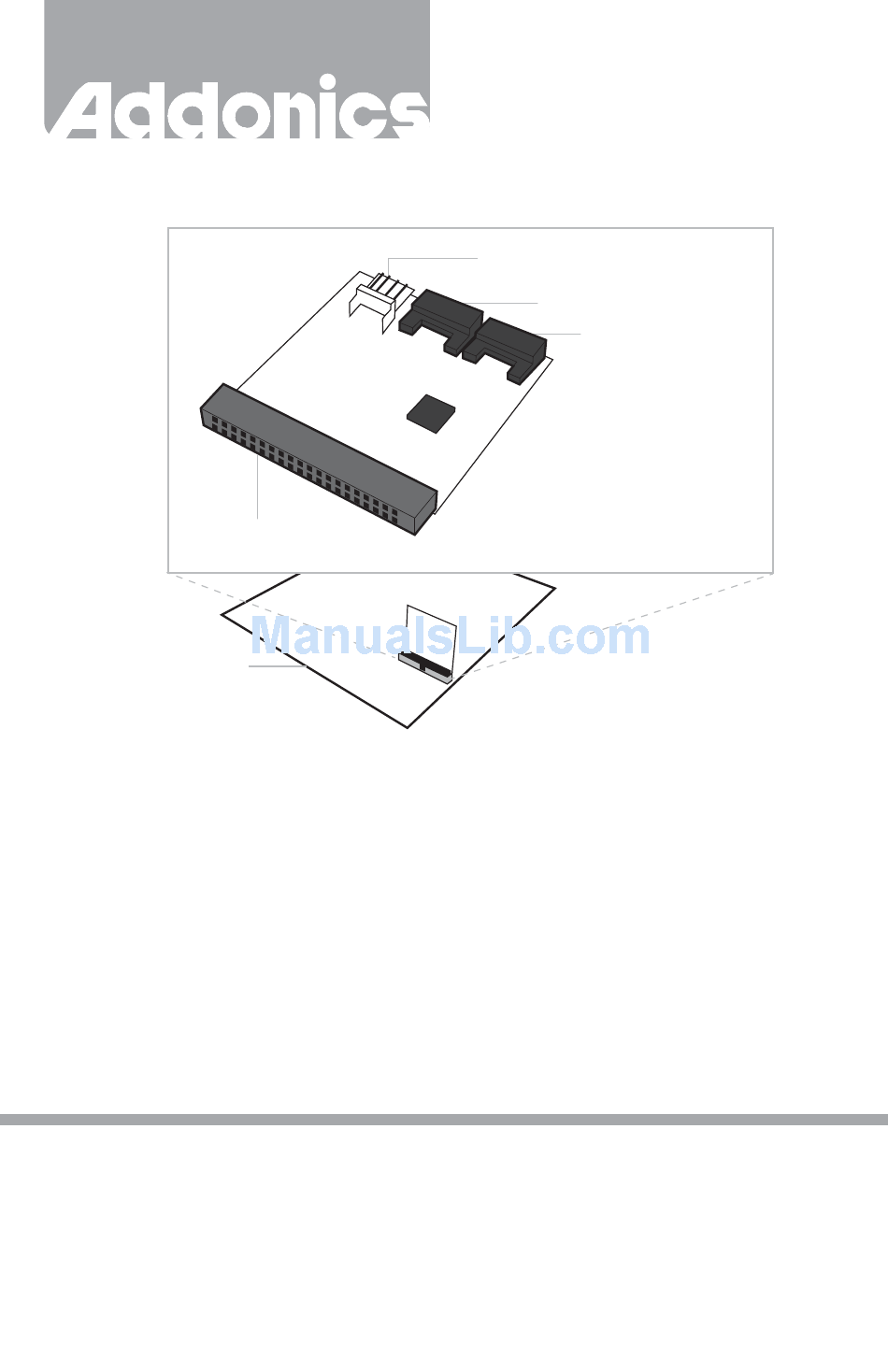

Standard 40-Pin IDE Interface
for Mounting Directly onto Motherboard IDE Channel
Motherboard

Hardware Installation:

Step 1: Plug in the Embedded IDE- Dual SATA Port Converter on the IDE
controller on the motherboard.
Step 2: Using a 4-pin floppy power cable from the power supply, connect it to the
4-pin floppy power connector on the Embedded IDE- Dual SATA Port Converter.
This will provide power to the converter.
Step 3: Connect a SATA drive to the SATA port 1 of the converter. This drive will
show up as a master device in the motherboard BIOS.
Step 4: Connect a second SATA drive to the SATA port 2 of the converter. This
drive will show up as a slave device in the motherboard BIOS.

Technical Support

If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
User Guide
Embedded IDE -
Dual SATA Port Converter
(ADEBIDE2SA)
4-Pin Floppy Power Connector
SATA Port 2 (Slave)
SATA Port 1 (Master)
* SATA drives must be connected to
the adapter before boot up. Converter
does not support hot swap.
v6.1.11
