Installation Guide
2.5" IDE Connector
ZIF Connector
Note: The master and slave pin settings on the 50-pin IDE connector is disabled.
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
User Guide

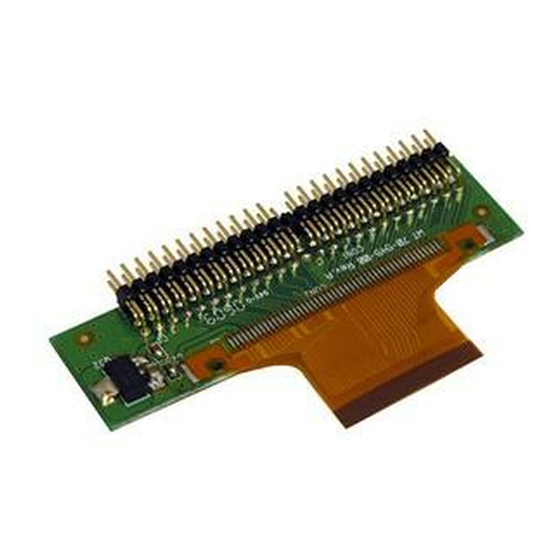

Toshiba 1.8"ZIF to 2.5"
IDE Hard Drive Connector
Converter
(AAT18ZIF25)
Pin 1
Pin 1
v4.1.11
