Sapphire snap-in disk array with esata & usb 3.0 (11 pages)
Summary of Contents for Addonics Technologies AESN5DA35
Page 1

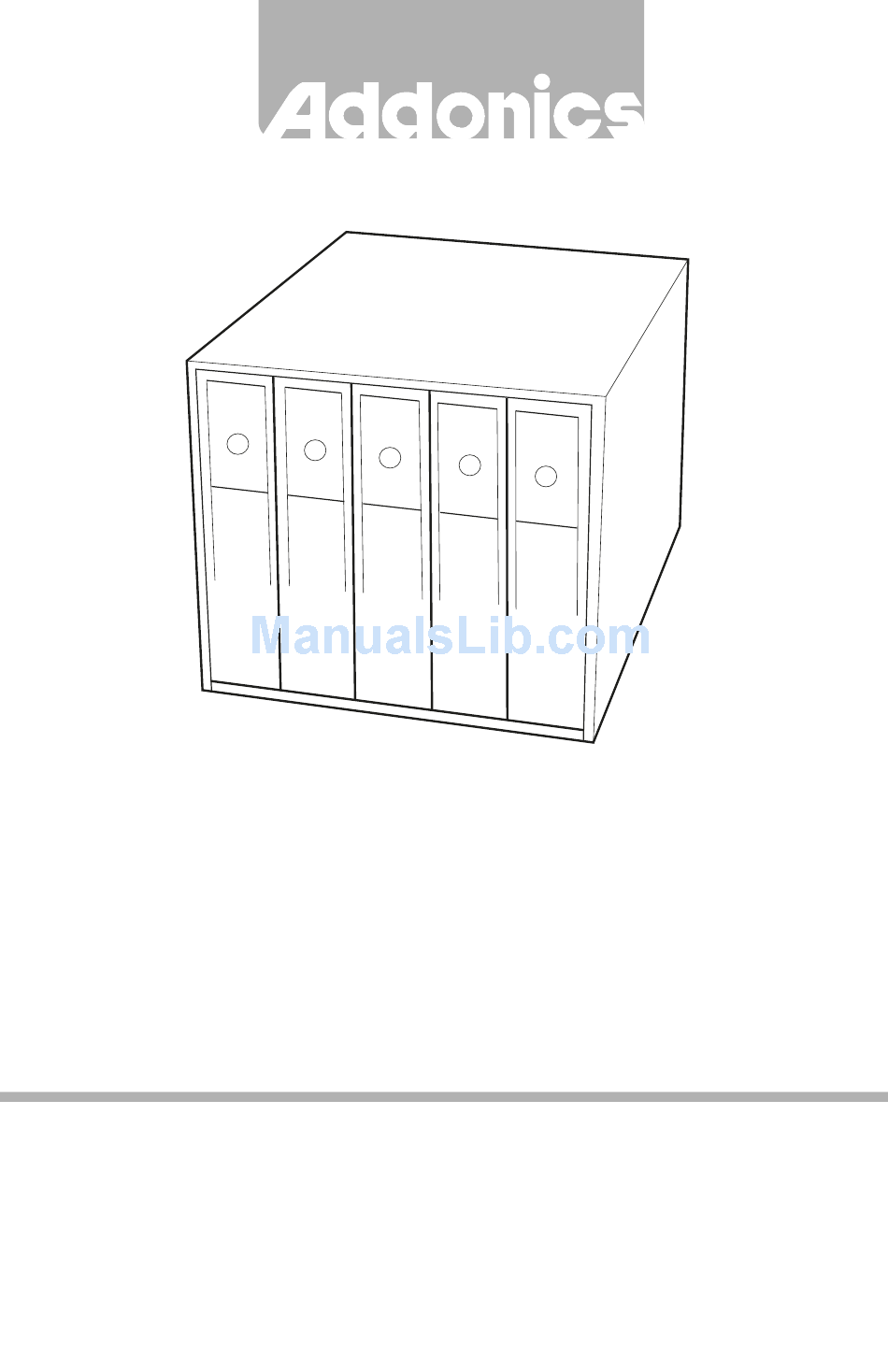

T E C H N O L O G I E S User Guide Snap-In Disk Array (AESN5DA35) www.addonics.com v6.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
Page 2
Door Lock Front Individual Drive Bay Door Main Power LED Drive Power & Activity LED for Each Drive Bay Insert Hard Drives with Top Facing Right 4-Pin Molex Power Connector Back 3 - 5.25” Drive Bay Size Cooling Fans SATA (Black) SAS (Yellow) Connectors www.addonics.com...
Page 3
Installing the Snap-In Disk Array Standard 5.25” Drive Bay 1. Slide the Snap-In Disk Array into a set of three standard 5.25” drive bays on your system or storage chassis. Orient the Disk Array so that the drive door open to the right in horizontal mount or swing open downward in vertical mount.
