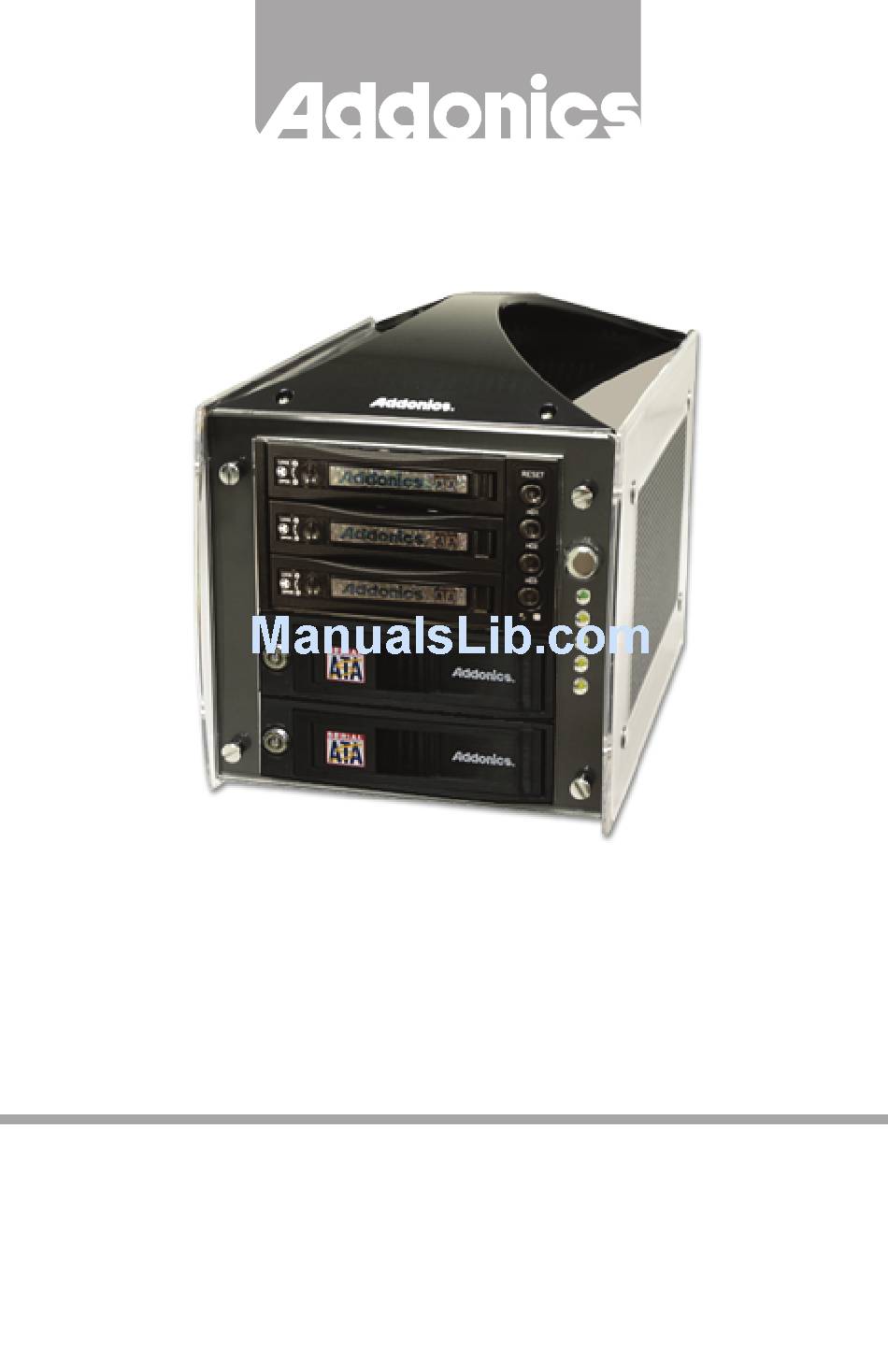

T E C H N O L O G I E S
User Guide
RAID Tower IV
(RTIV535HEU3)
www.addonics.com
v8.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Related Manuals for Addonics Technologies RTIV535HEU3 RAID Tower IV
Summary of Contents for Addonics Technologies RTIV535HEU3 RAID Tower IV
- Page 1 T E C H N O L O G I E S User Guide RAID Tower IV (RTIV535HEU3) www.addonics.com v8.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at: Hours: 8:30 am - 6:00 pm PST Phone: 408-453-6212 Email: http://www.addonics.com/support/query/...
-
Page 2: Disk Array Features
Disk Array Features: 1: Temperature LED and Alarm Reset. When the temperature inside the Disk Array exceeds 60°C, An alarm will sound and this LED will glow red. Pressing the RESET button will silence the alarm and turn off the LED. 2-5: Power Switch and LED for each individual drive. - Page 3 SATA Ports Error Buzzer Alarm Drive Activity LEDs Floppy Power Connector USB 3.0/2.0 Host Port Dip Switch RAID Setting Button eSATA Host Port (Port 5) Dip Switch Settings Raid Mode Individual Drive (Factory Default) 1 and 10 Clone Large Enable Auto- Port Multiplier Mode ERR Buzzer...
-
Page 4: Error Led
Default factory DIP Switch setting: SW1 – RAID Setting DIP Switch BZS – Error buzzer function EZ – Automatic rebuilding to spare drive (one of the drives on the raid is set as a spare). If EZ is ENABLED anda drive failure occurs, the spare will automatically act as a drive replacement and rebuilding will automatically start. - Page 5 Setting or Modifying the RAID Mode Using the JMicron HW RAID Manager Utility Program: For Windows users, install the JMicron HW RAID Manager located on the SATA Controller CD. In the CD, go to Configuration Utilities > JMB393. This manager can be use to create and monitor the status of the RAID volume. It is recommended to use the default factory RAID DIP switch setting when using the JMicron HW RAID Manager.
-
Page 6: Clone Mode
On the DIP switch, change (M0 to M2) setting to the desired RAID mode using the diagram below. All settings on the diagram shows • Error buzzer function is ENABLED • EZ function is DISABLED. RAID 0 Mode Clone Mode BZS EZ M2 M1 M0 BZS EZ M2 M1 M0 RAID 1&... - Page 7 RAID Setting Notes: When 2 drives are RAID 1& RAID 10 Mode connected to the HPM-XU, and DIP switch is set to this setting, the 2 drives will be configured as a 2-drive RAID1 array. BZS EZ M2 M1 M0 When 4 drives are connected to the HPM-XU, the 4 drives will be configured as a 4-drive RAID10 array.
-
Page 8: Power On/Off Control
Notes on Spare Drives using the Easy RAID Setting (EZ) When EZ function is ENABLED, the auto-rebuilding to spare drive is automatic. The degraded RAID group will start rebuilding automatically by using the existing spare drive. * Spare drive can be either plugged after RAID building or a new drive can be plug as the spare drive when RAID rebuild is required. - Page 9 CONTACT US www.addonics.com Phone: 408-573-8580 Fax: 408-573-8588 Email: http://www.addonics.com/sales/query/...
