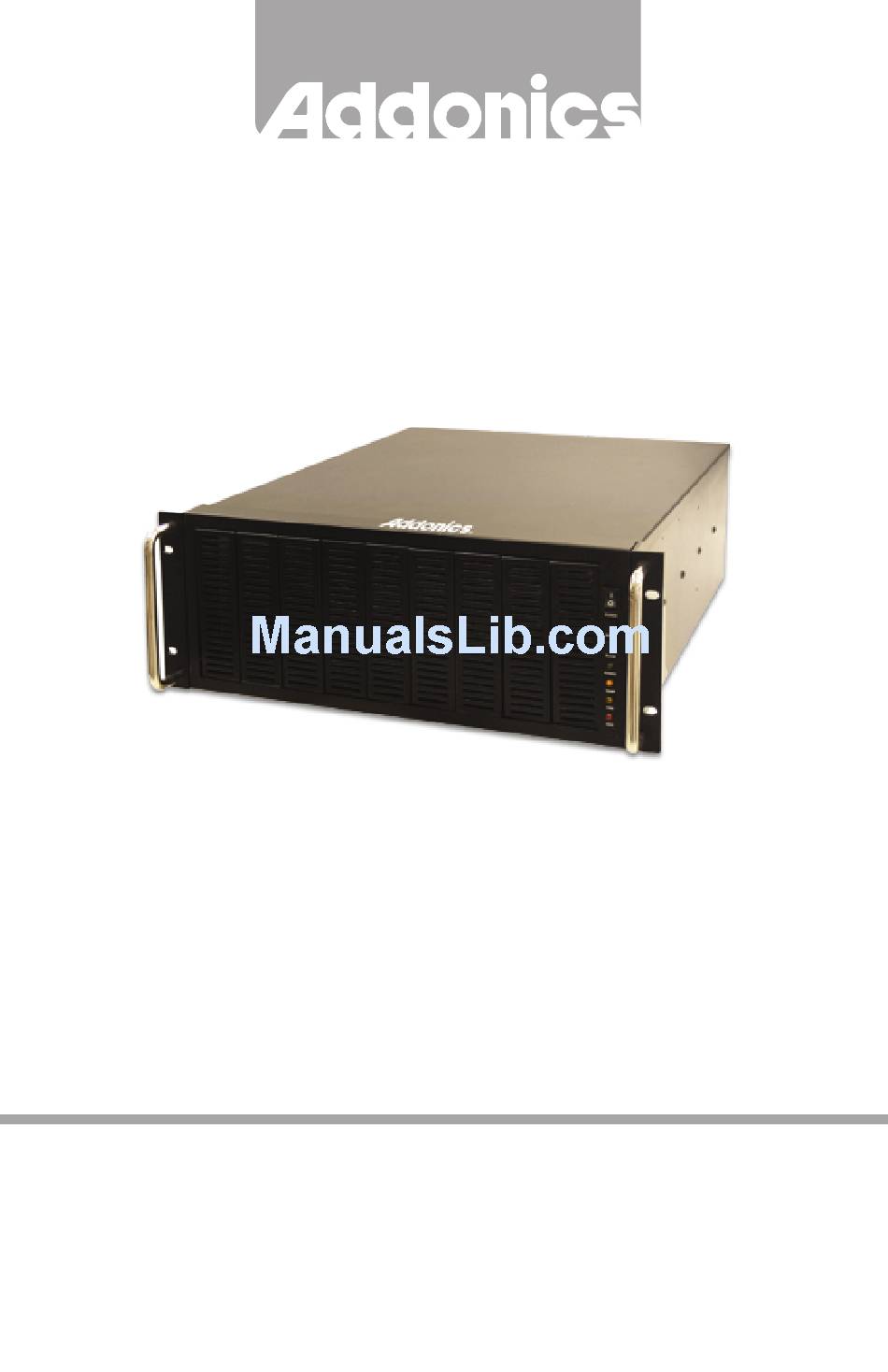

T E C H N O L O G I E S
User Guide
Storage Rack
(SR46S4R5HM)
www.addonics.com
v8.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Related Manuals for Addonics Technologies SR46S4R5HM
Summary of Contents for Addonics Technologies SR46S4R5HM
- Page 1 T E C H N O L O G I E S User Guide Storage Rack (SR46S4R5HM) www.addonics.com v8.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
- Page 2 Front Power Switch POWER System Reset RESET Buzzer Reset Buzzer Back Punch out for USIB connectors Fans POWER TEMP LED Display Punch out for USIB connectors Power Supply Punch out for eSATA Punch out for port multipliers/bridges Power Switch: This is the switch to power on devices connected to the power supply.
-
Page 3: How To Remove The Top Cover
Top Cover Screws How to Remove the Top Cover: Locate the 2 screws at the back of the storage rack Turn screws counterclockwise to loosen. Lift the top cover and pull towards the rear end of the rack. To Mount Back the Top Cover: Align the top cover with the edges of the rack. - Page 4 How to Remove the 5 ¼” Drive Bay Front Panels: Locate the 3 screws for each front panel. Turn screws counterclockwise to loosen. Pull the front panel forward, away from the drive cage. 3 screws for each panel Thermal Management Card on the RAID Rack Fan Connectors Overheat Buzzer Floppy Power Connector...
-
Page 5: Led Status
4x1 Hardware Port Multiplier (AD4SR5HPMU-E) RAID config rotary switch USB port connection to any USB controller PM Health LED eSATA LED USB LED SATA Port 4 RAID setting button eSATA Port SATA Pin 1 Port 1 LED pins SATA SATA Port 2 Port 3 Rotary Switch... - Page 6 Setting RAID on the HPM 1. Attach the SATA hard drives (up to 4) to the SATA ports on the Hardware Port Multiplier (HPM) using SATA cables. It is recommended to connect drives to the SATA ports 1 to 4 successively. 2.
- Page 7 Installing the 4th Disk Array on the Storage Rack Remove the back panel of the storage rack by loosening the 4 screws indicated below. Screws Secure the bottom bracket of the storage rack to the disk array using screws. Secure the top bracket of the storage rack to the disk array using screws.
- Page 8 Screws Secure the Disk array by screwing the top and bottom brackets to the frame of the storage rack. Screws Installing Storage Devices on the Storage Rack A. 3.5” hard drive Attach the 3.5” to 5.25” mounting brackets onto both sides of the 3.5”...
- Page 9 B. 5.25” Storage devices 1. Separate the ventilation front panel and the metal base by removing flat-head screws. 2. Attach the metal base onto the optical drive or other 5.25” storage device using the flat head screws from the ventilation front panel. Optical Drive Addonics Drive Cradle www.addonics.com...
- Page 10 C. 3.5” Mobile Rack 1. Separate the ventilation front panel and the metal base by removing the two flat-head screws. Attach the 3.5” drive cradle onto the 3.5” to 5.25” drive bay mounting bracket at the six aligned screw hole locations.
- Page 11 At the bottom of the drive cage, locate the metal base corresponding to the storage device inserted in the previous step and secure it onto the drive cage. When you finished, install the drive cage now populated with the devices back into the Storage Rack.
- Page 12 Installing Additional Bridge Boards on Mounting Poles Inside the Storage Rack Separate PM or HPM from bracket by unscrewing 4 screws on the PCB. Install the PM or HPM onto the desired mounting pole. Installing Bridge Boards onto Back Panel Remove punch outs from the rear panel of the Storage Rack.
-
Page 13: Power Supply
Power Supply This power supply provides 500W of power. Before turning on the main switch located on the front panel of the storage rack, turn on the power switch of the power supply. Power Switch Storage Rack DA with Port Multiplier Using Multilane Connection Note: The Port Multiplier will only work with Port Multiplier aware multilane host controllers. - Page 14 CONTACT US www.addonics.com Phone: 408-573-8580 Fax: 408-573-8588 Email: http://www.addonics.com/sales/query/...
