Summary of Contents for Addonics Technologies R14ES

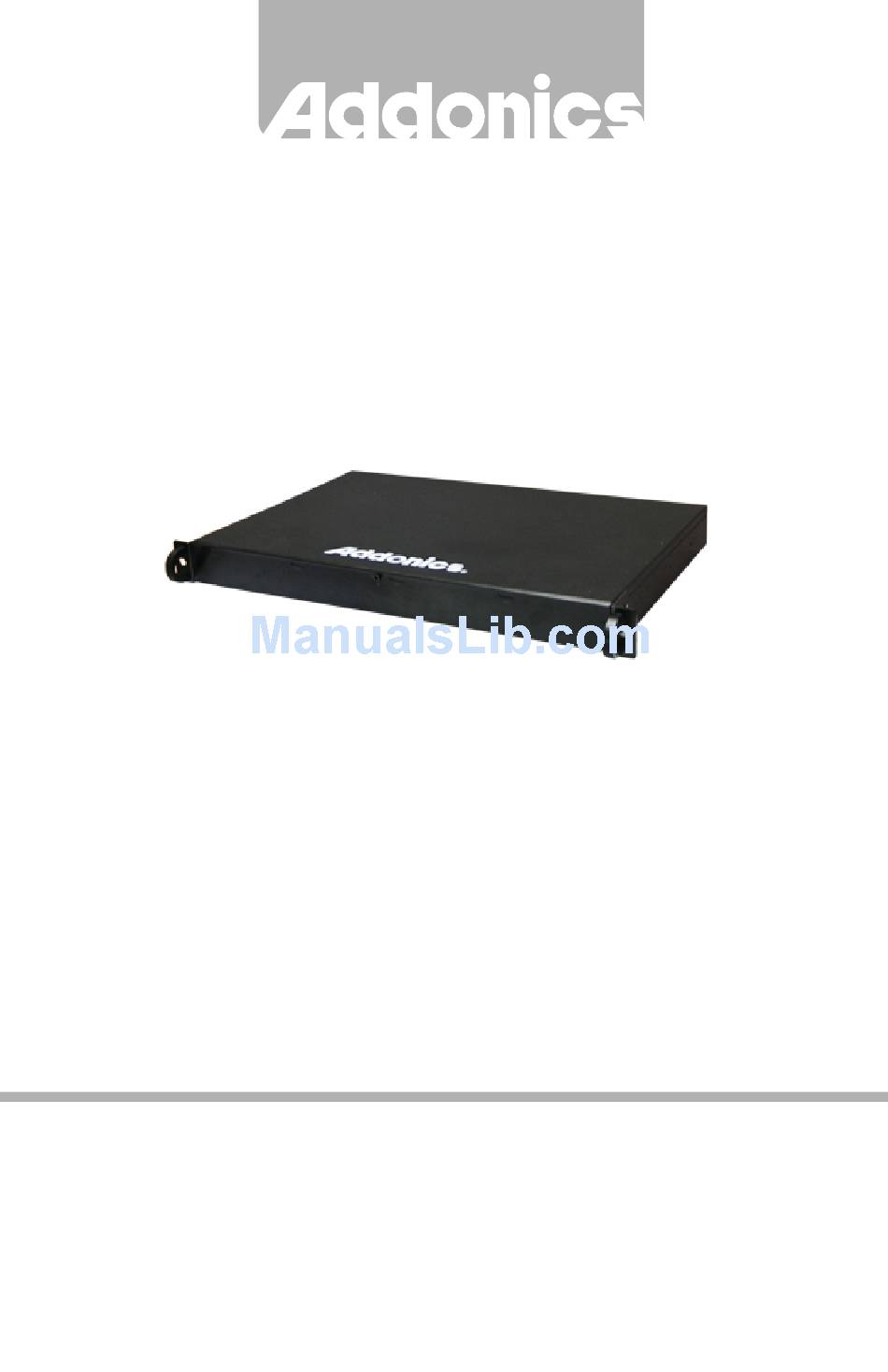

Page 1
T E C H N O L O G I E S User Guide 1U RAID Rack with rack mounted PM (R14ES) www.addonics.com v6.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your...
Page 2
Unpacking and Overview Drive 2 Power Button Drive Eject Levers Drive 1 Drive 4 Drive Activity Drive 3 Drive 1 Drive 1 Drive 1 Power Switch AC Input Drive 4 Drive 1 Drive 2 AC Input Drive 3 Switch Power Cord 100 cm eSATA cable (4) (US Version Shown) WARNING: Please remember to...
Page 3
Hot Swapping drives The R14ES unit supports hot swapping (inserting or removing drives while the drives are running and connected to a computer). The eSATA controller on the computer must also support hot swapping - be sure to confirm this before attempting to insert or remove drives while the system is running.
