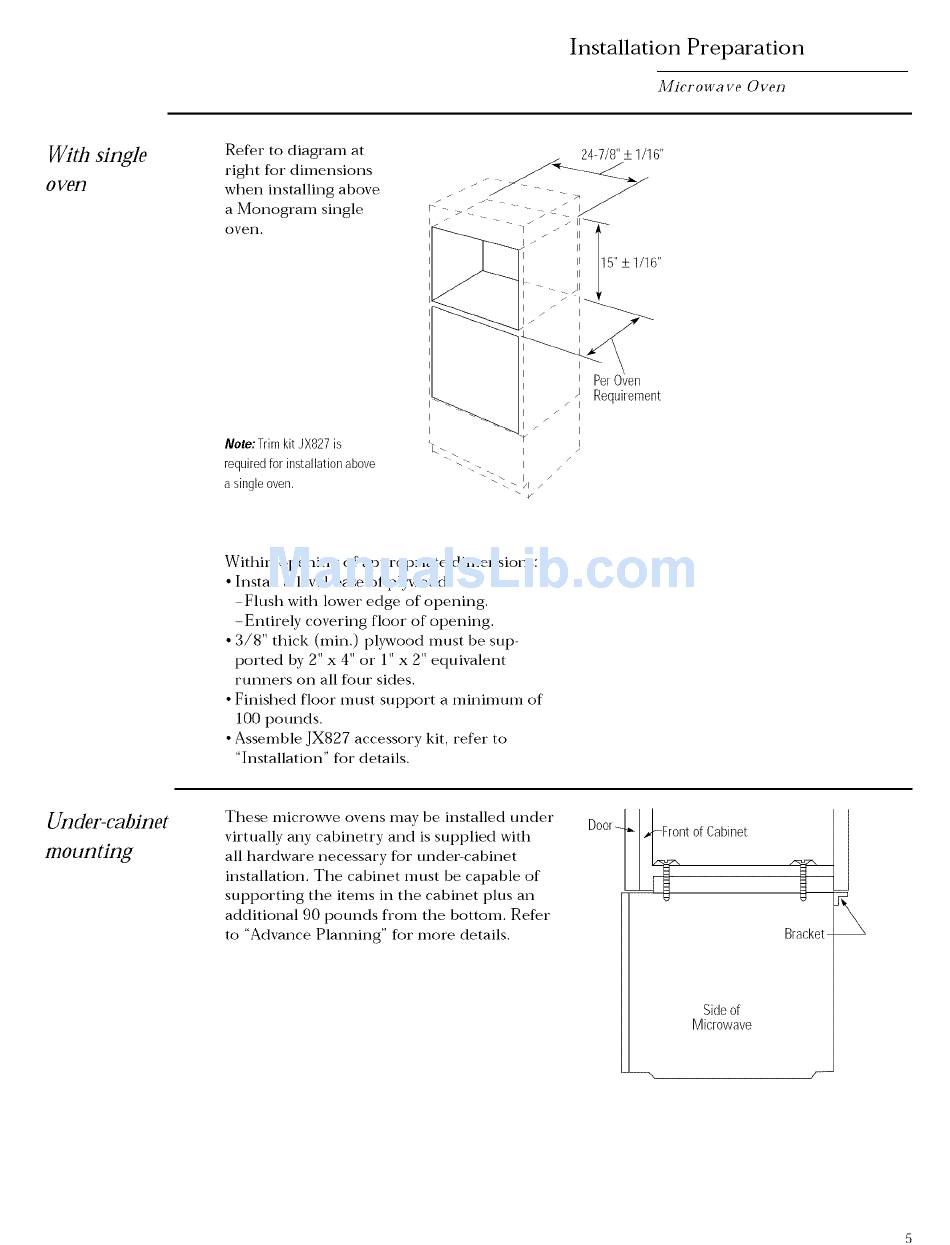

Installation Preparation
Microwave Oven
With single
0 ven
Refer to diagram at
right for dimensions
when installing above
a Monogram single
oven.
Requirement
Within opening of appropriate dimensions:
• Install a level base of plywood:
- Flush with lower edge of opening.
-Entirely covering floor of opening.
• 3/8" thick (rain.) plywood must be suf>
ported by 2" x 4" or 1" x 2" equivalent
runners on all four sides.
• Finished floor must support a minimum of
100 pounds.
• Assemble JX827 accessory kit, refer to
"Installation" for details.
Under-cabinet
mounting
These micro_we ovens may be installed under
virtually any cabinetry and is supplied with
all hardware necessary for under-cabinet
installation. The cabinet must be capable of
supporting the items in the cabinet plus an
additional 90 pounds fl'om the bottom. Refer
to "Advance Planning" for more details.
D°°r_nt of Cabinet
Bracket
Sideof
Microwave
