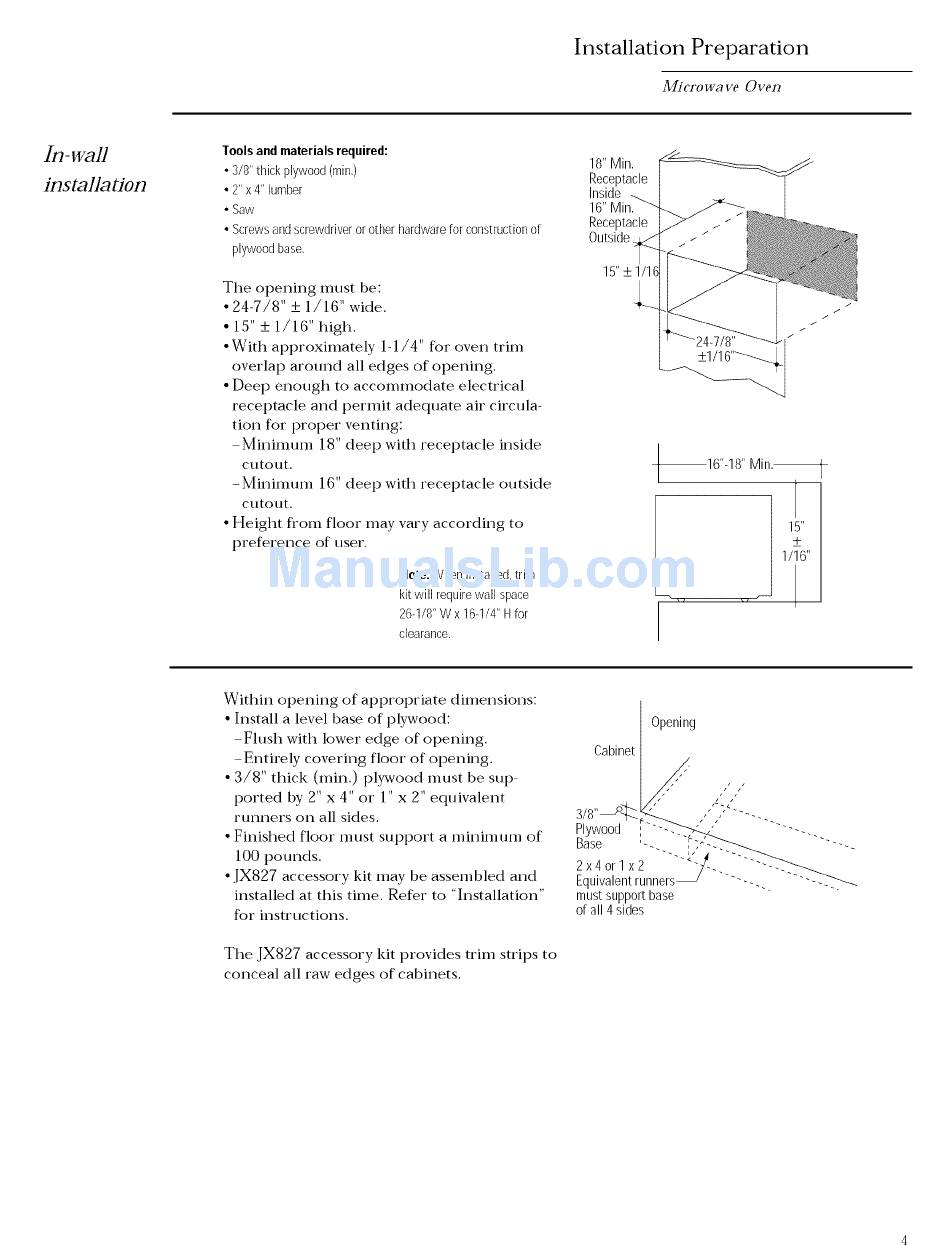

In-Wall; Installation - GE Monogram ZEM200 Series Installation Instructions Manual

Installation Preparation
Microwave Oven
In-wall
installation
Tools and materials required:
• 3/8" thick plywood (min.)
• 2" x 4'r lumber
• Saw
• Screws and screwdriver or other hardware for construction of
plywood base,
The opening must be:
• 24-7/8"_+ 1/16" wide.
• 15" _+1/16" high.
• With af)proximately 1-1/4" for oven trim
overlap around all edges of opening.
• Deep enough to accommodate electrical
receptacle and l)ermit adequate air circula-
tion for proper venting:
Minimum 18" deep with receptacle inside
cutout.
- Minimum 16" deep with receptacle outside
cutout.
• Height fl'om floor may vary according to
preference of user.
Note: When installed, trim
kit will require wall space
26-1/8" W x 16-1/4" H for
clearance.
18" Min.
Receptacle
Inside
Receptacle
Outside
16"q 8" Min._
1/
Within opening of al)t)ropriate dimensions:
• Install a level base of plywood:
Flush with lower edge of opening,
Entirely covering floor of opening,
• 3/8" thick (rain.) plywood must be SUl>
ported by 2" x 4" or 1" x 2" equivalent
runners on all sides.
• Finished floor must support a minimum of
100 pounds.
• JX827 accessory kit may be assembled and
installed at this time. Refer to "Installation"
for instructions.
The JX827 accessory kit provides trim strips to
conceal all raw edges of cabinets.
Opening
Cabinet
3/8,, _ _ : ,-".'i'"'..
Plywood
,.. - --(..,,-x272...._" -.......
Base "'" ""
2x4orlx2 " ;\/..
Equivalentrunners_ .. -.
mustsupportbase
of all 4sides
