Installation
with a 36" Monogram
Downdraft
Vent, models
ZVB36.
Tile installation
of tile downdrafl
vent with
this cooktop
requires
carefid
consideration.
Both tile cooktop
and
tile vent must
be
installed
according
to each specific
installa-
tion instruction.
For accurate
planning,
review the Downdrafl
Vent Installation
Inst_ uctions
in adwmce,
order
Pub.
No.
49-80185.
Countertop
Requirements:
Tile cotmtertop
must
have a deep
fiat surface
to
accOillii/o(late
tile
cooktop
and
vent.
Countertoi)s
with a rolled
front
edge
and
backsplash
will not provide
tile fiat surthce
area required.
• Review
tile illustration
to determine
tile
cotmtertop
sm'thce
requirements.
-All cutout
clearances
tot this installation
nlust
be observed.

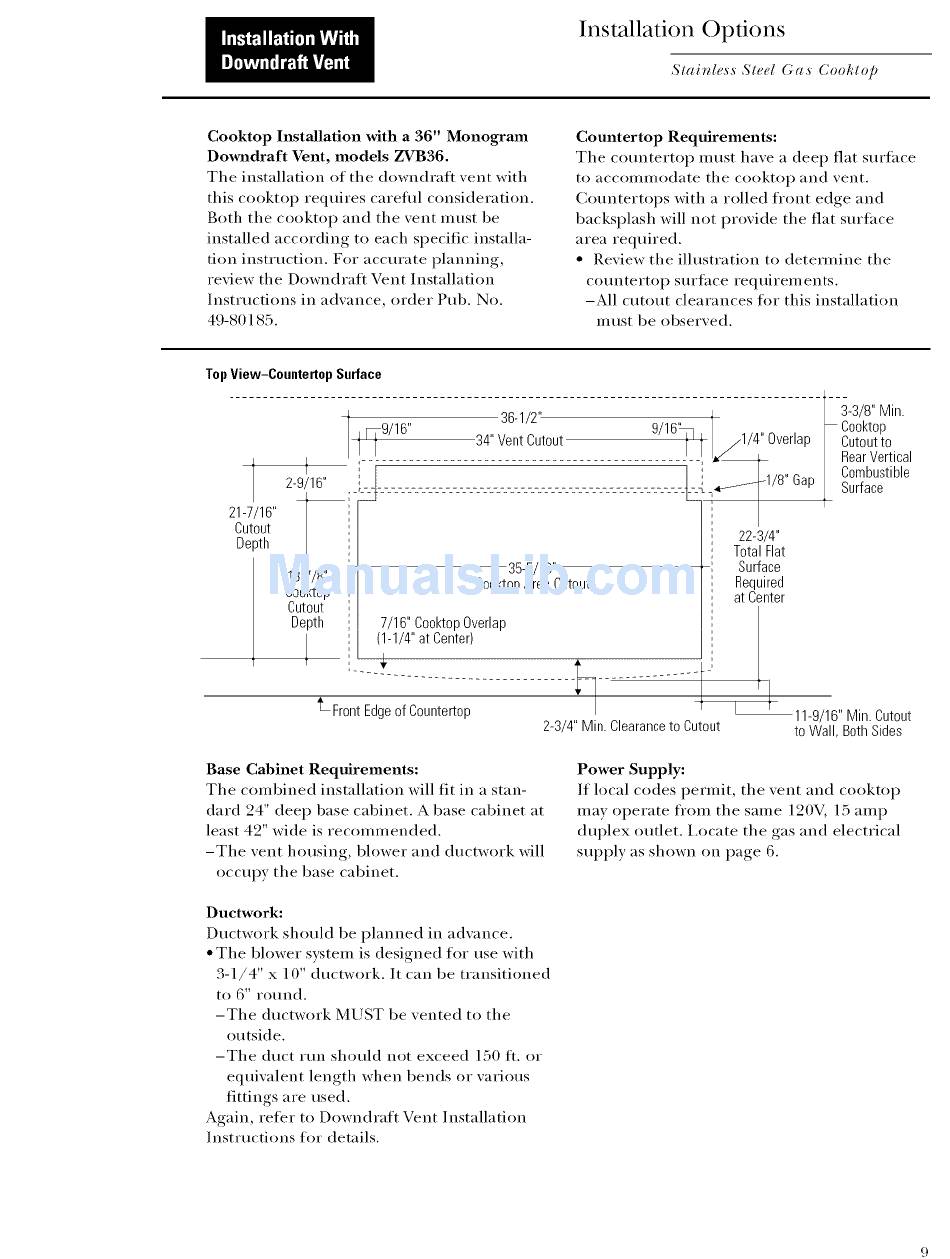

TopView-Countertop Surface
9/16"
36-1/2'_
9/16
34" VentCutout
Overlap
Cutoutto
RearVertical
'
'
Combustible
;_
Surface
i
2-9/16"
21-7/16"
Cutout
Depth
18-7/8"
Cooktop
Cutout
Depth
_Front
Edge of Countertop
35-5/16"
Cooktop Area Cutout
7/16" Cooktop Overlap
(1-1/4" at Center)
22-3/4"
Total Flat
Surface
Required
at Center
2-3/4" Min. Clearance to Cutout
11-9/16" Min. Cutout
to Wall, Both Sides
Base
Cabinet
Requirements:
Tile combined
installation
will fit in a stan-
dard
24" deep
base cabinet.
A base cabinet
at
least 42" wide is recommended.
-Tile
vent housing,
blower
and ductwork
will
occupy
the base cabinet.
Power Supply:
If local
('odes permit,
tile vent and cooktop
may operate
from
tile same
120V, 15 amp
dui)lex
outlet,
i,ocate
tile gas and
electrical
suI)ply as shown
on page
6.
Ductwork:
Ductwork
should
be planned
in adwmce.
• The blower
system
is designed
for use with
3-1/4"
x 10" ductwork.
It can be transitioned
to
6"
I'Otlnd.
-The
ductwork
MUST
be vented
to the
outside.
-The
duct mn should
not exceed
150 It. or
equiwdent
length
when
bends
or wu'ious
fittings
are used.
Again,
refer
to Downdraft
Vent Installation
Instructions
for details.
