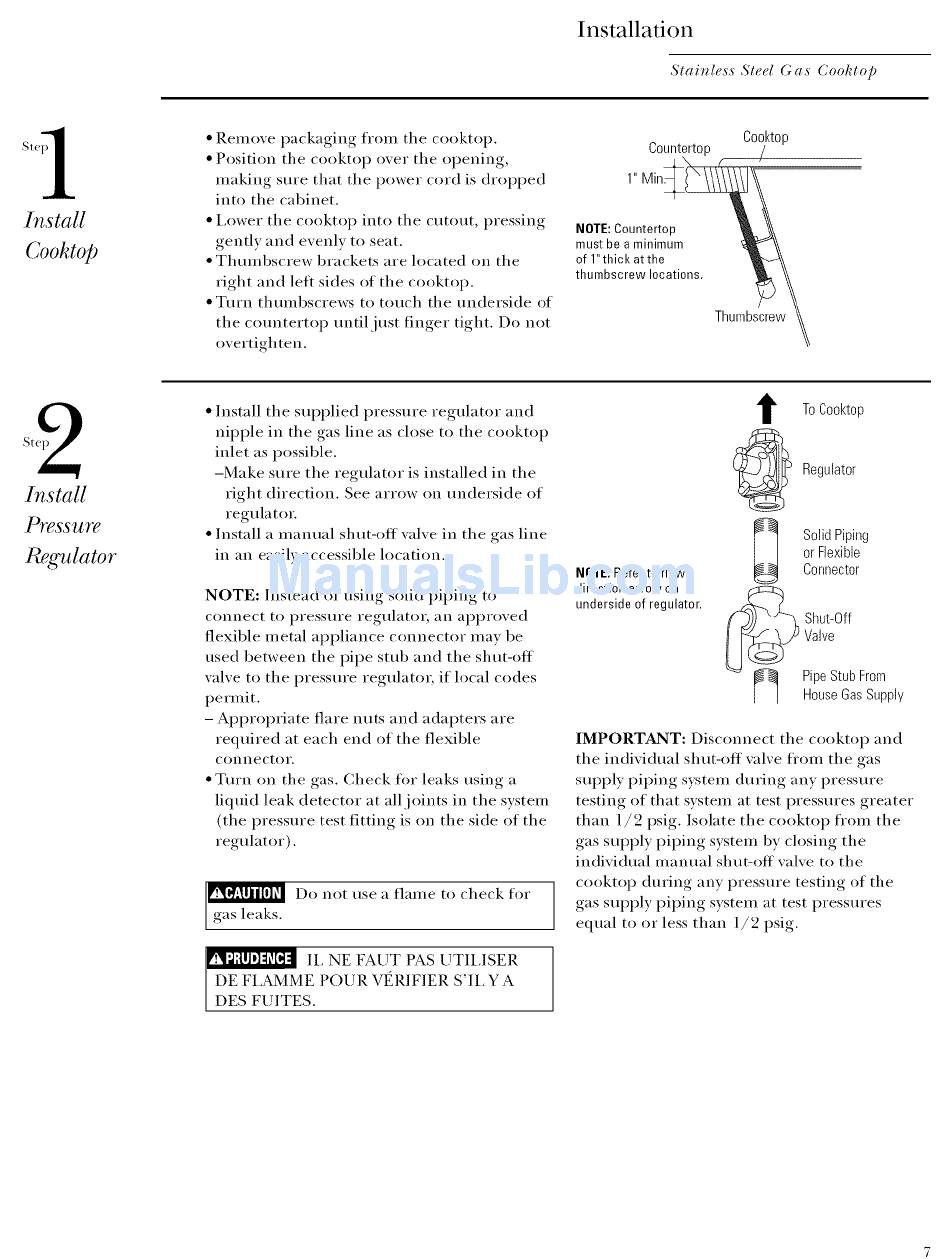

Installation
Slail_[ess Slcr, l (; as Cool, to D
Install
Co&t@
• Remove packaging fl'om the cooktop.
• Position the cooktop over the opening,
making stlre that the power cord is dropped
into the cabinet.
• i,ower the cooktop into the cutout, pressing
gently and evenly to seat.
• Thumbscrew brackets are located on the
right and left sides of the cooktop,
• Turn thumbscrews to touch the underside of
the countertop until just finger tight, Do not
overtighten,
Countertop
1 "
NOTE: Countertop
must be a minimum
of 1"thick at the
thumbscrew locations.
Cooktop
Thumbscrew
Install
Reg'ulator
,_
• Install the sui)plied pressure regulator and 1 To C00kt0p
nil)pie in the gas line as close to the cooktop
inlet as possible.
-Make sure the regulator is installed in the
Regulator
right direction. See arrow on underside of
regulator,
• Install a manual shut-off valve in the gas line
in an easily accessible location.
NOTE: Instead of using solid piping to
connect to pressure regulator; an approved
flexible metal appliance connector may be
used between the pipe stub and the shut-oil
wdve to the pressure regulator, if local codes
permit.
-Ai)i)ropriate flare ntlts
and
adapters are
required at each end of the flexible
connectoi'.
• Turn on the gas. Check flw leaks using a
liquid leak detector at all joints in the system
(the pressure test fitting is on the side of the
regulator).
II'!II,L_IlIlllI_I
Do not use a flame to check for
gas leaks,
NOTE:Refer to flow
direction arrow on
underside of regulator.
Solid Piping
or Flexible
Connector
_ hut-0ff
Valve
PHioPues Set UG ba:rs; pIy
IMPORTANT: Disconnect the cooktop and
the individual shut-off valve from the gas
suI)ply piping s):stem during any pressure
testing of that system at test pressures greater
than 1/2 psig. Isolate the cooktop from the
gas sui)ply piping system by closing the
individual manual shut-off wdve to the
cooktop during any pressure testing of the
gas suI)ply piping system at test pressures
equal to or less than 1/2 psig.
[;_I',J;I_ID]:IOIPi:I li, NE _2__UT E__S UTII,ISER
DE FI,AMME POUR VERIFIER S']I, YA
DES FUITES.
