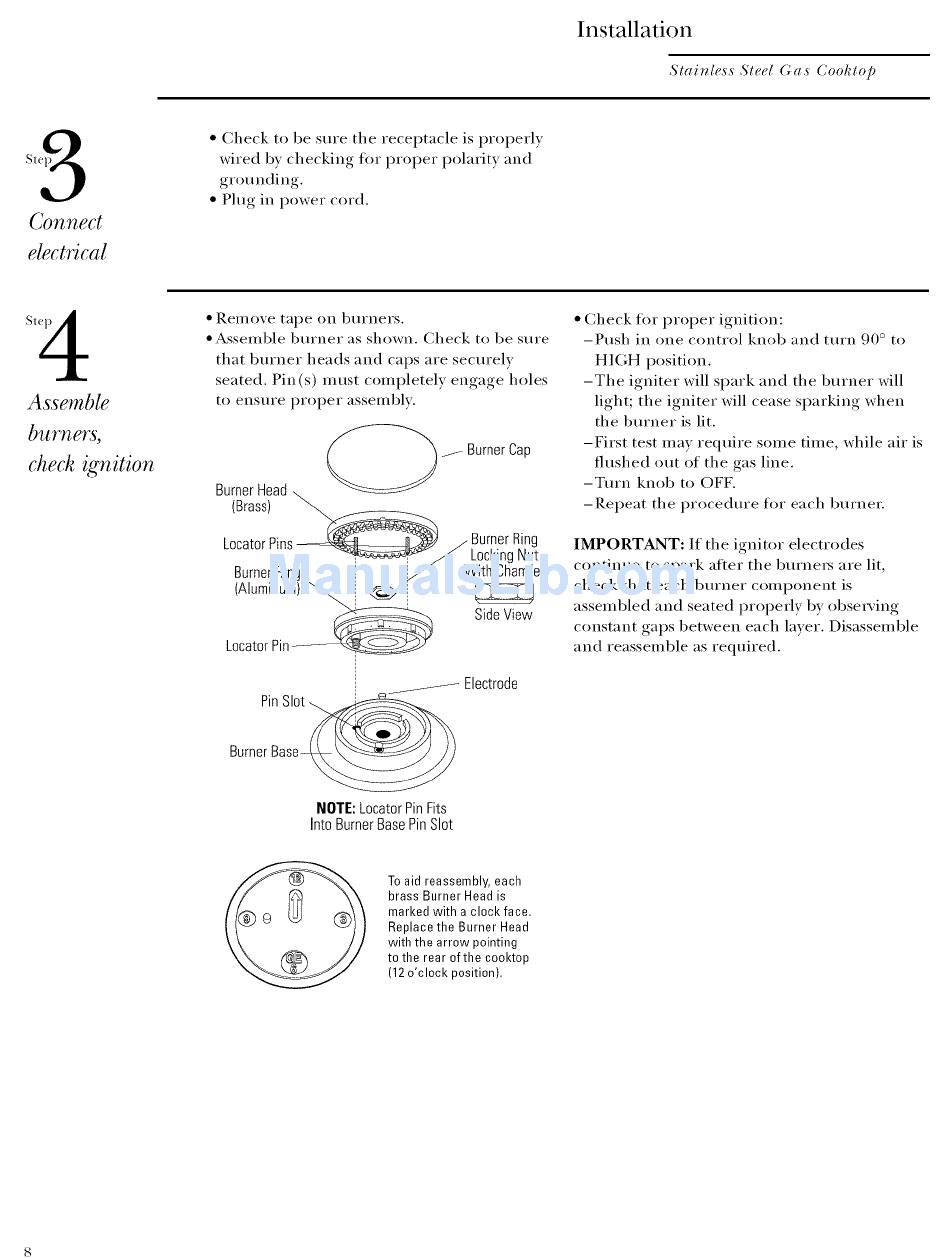

Installation
Slain[r,
ss Sl_(,[ (,;as
( oohto D
Connect
dectrical
• Check
to be sm'e
the
receptacle
is properly
wired
by checking
fi>r proper
polarity
and
grounding.
• Plug
in power
cord.
Step
Assemble
b?_ YH£15'_
check qnition
• Rein eve tape
on burners.
• Assemble
burner
as shown.
Check
to be
sure
that
bm'ner
heads
and
caps
are
secm'ely
seated.
Pin (s) must
completely
engage
holes
to enstli'e
l)i'ol)er
asselilblv.
j-- Burner Cap
BurnerHead
(Brass)
Locater Pins
Burner Ring
i
Locater Pin
• BurnerRing
LockingNut
With Chamfer
SideView
Electrode
Pin SI0t_
Burner Base_'_-_j_
NOTE: Locater Pin Fits
Into Burner Base Pin Slot
• Check
for
proper
ignition:
-Push
in one
control
knob
and
tm'n
90 ° to
HIGH
position.
-The
igniter
will spark
and
the
burner
will
light;
the
igniter
will cease
sparking
when
the
bm'ner
is lit.
-First
test may
require
some
time,
while
air is
flushed
out
of the
gas line.
-Tm'n
knob
to OFF.
-Repeat
the
procedure
for
each
burner.
IMPORTANT:
If the
ignitor
electrodes
continue
to spark
after
the
burne_
are
lit,
check
that
each
burner
component
is
assembled
and
seated
properly
by observing
constant
gaps
between
each
laver.
Disassemble
and
reassemble
as required.
To aid reassembly, each
brass Burner Head is
marked with a clock face.
Replace the Burner Head
with the arrow pointing
to the rear of the cooktop
(12 o'clock position).
