Installation

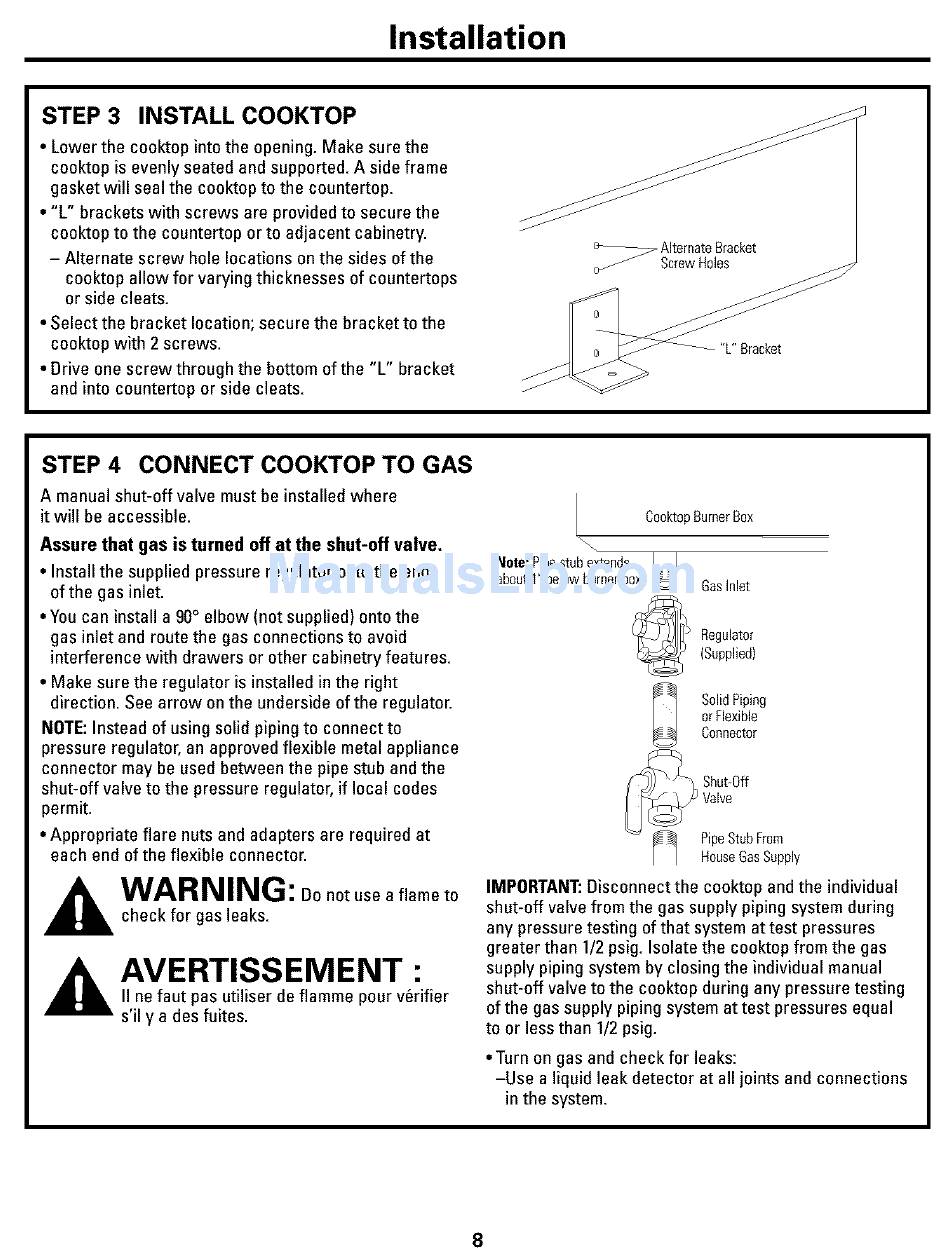

STEP 3 INSTALL COOKTOP
• Lower the cooktop into the opening. Make sure the
cooktop is evenly seated and supported. A side frame
gasket will seal the cooktop to the countertop.
• "L" brackets with screws are provided to secure the
cooktop to the countertop or to adjacent cabinetry.
- Alternate screw hole locations on the sides of the
cooktop allow for varying thicknesses of countertops
or side cleats.
• Select the bracket location; secure the bracket to the
cooktop with 2 screws.
• Drive one screw through the bottom of the "L" bracket
and into countertop or side cleats.
J
°_AIternate Bracket
Screw Holes
"k" Bracket
STEP 4 CONNECT COOKTOP TO GAS
A manual shut-off valve must be installed where
it will be accessible.
Assure that gas is turned off at the shut-off valve.
• Install the supplied pressure regulator onto the end
of the gas inlet.
• You can install a 90° elbow (net supplied) onto the
gas inlet and route the gas connections to avoid
interference with drawers or other cabinetry features.
• Make sure the regulator is installed in the right
direction. See arrow on the underside of the regulator.
NOTE: Instead of using solid piping to connect to
pressure regulator, an approved flexible metal appliance
connector may be used between the pipe stub and the
shut-off valve to the pressure regulator, if local codes
permit.
• Appropriate flare nuts and adapters are required at
each end of the flexible connector.
WARNING:
Do net use a flame tO
check for gas leaks.
AVERTISSEMENT :
II ne faut pas atiliser de flamme pour v_rifier
s'il y a des fuites.
L Cooktop Burner Box
\\\
Note: Pipe stub extends
about I" below burner box. _ Gas inlet
Regulator
(Supplied)
SolidPiping
urFlexible
Connector
IMPORTANT: Disconnect the cooktop and the individual
shut-off valve from the gas supply piping system during
any pressure testing of that system at test pressures
greater than 1/2 psig. Isolate the ceoktep from the gas
supply piping system by closing the individual manual
shut-off valve to the cooktop during any pressure testing
of the gas supply piping system at test pressures equal
to or less than 1/2 psig.
• Turn on gas and check for leaks:
-Use a liquid leak detector at all joints and connections
in the system.
8
