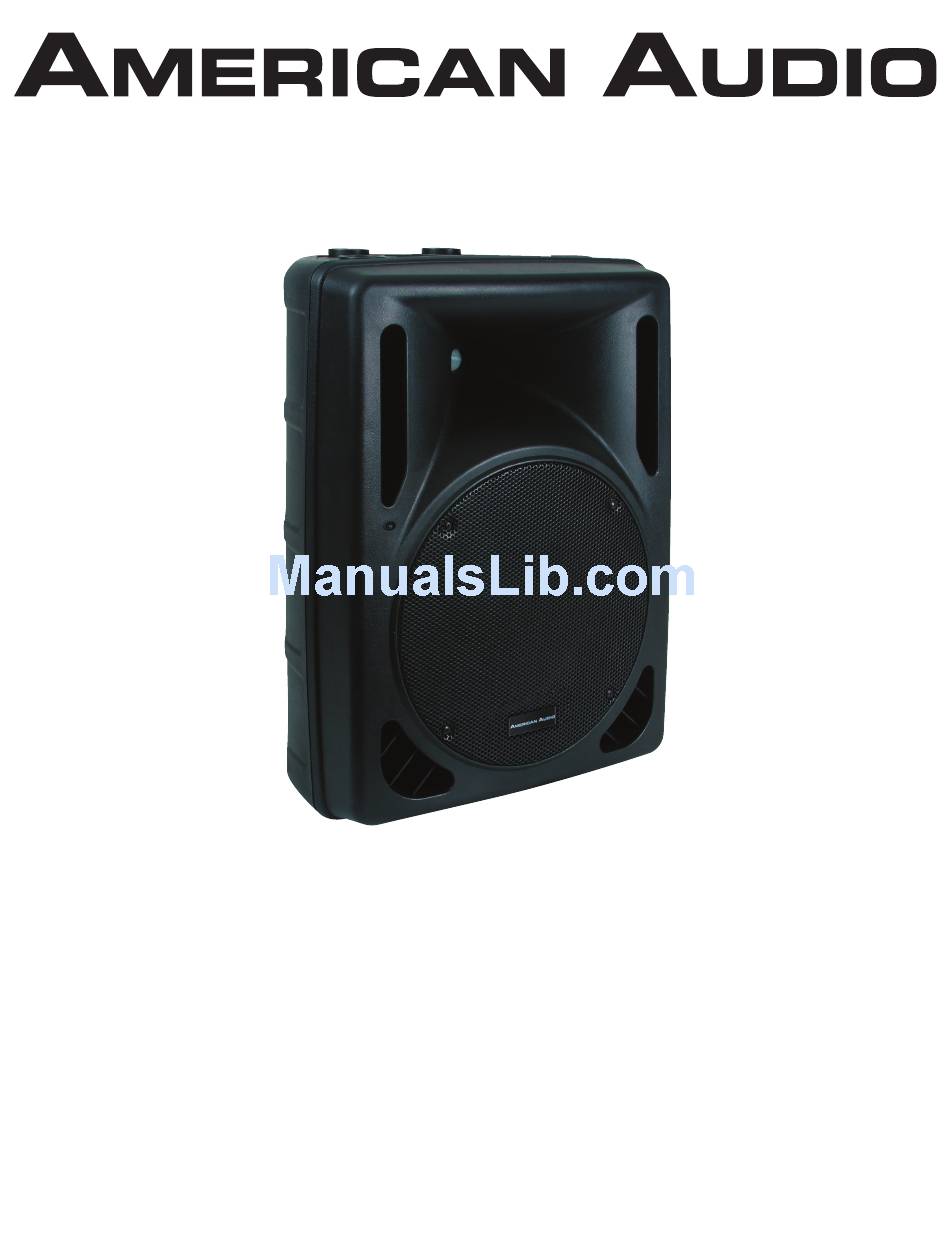

- Page 1 PXI 8P ™ Powered Professional Two-Way Sound Reinforcement Loudspeaker MERICAN UDIO 4295 Charter Street Los Angeles, Ca. 90058 www.AmericanAudio.us Rev. 4/06...
-
Page 2: Table Of Contents

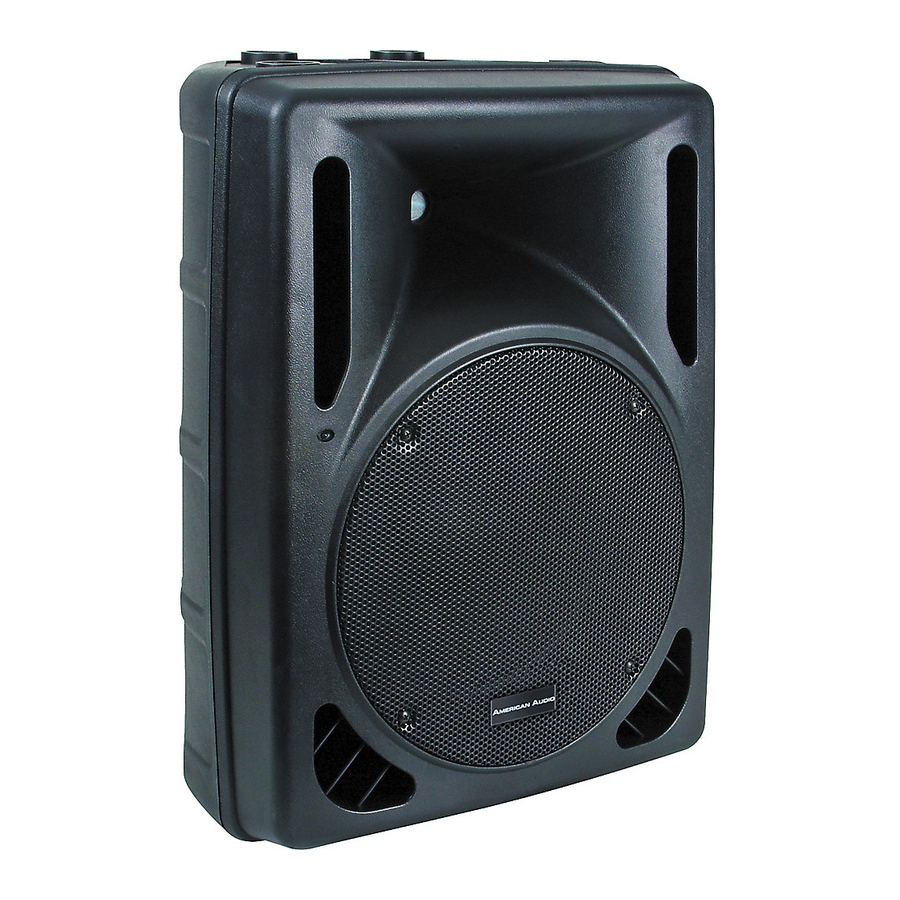

The PXI 8P™ is a 100 watt self powered, two-way active loudspeaker encased in a light weight ASB Nylon Fiber cabinet. This speaker has been designed to be used as both a portable and a permanently installed unit. -
Page 3: P Xi 8P
EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - PXI 8P™ - Instruction Manual Page 3 © ®... - Page 4 P XI 8P™ Safety Precautions PXI 8P™ loudspeaker can easily reproduce sound pressure levels (SPL) sufficient enough to cause sever and permanent hearing damage. A great degree of care should be taken to protect your ears to prolong exposure to SPL in excess of 85dB.
-
Page 5: Features
P XI 8P™ Registration The PXI 8P™ carry a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Front Panel Features
PXI 8P™ and are used to support another speaker when they are stacked together. 6. RIGGING POINTS – The PXI 8P™ include four rigging points. These points are to be used to “fly” or suspend the speaker in the air by some means. Be sure to follow the “flying” outlines on page 15. -
Page 7: Rear Panel Controls
9. XLR PARALLEL OUTPUT JACK – This jack is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another PXI 8P™ or other line level input jack such as a mixer or power amp. - Page 8 fit, be sure the cord is being inserted properly. 18. FUSE HOLDER – This housing stores the 3.15 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 9 AUX 4 AUX / IN MODEL NO.: Q-3433 MKII POWER SOURCE: 115/230V~ 50/60Hz 20W MADE IN CHINA TRIM OUTPUT XLR-XLR Balanced Cables PXI 8P™ PXI 8P™ American Audio - www.AmericanAudio.us - PXI 8P™ - Instruction Manual Page 9 © ®...
- Page 10 P XI 8P™ Looping Speakers PXI 8P™ Looping From Mixer To Next PXI 8P™ (If Applicable) American Audio - www.AmericanAudio.us - PXI 8P™ - Instruction Manual Page 10 © ®...
-
Page 11: Rigging And Mounting
® with the PXI 8P. ™ The Z-APX/B is a heavy-duty bolt and may be used to secure the speaker to a cable or chain. The Z-APX/H is a heavy-duty eyebolt and is used to suspend or secure the speaker using safety cables. - Page 12 These brackets slide into each end of the speaker. Each speaker has its own special sized floor bracket. American Audio - www.AmericanAudio.us - PXI 8P™ - Instruction Manual Page 12 © ®...
-
Page 13: Available Accessories
SPS-1B; weight = 6lbs, pipe diameter - 1 3/8” PXI BR8 - Wall Mounting Brackets - This bracket is helpful for mounting the PXI 8P to a trussing setup or a wall. This is also an alternative to mounting it on a stand. -
Page 14: Warranty
American Audio concludes, after inspection, affects the reliability of the ® product; if the product has been repaired or serviced by anyone other than the American Audio ® factory unless prior written authorization was issued to purchaser by American Audio ;... -
Page 15: Specifications
The specifications are subject to change to any improvement by negotiations in advance. The parts are subject to change to any improvement within the range of the specifications. American Audio - www.AmericanAudio.us - PXI 8P™ - Instruction Manual Page 15 © ®... - Page 16 ©American Audio A Division of the American DJ Group of Companies American Audio World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.AmericanAudio.us E-mail: info@AmericanAudio.us...
