Autostart ASL-150 Installation Manual

K e y l e s s
Included in the Kit................................................1
Installation Points to Remember........................2
Programmable Features......................................2
Harness Description ............................................3
5-pin harness ...............................................3
12-pin harness .............................................3
3-pin connector - 2-wire harness ................3
How to Flash the Hood Pin .................................3
Programming a Transmitter................................3
Entering Programming Options .........................3
Included in the Kit
Please review the installation guide before beginning the installation, especially the wiring diagram and the
programming options. It is very important that you familiarize yourself with the programming and operation of
the system, even if you have already installed an alarm system in the past. There are many great new features
that may be overlooked if the manual is not read: You would therefore not maximize the unit's potential. Prior to
the installation, make sure that all the hardware components required to install the system are in the box.
o 1 - Control unit

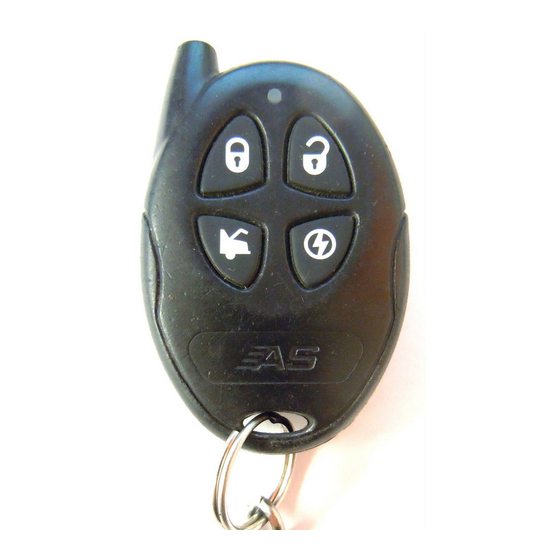

o 2 - 4-button transmitters
o 1 - Siren
(on ASL-350 models only)
o 1 - Plug-in LED
o 1 - Hood pin switch
o 1 - 2-pin wire harness
o 1 - 5-pin main harness
Notice
The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of the product, be
that either damage to the vehicle itself or to the Unit. This Unit must be installed by a certified technician using all safety devices
supplied. Only registered technicians will be eligible to use the Autostart technical support telephone service. Please review the
Installation Guide carefully before beginning any work.
DOC. 1.01 - ASL-150_ASL-350 -
E n t r y
( A S P R G - 1 0 0 0
ASL-150 / ASL-350
Installation Guide

Table of Contents

The following is a list of the components included in the kit:
The kit also includes the following harnesses:
A n d A l a r m
C o m p a t i b l e )
Programming Options .........................................5
Siren / Horn Chirp Duration Adjustment ...........6
Dome Light Delay.................................................7
Retain Accessory Output ....................................7
Zone 2 Disable Output.........................................7
Multi-car Operation ..............................................7
Resetting the Module...........................................7
Diagnostics - Parking Lights Flash Rate...........8
Closing Up ............................................................8
o
o
o
o
o
o
- August 28, 2007 -
S y s t e m
1 - Plug-in shock sensor (
models only)
1 - User guide
1 - Installation guide
1 - Plug-in valet button
1 - 12-pin principal auxiliary harness
1 - 3-pin connector cable
- MO - Assembled in Canada
on ASL-350
