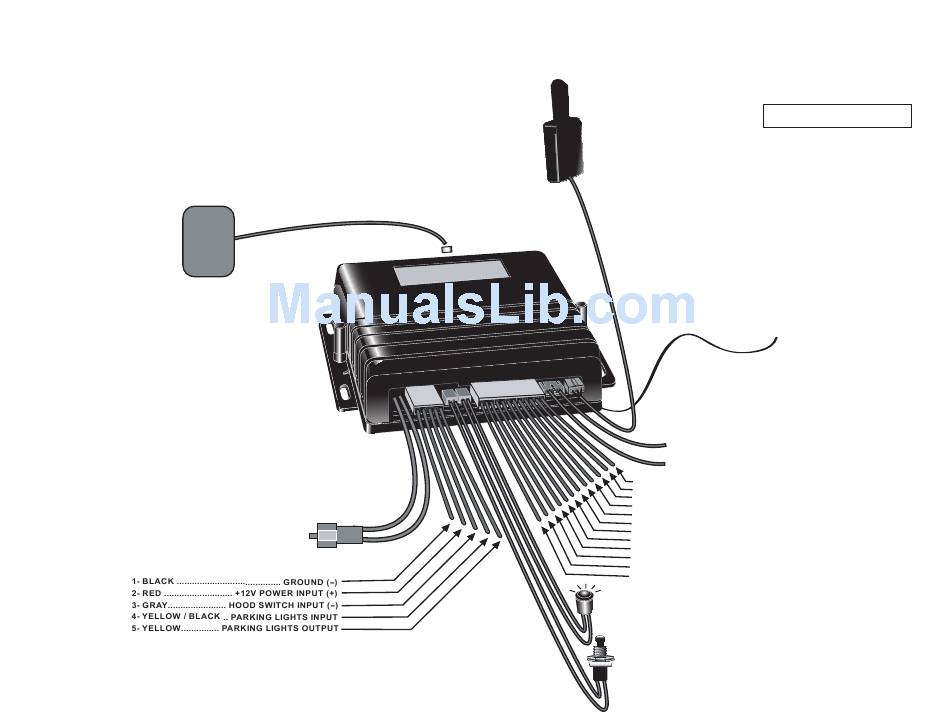

Autostart ASL-300 Wiring Schematic

Keyless Entry And Alarm System

SHOCK
SENSOR
1- PURPLE ........... (+) Starter Input
2- PURPLE ............ (+) Starter Output
WIRING SCHEMATIC
WIRING SCHEMATIC
*** Only available on 2-WAY System
2-WAY ANTENNA CABLE
1-WAY ANTENNA WIRE
3- BROWN ............. (-) Lock
2- N/A ..................... (+) 12V for INV-200 Module
1- GREEN .............. (-) Unlock
12- BLACK/PINK .................. (-) Zone 2 Disable Output
11- BLACK/GREEN .............. (-) Aux 3 Output
10- BLACK/BROWN ............. (-) Aux 2 Output
9- BLACK/BLUE ....... (-) Aux 1 Output
8- GRAY/RED ........................ (+) Pos. Door Trigger Input
7- GRAY/BLACK ................... (-) Neg. Door Trigger Input
6- WHITE/BLUE .................... (-) Horn Output
5- WHITE/RED ...................... (+) Siren Output
4- GRAY/GREEN .................. (-) Negative Trigger Input
3- GRAY/LIGHT BLUE ......... (-) Trunk Input
2- PURPLE ............................ N/A
1- PINK .................................. (+) Ignition Input
PLUG-IN L.E.D.
PUSH-BUTTON
VALET SWITCH
V1.00 TL October 18, 2005
