Installation and Configuration
This document is written assuming that you have already determined the 802.11 topology as described
in the Appliance Mode sections in the Product Guide. Because the Radio Resource Management (RRM)
feature automatically detects and configures the access points as they appear on the network, it is not
necessary to have any access points on the network to install and configure controllers.
The controller is a slim 9 x 5.5 x 1.5 in. (22.9 x 14.0 x 3.8 cm) chassis that can be rack, desktop, or shelf
mounted. As shown in the following figures, the controller is shipped with 19 in. (48.26 cm) EIA
rack-mount ears and four rubber mounting feet.
The following figure shows the controller, which has two front-panel 1000BASE-SX connectors.
The 1000BASE-SX Network Adapters provides 100/1000 Mbps wired connections to a network through
Note
850nM (SX) fiber-optic links using LC physical connectors.

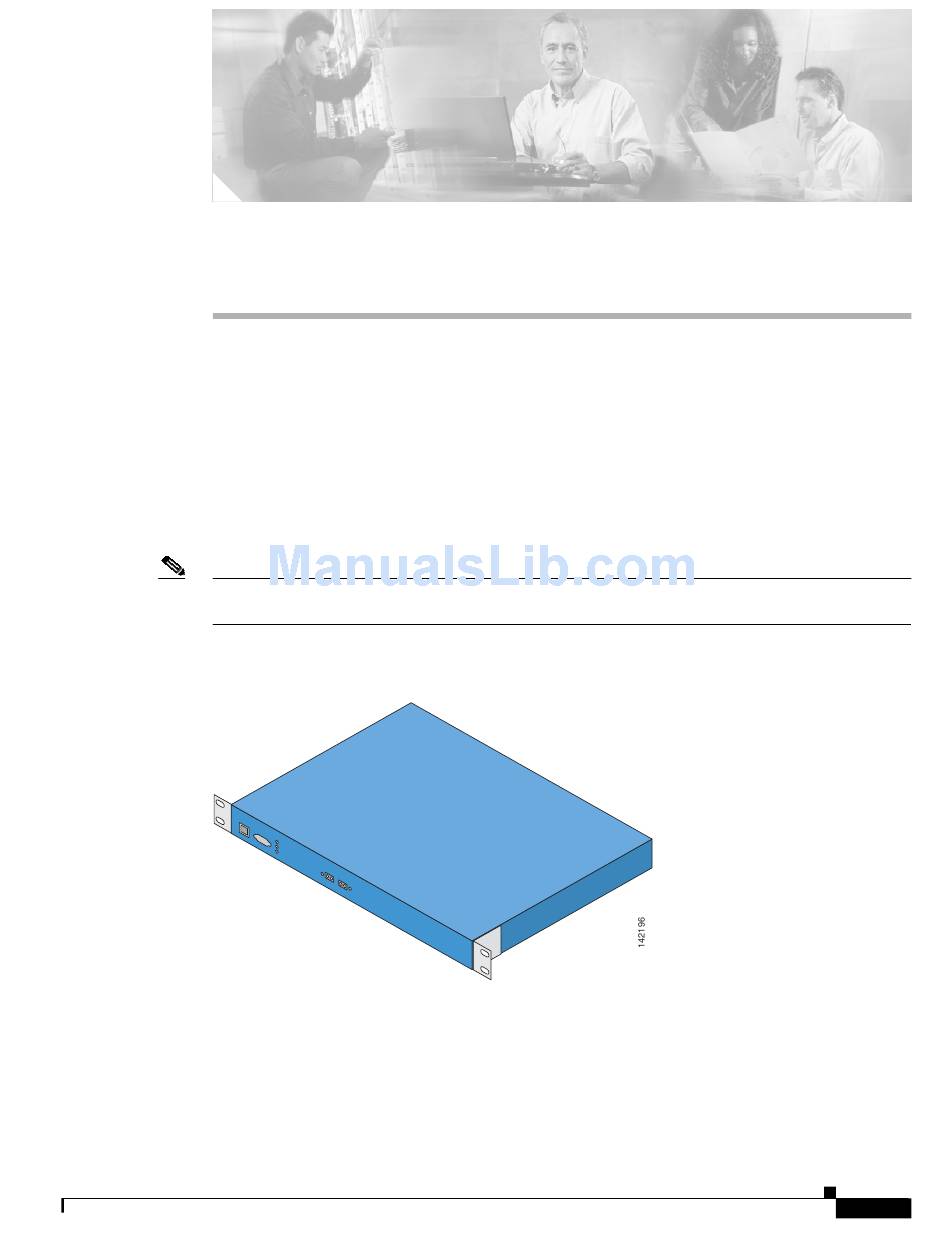

Figure 1
Cisco 4100 Series Wireless LAN Controller
Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide
78-17155-01
1
Advertisement
Table of Contents
Related Manuals for Cisco Cisco Wireless LAN Controller 4100
Summary of Contents for Cisco Cisco Wireless LAN Controller 4100
-
Page 1: Installation And Configuration
The 1000BASE-SX Network Adapters provides 100/1000 Mbps wired connections to a network through Note 850nM (SX) fiber-optic links using LC physical connectors. Figure 1 Cisco 4100 Series Wireless LAN Controller Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01... - Page 2 12 associated Cisco 1000 Series lightweight access points (Model 4112). • 24 associated Cisco 1000 Series lightweight access points (Model 4124). • 36 associated Cisco 1000 Series lightweight access points (Model 4136). • Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01...
-
Page 3: Collecting Required Tools And Information
Null modem serial cable to connect CLI console and the controller DB-9 console port. • Local TFTP Server This is required for downloading error-free software updates. (Contact Cisco Technical Assistance Center (TAC) for software updates.) Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide... -
Page 4: Initial System Configuration Information
Installation and Configuration Collecting Required Tools and Information The Cisco WCS uses an integral TFTP server. This means that third-party TFTP servers cannot run on Note the same workstation as the Cisco WCS, because the Cisco WCS and the third-party TFTP servers use the same communication port. -
Page 5: Determining A Physical Location
Produit laser de classe 1. Warnung Laserprodukt der Klasse 1. Avvertenza Prodotto laser di Classe 1. Advarsel Laserprodukt av klasse 1. Aviso Produto laser de classe 1. ¡Advertencia! Producto láser Clase I. Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01... - Page 6 Laserprodukt av klass 1. Aviso Produto a laser de classe 1. Advarsel Klasse 1 laserprodukt. Ensure that the power cord can reach a 110 or 220 VAC grounded electrical outlet. • Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01...
-
Page 7: Installing The Chassis
Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo. ¡Advertencia! Varning! Endast utbildad och kvalificerad personal bör få tillåtelse att installera, byta ut eller reparera denna utrustning. Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01... - Page 8 When you are mounting the controller in an EIA-standard rack, attach the ears to the equipment rack • using the factory-supplied screws. You can remove the rubber feet from the bottom of the controller, if desired. Note You have installed the controller chassis. Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01...
-
Page 9: Connecting And Using The Cli Console
When you plug the controller into an AC power source, the bootup script initializes the system, verifies the hardware configuration, loads its microcode into memory, verifies its Operating System software load, and initializes itself with its stored configurations. Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01... - Page 10 (Enter 1 to run the current Code, enter 2 to run the previous Code, enter 4 to run the current Code and clear the controller configuration to factory defaults. Do not enter 3 unless directed to do so by Cisco Technical Assistance Center (TAC).)
-
Page 11: Using The Startup Wizard
Enter the Administrative user name and password, each up to 24 printable ASCII characters. The default Administrative user name and password are admin and admin, respectively. The Service-Port and Management Interfaces must be on different subnets Note Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01... -
Page 12: Connecting The Network (Distribution System)
Note (SX) fiber-optic links using LC physical connectors. Depending on the distribution system physical port to be assigned as explained in Cisco Wireless LAN Controller Interfaces section in the Product Guide, use CAT-5, CAT-5e, CAT-6, or CAT-7 ethernet cables or LC compatible fiber-optic cable to connect the network equipment to the controller. -
Page 13: Connecting The Service Port Interfaces
You can connect any of the Cisco Wireless Control System, Web User Interface, or CLI console directly to the secure front-panel Service Port. You can connect any or all of the Cisco Wireless Control System, Web User Interface, or CLI •... - Page 14 For a front-panel Cisco Wireless Control System, Web User Interface, or CLI console connection, • use CAT-5, CAT-5e, CAT-6, or CAT-7 ethernet cables to connect the Cisco Wireless Control System (Cisco WCS) Server, Web User Interface, or another CLI console to the dedicated front-panel Service port.
-
Page 15: Connecting Access Points
You have completely installed the controller hardware. Register your controller. • Refer to the Configuring the Cisco Wireless LAN Controllers in the Product Guide for more • information on configuring the controller. Refer to the Product Guide for more information on configuring, operating, maintaining and •... - Page 16 Installation and Configuration Where to Go from Here Cisco 4100 Series Wireless LAN Controllers - Installation and Configuration Guide 78-17155-01...
