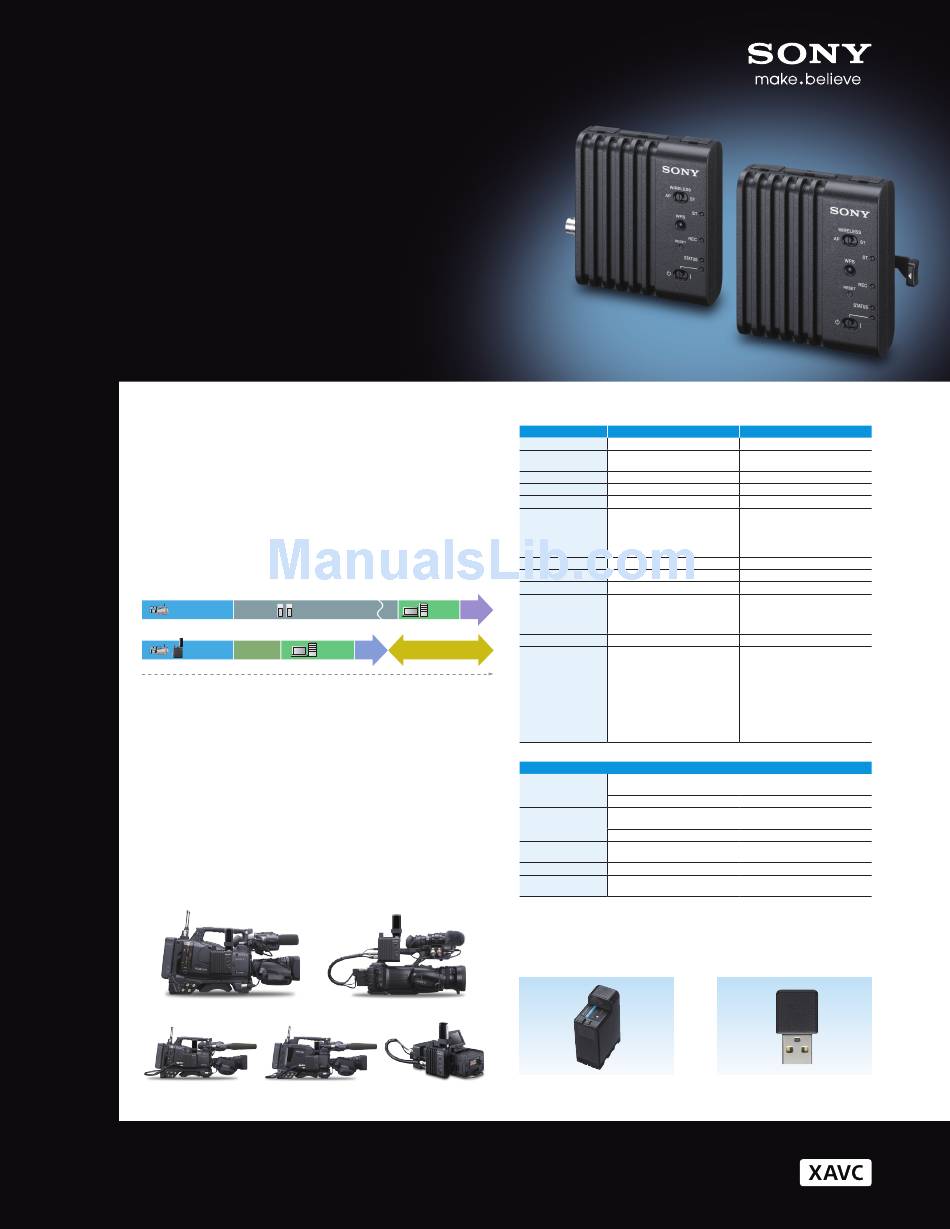

Sony CBK-WA100 Brochure & Specs

CBK-WA100/CBK-WA101
Wireless Adapters
In response to the rapidly growing demand for faster and cost efficient IT and
network operation, Sony is proud to introduce the CBK-WA100/CBK-WA101 to
enhance the field operation and workflow. Both wireless adapters support
Wi-Fi, 3G/4G, and LTE transmission to meet the needs of most shooting
environments, promptly transmitting both proxy data and high-resolution*
data. Compatible by design, it connects with mobile devices such as
2
smartphones and tablets* . As well as supporting TV program production
in the field, these adapters are an ideal choice for ENG professionals when
the speed of news gathering is critical.
*1 Requires a USB connection. Some models are not supported.
*2 Supports Android OS (Version 4.1 and later) and iOS (Version 7).
Features
Save Time and Cost
Users can transmit proxy files via Wi-Fi/3G/4G/LTE from field locations
immediately after shooting. This saves considerable time and cost of
content delivery, especially when the task is time critical. Also, if the
camcorder is not able to create proxy data - the wireless adapter can
create an XAVC proxy file which is compatible with most general viewer
applications. In addition, high-resolution files can be transferred using
the USB connection* 3 .
*3 Some models are not supported.
Lead Time without Wireless Data Transfer
Shooting
Lead Time with Wireless Adapter
Shooting
File Transfer
Simple Installation
It's easy to install the adapter to Sony's existing camcorders and decks
using BNC and DC power cables. For even simpler connection, the
CBK-WA101 is designed especially for the PMW-400, requiring no cable
connections of BNC and DC power cables at all, just an easy attach/
detach mechanism.
When the wireless adapter is connected to camcorders/decks using a
USB cable, users can enjoy the full features of the adapter such as high
resolution file transmission, basic remote camera control, wireless
adapter status indication on the viewfinder and more.
The wireless adapter can be used with the following models:
PMW-500/400/300/200/160/50 (with USB connection)
PMW-320, PDW-F800/700 (with HD-SDI connection)
PMW-400 Series
PMW-500/HD02 PDW-700
Media Transport Editing Air
Save All of This Time!
Editing Air
Time
PMW-300K1
PMW-50
1

Specifications

CBK-WA100
Weight Approx. .48lbs (220 g)
Dimensions (W x H x D) 3 x 3-1/2 x 1 inches
(84 x 95 x 30 mm) without projection
Power Requirements DC 12 V
Power Consumption 4.5W (exclusive of external USB devices)
Operating Temperature +32°F to +104°F (0°C to +40°C)
Proxy Format (Video) XAVC Proxy (AVC/H.264 Main Profile,
4:2:0 Long GOP)
- 1280x720, 9M (VBR)
- 640x360, 3M (VBR)
- 480x270, 1M (VBR)
Proxy Format (Audio) AAC-LC, 2ch,128kbps for Stereo
DC Input 4-pin (male)
HD-SDI Input BNC (x1)
USB USB device mini B Type (x1),
for Camcorder
host A Type (x2), for Wireless LAN USB
Device and 3G/4G/LTE modem
Recording Media* SD Card Slot (x1)
Supplied Accessories Bracket (2)
Guard Bracket (1)
Guard Cushion (2)
DC Cable (1)
BNC Cable (1)
USB Cable (1)
Fixing Screw (5)
CD-ROM (incl. Operation Manual) (1)
Installation Manual (1)
Before Using This Unit (1)
* Support SDHC Class4 and higher (SDXC should not be used, i.e. the maximum capacity is 32GB.)
Items not supplied in the package of Wireless Adapter
USB dongle* If you use wireless connection, you need a Wireless LAN USB Device (IEEE
802.11b/g/n compliant) or a 3G/4G/LTE Modem.
Sony Product Wireless LAN USB Device IFU-WLM3 is recommended.
Smartphone or Tablet To view a streaming content, a terminal (a Smartphone or a Tablet) and an
application software (Content Browser Mobile) are required.
Recommended models : Xperia Z, Xperia Tablet Z and later Xperia models
Application Software Supported OS : Android 4.1 and later
(Content Browser Mobile)
SD media Need a media compatible with*
Others Other than the mentioned above, need a system to connect to an On-Premises Server
or a Sony's recommended Cloud Service if transferring the file over WAN.
* Requires a third-party contract to transfer files via Wireless LAN/3G/4G/LTE (carrier availability varies in different
countries/areas).The file transfer function does not allow simultaneous use of Wi-Fi and 3G/4G/LTE devices.
A Wireless LAN USB Device and a 3G/4G/LTE Modem cannot be used simultaneously for File Transfer function.
Accessories
BP-U60T
Li-Ion Battery Pack with DC power output
CBK-WA101
Approx. .48lbs (220 g)
3 x 3-1/2 x 2-5/32 inches
(84 x 95 x 55 mm) without projection
DC 12 V
4.5W (exclusive of external USB devices)
+32°F to +104°F (0°C to +40°C)
XAVC Proxy (AVC/H.264 Main Profile,
4:2:0 Long GOP)
- 1280x720, 9M (VBR)
- 640x360, 3M (VBR)
- 480x270, 1M (VBR)
AAC-LC, 2ch,128kbps for Stereo
-
-
USB device mini B Type (x1),
for Camcorder
host A Type (x2), for Wireless LAN USB
Device and 3G/4G/LTE modem
SD Card Slot (x1)
Bracket (2)
Guard Bracket (2)
Guard Cushion (2)
-
-
USB Cable (1)
-
CD-ROM (incl. Operation Manual) (1)
Installation Manual (1)
Before Using This Unit (1)
1
IFU-WLM3
USB Wireless LAN Module
