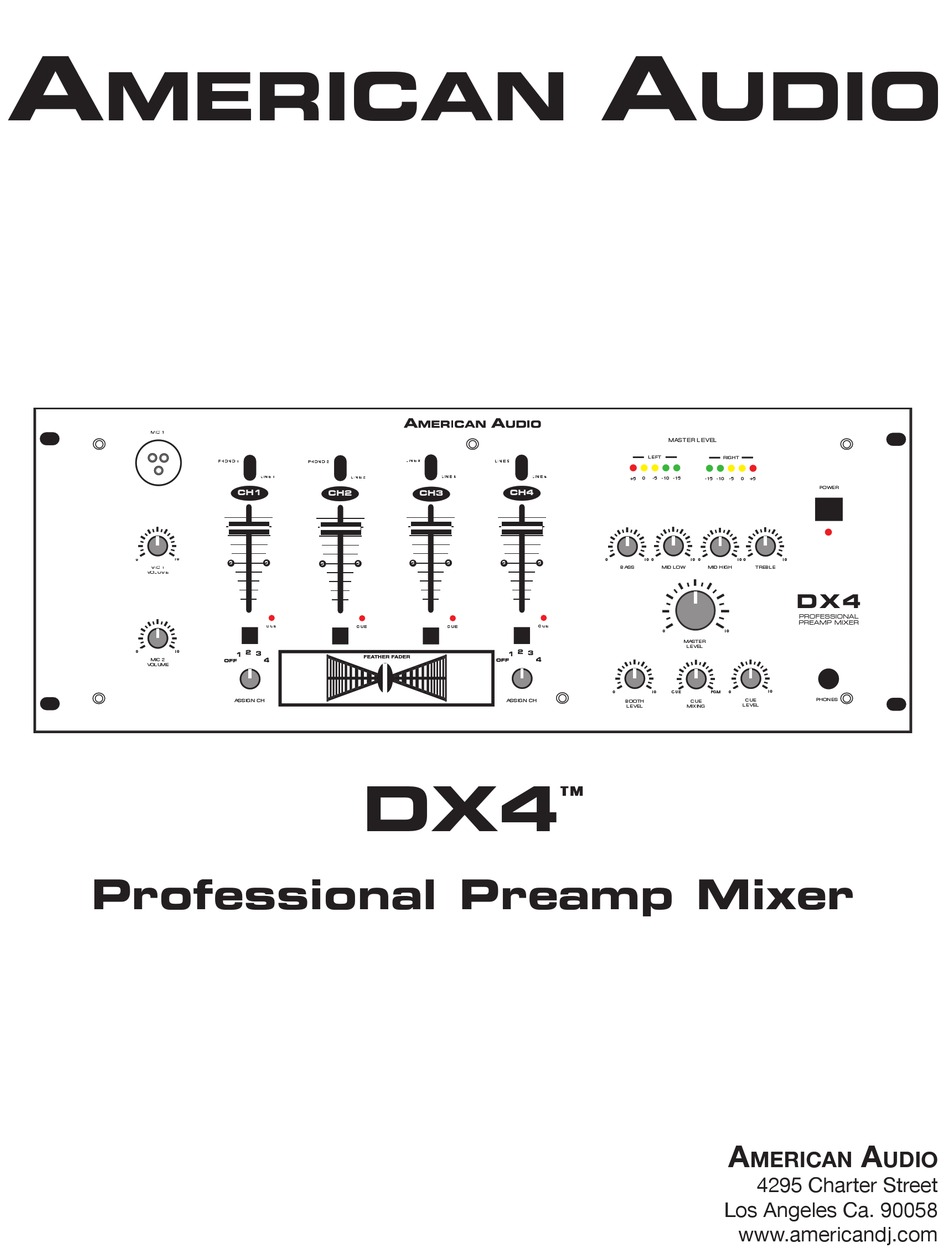

- Page 1 MIC 1 PHONO 1 PHONO 2 LINE 1 ��� ��� MIC 1 VOLUME � � � � MIC 2 ��� VOLUME ASSIGN CH Professional Preamp Mixer LINE 3 LINE 5 LINE 2 LINE 4 LINE 6 ��� ��� � � �...
- Page 2 This mixer is a representation of American Audio’s continuing commitment to produce the best and highest quality audio products possible at an affordable price. The DX4 mixer is a four channel mixer and includes and assignable crossfader, a four band EQ, two mic inputs and other fea- tures normally only included in expensive mixers.
-
Page 3: Safety Precautions
• 2 Phono, & 6 Line Level Inputs • Split Cue Monitoring • Assignable Crossfader • Separate Booth Level Output • Balanced XLR Outputs • 2 Mic Inputs - www.americandj.com - DX4™ Instruction Manual Page 3 ® Safety Precautions Main Features... - Page 4 The DX4™ is part of American Audio’s continu- ing evolution in audio technology. This unit has been built and designed with the typical DJ in mind, by DJ’s. We have attempted to provide you with the most reliable product on the market by using only components made from quality products.
-
Page 5: Top Panel
6. MASTER OUTPUT 4-BAND EQ - The DX4 includes a 4-band master output EQ. The adjustable EQ bands are bass, mid low, mid high, treble. These knobs are used to increase (+20dB) or decrease (-30dB) the band width of each frequency applied to the output source signal. - Page 6 16 ohm, these are highly recommended. Always be sure the CUE LEVEL VOLUME (12) is set to minimum before you put the headphones on. American Audio © MIC 2 INPUT JACK (30). MIC 2 INPUT JACK - www.americandj.com - DX4™ Instruction Manual Page 6 ® Controls and Features Cont. Turning the knob...
-
Page 7: Rear Panel
“Phono” inputs. The red colored RCA jack represents the right channel input and the white represents the left channel input. Input volume will be controlled by the channel three FADER (4). American Audio © - www.americandj.com - DX4™ Instruction Manual Page 7 ® Controls and Features Cont. -
Page 8: Volume Knob
31. MICROPHONE 2 CONNECTOR - This jack is used to a connect a microphone to the mixer. Con- nect you microphone via 1/4 inch (6.3mm) jack. The signal volume will be controlled by the MIC 2 VOLUME KNOB (1). American Audio - www.americandj.com - DX4™ Instruction Manual Page 8 © ®... -
Page 9: Typical Mixer Set-Up
��� � � � ������� ����� � ��� ASSIGN CH � � � � �� � � � - www.americandj.com - DX4™ Instruction Manual Page 9 ® Typical Mixer Set-Up MASTER LEVEL LEFT RIGHT -10 -15 -15 -10 BASS MID LOW... - Page 10 � � ������� ����� � ��� ASSIGN CH Stereo RCA XLR-XLR Balanced cables XLR-XLR Balanced cables Speaker Cables - www.americandj.com - DX4™ Instruction Manual Page 10 ® Typical Mixer Set-Up MASTER LEVEL LEFT RIGHT -10 -15 -15 -10 POWER BASS...
-
Page 11: Replacing The Crossfader
DX4™ The crossfader is “Hot Swappable” which means it may be replaced at any time, even when power is applied. Only replace with American Audio Feather Fader Plus. Replacing with any other model fader may seriously damage your mixer. Replacing the Crossfader: 1. -
Page 12: Year Limited Warranty
DX4™ The DX4™ carries a two year limited warranty. We recommend you fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a R.A.(return authorization) number. If the mixer is under warranty, you must provide a proof of purchase invoice. -
Page 13: Channel Equalizer
DX4™ Technical Specifi cations - Model: DX4, 4 Channel Audio Mixer. POWER SUPPLY: DIMENSIONS: WEIGHT: CROSSFADER: POWER CONSUMPTION: HEADPHONE IMPEDANCE: ENVIRONMENTAL CONDITION: INPUT SENSITIVITY: LINE: PHONO: MICROPHONE: OUTPUT SENSITIVITY: MASTER OUT: HeadPHONES: FREQUENCY RESPONSE: LINE: PHONO: MICROPHONE: SIGNAL TO NOISE RATIO: (MAXIMUM OUTPUT):... - Page 14 ©American Audio® American Audio World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.americandj.com E-mail: info@americandj.com...
