RS232 Commands and Protocol

Function List

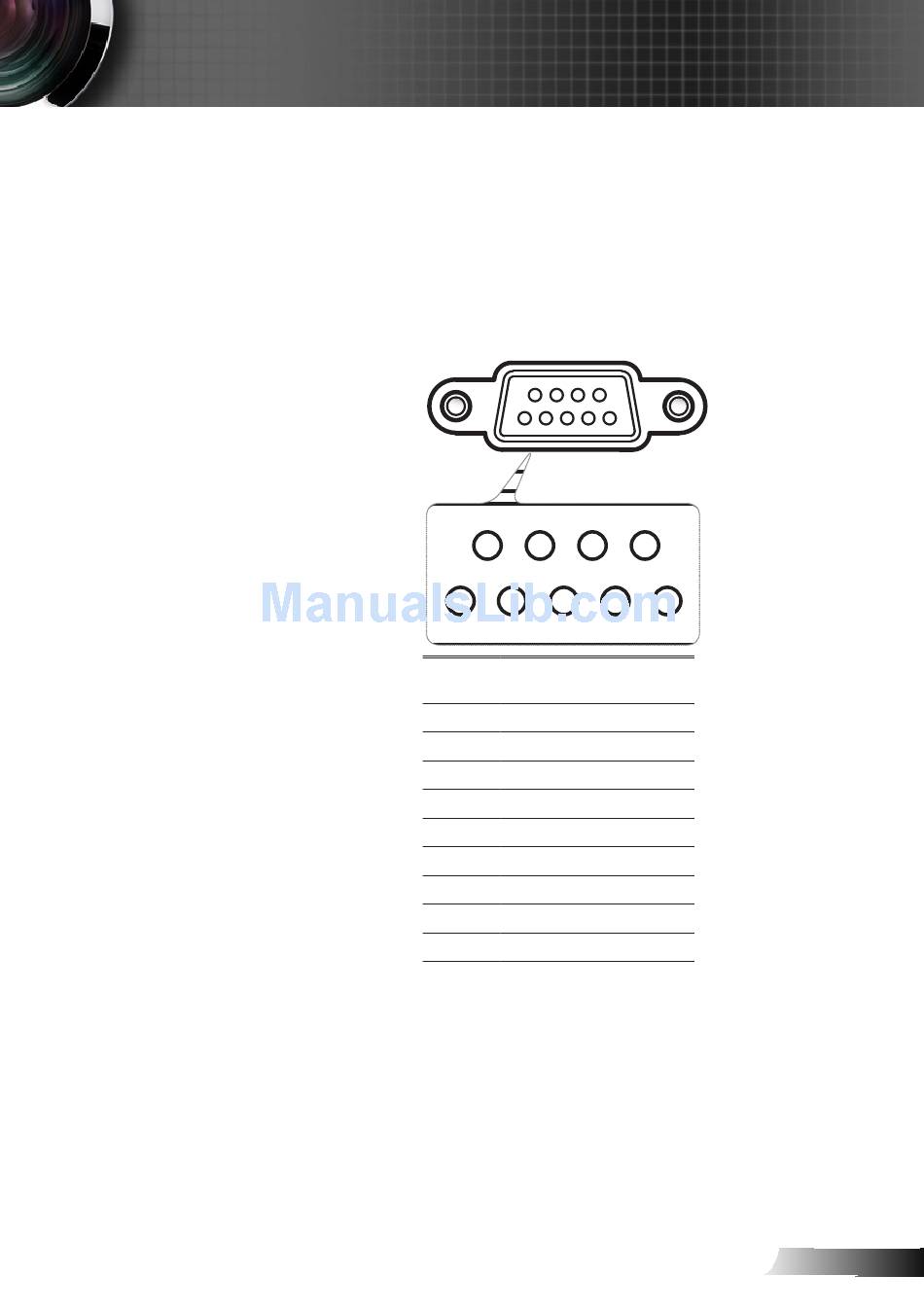

RS232 Pin Assignments

Appendices

9
8
7
5
4
3
Spec.
Pin no.
(from projector side)
1
N/A
2
RXD
3
TXD
4
N/A
5
GND
6
N/A
7
N/A
8
N/A
9
N/A
6
2
1
69
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optoma X401

Summary of Contents for Optoma X401

  • Page 1: Function List

    Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments Spec. Pin no. (from projector side) English...

  • Page 2: Rs232 Protocol Function List

    Baud Rate : 9600 XX=00 is for all projectors Data Bits: 8 Parity: None There is a <CR> ™ Optoma W401/X401 Command Table. Stop Bits: 1 after all ASCII com- --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- mands. Flow Control : None Baud Rate : 9600 Note : There is a <CR>...
  • Page 3 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX45 n 7E 30 30 34 34 20 a 0D Color (Saturation) n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX44 n 7E 30 30 34 35 20 a 0D Tint n = -50 (a=2D 35 30) ~ 50 (a=35 30) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX60 1 7E 30 30 36 30 20 31 0D...
  • Page 4 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX89 0 7E 30 30 38 39 20 30 0D Audio Input Default ~XX89 1 7E 30 30 38 39 20 31 0D Audio1 ~XX89 3 7E 30 30 38 39 20 33 0D Audio2 ~XX89 4 7E 30 30 38 39 20 34 0D Audio3 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1...
  • Page 5 : Display mode 0/1/2/3/4/5/6/7/8 None/Presentation/Bright/Movie/sRGB/ User/Blackboard/DICOM SIM./3D ~XX151 1 7E 30 30 31 35 31 20 31 0D Model name n : 1/2=X401/W401 ~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour...
