X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide
Contents
● Product Description
● Cabinet Dimensions
● Installation Notice
● Lens Spec
● Image Size & Projection Distance & Diagrams
● Lens Shift Adjustment Range
● Back Panel
● PC Control Codes/ Cable Connections

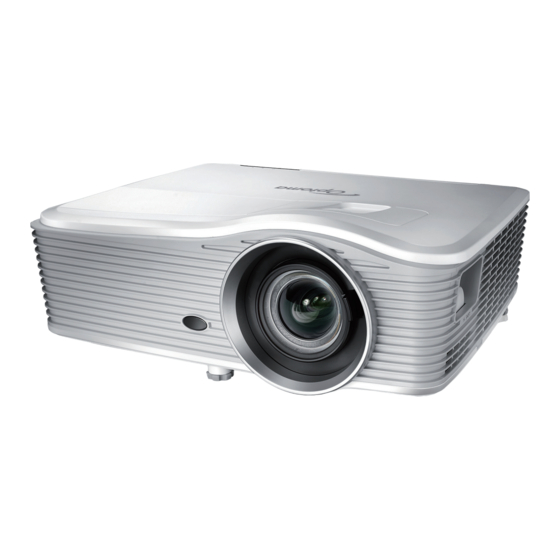

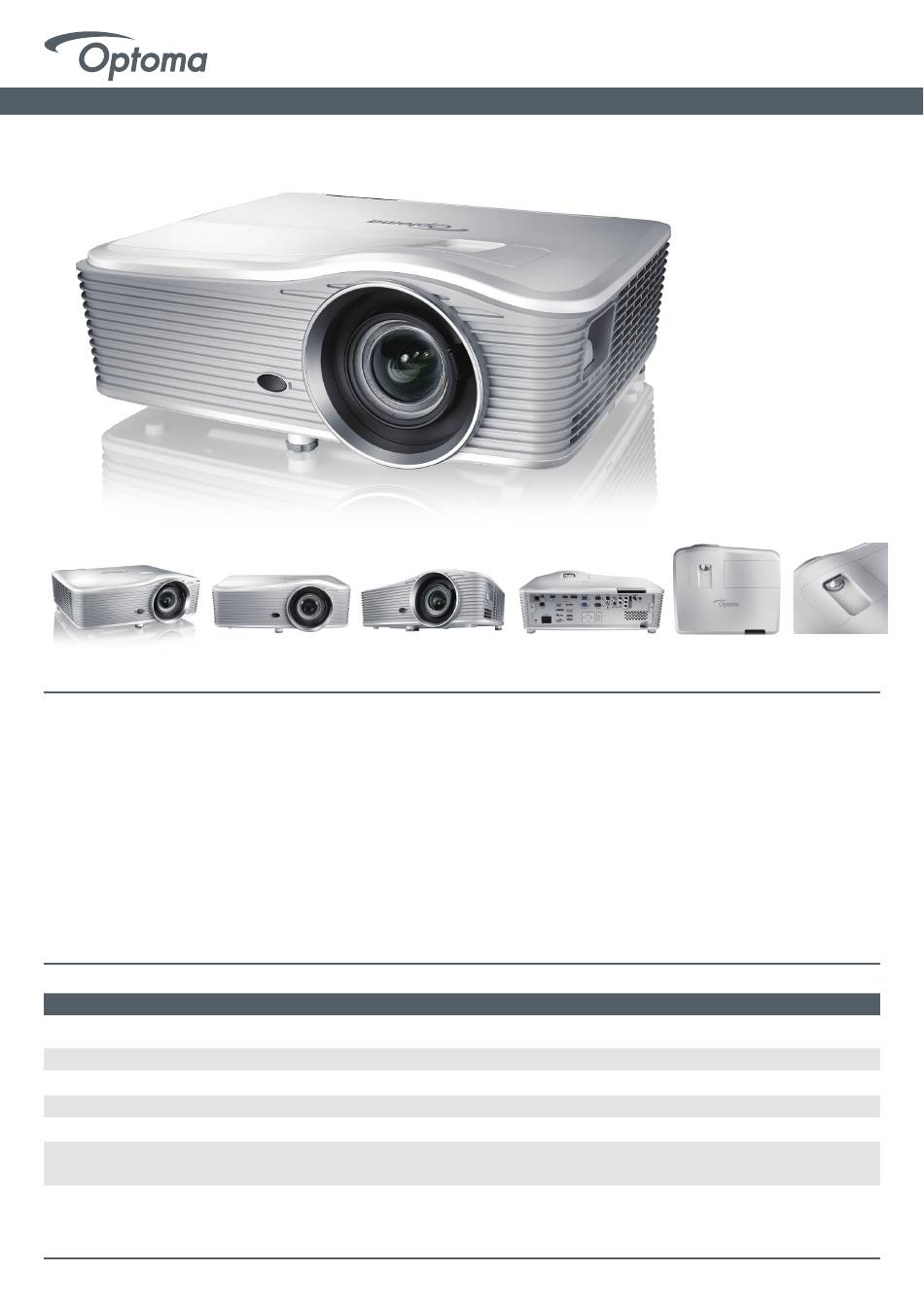

Product Description
X515ST
Resolution
XGA 1024*768
Brightness
6000lm
Dimensions
Weight
Noise
Power
consumption
BTU/hr
Installation Manual
W515ST
EH515ST/EH515TST
WXGA 1280*800
1080p 1920*1080
5500lm
5000lm
424 x 344 x 120 (w/o feet)
6.1kg
35/32 dB
445W / 355W (110 VAC)
425W / 340W (220 VAC)
1672
X515ST
W515ST
EH515ST
EH515TST
WU515ST
WU515TST
WU515ST/WU515TST
WUXGA 1920*1200
5500lm
01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Optoma X515ST
Summary of Contents for Optoma X515ST
- Page 1 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide X515ST W515ST EH515ST EH515TST WU515ST WU515TST Contents ● Product Description ● Cabinet Dimensions ● Installation Notice ● Lens Spec ● Image Size & Projection Distance & Diagrams ●...
- Page 2 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide Cabinet Dimensions POWER CORD LOCATION IR RECEIVER Air Inlet Air Outlet Lamp door LENS SHIFT KNOB LENS SHIFT KNOB FOCUS RING IR RECEIVER Installation Manual...
- Page 3 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide Cabinet Dimensions CELING MOUNT SCREW HOLD 3-M4x7 mm ADJUSTABLE FEET Lens Spec X515ST W515ST EH515ST/EH515TST WU515ST/WU515TST Throw ratio 0.82 0.83 0.79 0.79 F/2.5; f=11.66mm F# / Focal Length...
- Page 4 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide SETUP AND INSTALLATION Projector installation notice Place the projector in a horizontal position. The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.
- Page 5 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide Image Size & Projection Distance & Diagrams (WUXGA) Lens Shift Range Projection Desired Image Size PJ lens Center to top of image Image Shift Range Distance (C)
- Page 6 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide Image Size & Projection Distance & Diagrams (WXGA) Lens Shift Range Projection Desired Image Size PJ lens Center to top of image Image Shift Range Distance (C)
- Page 7 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide Lens Shift Diagrams 1. Center of projection lens. 2. Projection image while lens shift at the highest position. 3. Horizontal shift range: 10% H. 4. Vertical shift range: 20% V.
- Page 8 X515ST / W515ST / EH515ST / EH515TST / WU515ST / WU515TST Installation Guide PC Control Codes RS232 protocol function list Baud Rate : 9600 Data Bits: 8 ASCII code Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable...
