Optoma EH7700 Brochure
Wuxga 7500 center lumens lens shift extensive lens options dual lamp
Hide thumbs
Also See for EH7700:
- Installation (2 pages) ,
- Specification (15 pages) ,
- Overview (19 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Installation
Advertisement
Table of Contents
Related Manuals for Optoma EH7700
Summary of Contents for Optoma EH7700

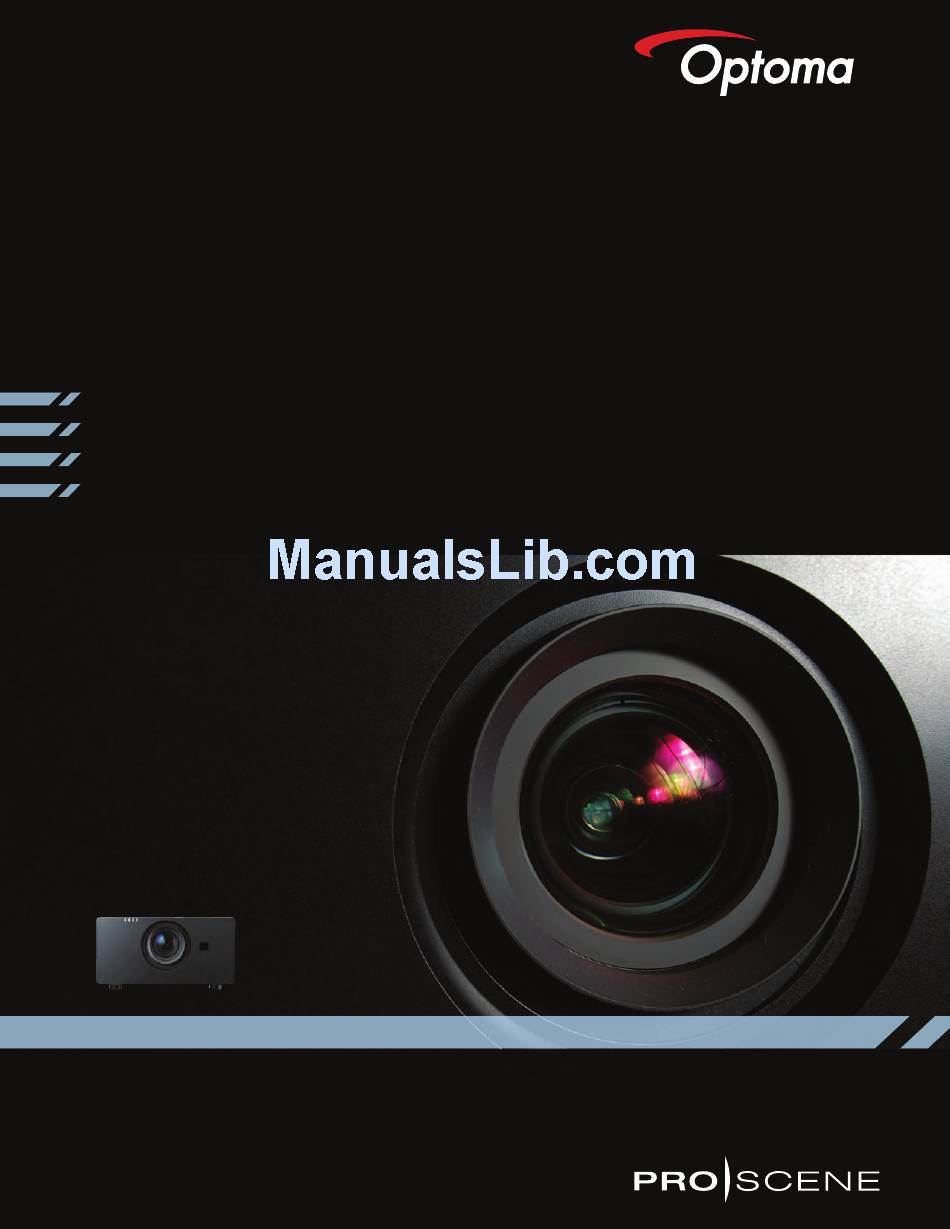

- Page 1 Projector Expert EH7700 WUXGA 7500 Center Lumens Lens shift Extensive lens options Spectacular image quality, outstanding Dual lamp brightness and ultimate reliability...
- Page 2 Introduction The Optoma ProScene Series is an elite line up of projectors designed for challenging applications that demand a maximum level of technical ingenuity, quality manufacturing and specialized support services. Each ProScene projector delivers outstanding brightness and unsurpassed image quality.
- Page 3 Features EH7700 features 7500 Center Lumens, WUXGA Resolution, Dual Lamp Installation flexibility - 5x Motorized Lens options and 360˚ Operation 360º Live performance ready - Mechanical shutter, safety mounting points and flying frame options Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands...
-
Page 4: Image Quality
Image Quality Superb image quality is at the heart of every Optoma ProScene product design. At every step, starting from the incredibly reliable, high resolution WUXGA DLP chip, where the image is initially created, via the P-VIP lamp pulsing technology that fine tunes the ®... - Page 5 The dust-sealed,filter-free design in the Optoma EH7700 prevents dust and dirt from affecting the system – ensuring optimal image quality with minimal maintenance. ProScene customers can therefore be confident that, as one of the most reliable projector brands in the industry today, Optoma has a reputation for service excellence that is well deserved. Dual Lamps Technology ®...
-
Page 6: Installation Flexibility
Two color wheel options ensure the performance characteristics Lens Position: Center -20% of the EH7700 can be tailored to match the application. The standard color wheel maximizes brightness while ensuring good color reproduction, whereas the enhanced-color “video” wheel maximizes color performance and accuracy. The color wheels are interchangeable modules and can be fitted or exchanged on site without removing the projector cover. -
Page 7: Mechanical Shutter
In situations where only absolute darkness is good enough, the To complewment the existing ceiling mount, Kensington lock and EH7700 has a mechanical shutter to provide total blackout. Perfect for password security features of all ProScene models, the EH7700 scene changes during live performances. - Page 8 System Integration Control Multiple Optoma EH7700 projectors can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails or needs to be replaced, using Crestron Roomview. While the web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH7700 to be controlled across a network, keeping you in control, wherever you are.
-
Page 9: Lens Options
7.8 ~ 248.7 Projection Image Size 30” ~ 500” inches Motorized Lens Shift Fixed Horizontal: + / - 10% offset Vertical:- 20%~ + 60% offset Throw Distance Chart EH7700 Throw Distance Diagonal Image Size BX-DLWT1 BX-DLWT2 BX-DLST1 BX-DLTZ1 BX-DLTZ2 Fixed (m) -
Page 10: Eco Friendly
We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. - Page 11 Dimensions...
-
Page 12: Input/Output Connections
Labelling Easy to use remote control 1 Power On 2 Mechanical Shutter 3 Function 2 (user assigned) 4 Display Mode 5 Freeze 6 Lens Zoom +/- 7 Remote ID (All) 8 HDMI 2 9 HDMI 1 10 DVI (dependent on model) 11 Information Panel 12 Re-Sync 13 Video... -
Page 13: Technical Specifications
Technical Specifications Projector DLP™ Technology by Texas Instruments Technology 0.67” WUXGA, DC3,Type A chip Resolution Native WUXGA (1920 x 1200) Brightness - Dual Lamp 7000 ANSI lumens / 7500 center lumens using standard lens and “Bright” color wheel Aspect Ratio 16:10 native, 4:3 &... -
Page 14: Specifications
Six- segment video-tuned color wheel designed for applications that require the finest level of video performance and accuracy. Bright Data Color Wheel Part #: BZ-8JN06 The Optoma EH7700 ships standard with a six-segment enhanced data color wheel designed to deliver maximum presentation performance and color fidelity. - Page 15 24/7 Maintenance with Loaner Unit (Provides maintenance 1 time during the warranty period. Maintenance is required every 10,000 hours in 24/7 applications.) Image courtesy of artist Micah Stansell, The Water and the Blood, High Museum of Art, Atlanta GA. Photo by Blake Williams. Projectors by Optoma.
- Page 16 Accessories Continued Optimized edge blending (Available direct from Optoma) Optoma have worked in partnership with Calibre to produce special versions of Calibre’s edge blending and warping products optimized for use with our ProScene projectors. This unique collaboration significantly reduces the complexity and...
- Page 17 Offices Worldwide technical and commercial support Optoma USA Local Representatives China Turkey Shanghai Office 5F, No. 1205 Kaixuan Road, Changning Optoma USA Headquarters District , Shanghai 3178 Laurelview Ct. Tel: +86-21-6294-7376 Poland Fremont, CA 94538 Fax: +86-21-6294-7375 Tel: (510) 897-8600 Russia http://www.optoma.com.cn...
- Page 18 While every care is taken to provide accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us to add an Optoma logo to the front panel. Optoma...
