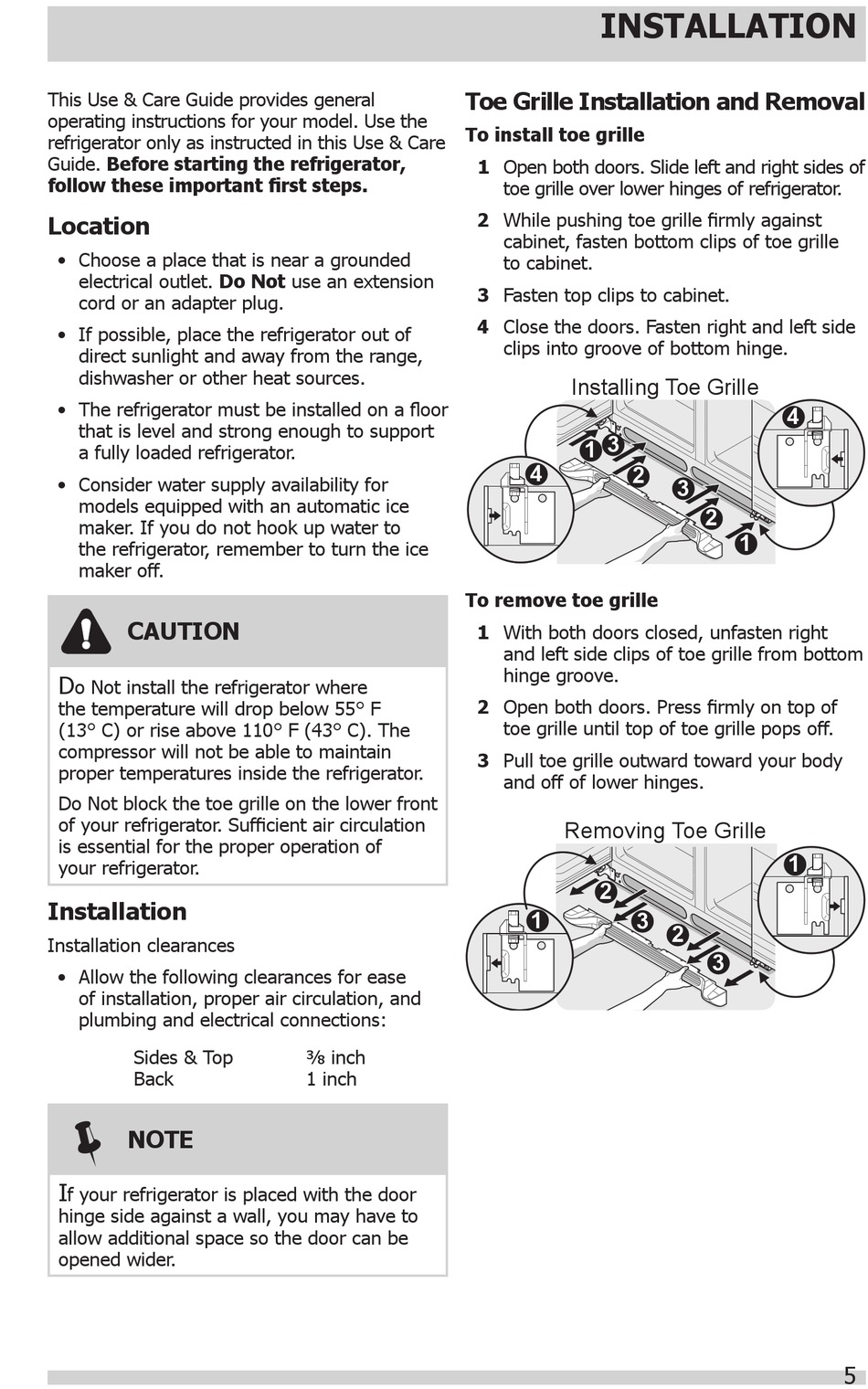

Installation - Frigidaire FGHC2355PF Use And Care Manual

This Use & Care Guide provides general
operating instructions for your model. Use the
refrigerator only as instructed in this Use & Care
Guide. Before starting the refrigerator,
follow these important first steps.
Location
• Choose a place that is near a grounded
electrical outlet. Do Not use an extension
cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
• The refrigerator must be installed on a floor
that is level and strong enough to support
a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice
maker. If you do not hook up water to
the refrigerator, remember to turn the ice
maker off.
CAUTION
D
o Not install the refrigerator where
the temperature will drop below 55° F
(13° C) or rise above 110° F (43° C). The
compressor will not be able to maintain
proper temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of
your refrigerator.

Installation

Installation clearances
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top
Back

NOTE
I
f your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
Toe Grille Installation and Removal
To install toe grille
To remove toe grille
⅜ inch
1 inch
INSTALLATION
1 Open both doors. Slide left and right sides of
toe grille over lower hinges of refrigerator.
2 While pushing toe grille firmly against
cabinet, fasten bottom clips of toe grille
to cabinet.
3 Fasten top clips to cabinet.
4 Close the doors. Fasten right and left side
clips into groove of bottom hinge.
Installing Toe Grille
3
1
4
2
1 With both doors closed, unfasten right
and left side clips of toe grille from bottom
hinge groove.
2 Open both doors. Press firmly on top of
toe grille until top of toe grille pops off.
3 Pull toe grille outward toward your body
and off of lower hinges.
Removing Toe Grille
2
1 3
4
3
2
1
1
2
3
5
