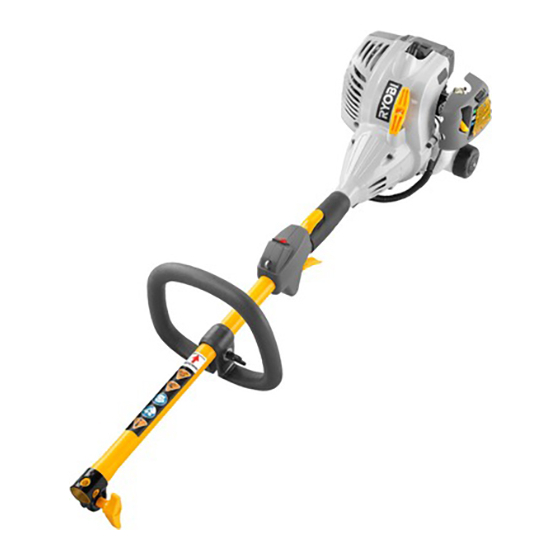

- Page 1 RYOBI 26cc STRING TRIMMERS MODEL NUMBERS RY28100, RY28120 and RY28140 (ALL VERSIONS) REPAIR SHEET...
- Page 2 Ryobi 26 cc StRing tRimmeRS model numbeRS – Ry28100, Ry28120 & Ry28140 FIGURE A SEE FIGURE B...
- Page 3 Ryobi 26 cc StRing tRimmeRS model numbeRS – Ry28100, Ry28120 & Ry28140 PARTS LIST (FIGURE A) PART PART NUMBER DESCRIPTION NUMBER DESCRIPTION 660563002 Screw (M4 x 20 mm) ..........4 678008001 Washer ..............1 308869002 Control Handle Assembly ........1 518949001 Wing Nut ...............
- Page 4 Ryobi 26 cc StRing tRimmeRS model numbeRS – Ry28100, Ry28120 & Ry28140 FIGURE B...
- Page 5 Ryobi 26 cc StRing tRimmeRS model numbeRS – Ry28100, Ry28120 & Ry28140 PARTS LIST (FIGURE B) PART PART NUMBER DESCRIPTION NUMBER DESCRIPTION 525485002 Starter Grip .............. 1 308054077 Carburetor Assembly ..........1 900849012 Starter Rope ............1 901552001 Outer Heat Dam Gasket .......... 1 660466001 Screw (M4 x 18 mm) ..........
- Page 6 Ryobi 26 cc StRing tRimmeRS model numbeRS – Ry28100, Ry28120 & Ry28140 FIGURE C FIGURE C MODEL MODEL RY28140 RY28120 Key Service Key Service Number Description Qty. Number Description Qty. 940726013 Logo Label ...................1 940726013 Logo Label ................... 1 940657032 Warning Label ................
