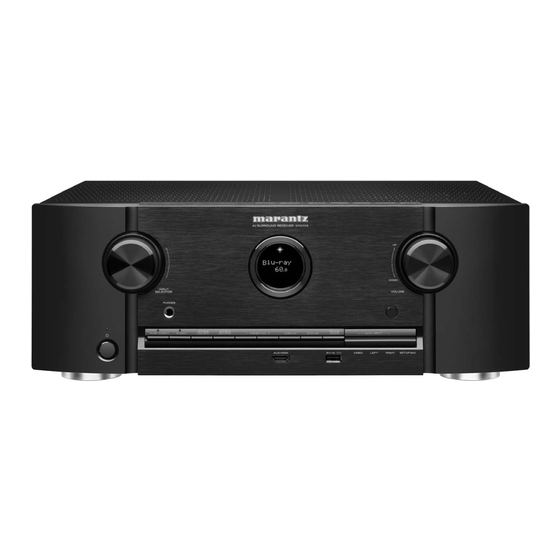

Marantz SR6008 Easy Setup

SR6008
7ch Integrated Network Receiver
7.2 Channel 4K & 3D Pass Through, Networking Home Theater Receiver
with DTS Neo:X, Audyssey DSX, and AirPlay
The Marantz SR6008 7.2-channel Home Theater Receiver is an equal parts network powerhouse and sonic tour-de-force designed to be the heart of the
modern home theater system. With Marantz's classic "star and circle" front display, the receiver offers both style and comprehensive features, including
an Ethernet port, seven HDMI inputs, and playback of the latest high-definition audio formats. The SR6008 is equipped with DTS Neo:X and Audyssey
DSX to create a 3D sound space when you set up speakers for the front height or front wide channels. With the addition of Marantz's acclaimed Current
Feedback and HDAM pre-amplifier circuitry, you can enjoy a clean, rich ambient sound. A second HDMI port on this receiver allows other people to
enjoy audio/video or music entertainment in a separate room while you use the system in the main room. Two audio/video zones, networking, and
support for Bluetooth devices make the SR6008 a flexible solution for home theater and music listening that's expandable, too.
Marantz Audio Advantages
110 watts, 7 channel power
n
(8 Ω/ohms, 20 Hz - 20 kHz, THD 0.08 %)
Current Feedback & HDAM pre-amp with
n
discrete power amp design for superior sound
High current linear power supply
n
EI core high current power transformer
n
DSD playback capability
n
M-DAX (Marantz Dynamic Audio eXpander)
n
High resolution 192kHz/24-bit audio DACs
n
Audio/Video Quality
Audyssey MultEQ XT, Dynamic Volume and
n
Dynamic EQ
3 D v i d e o e nte r t ainm e nt w i t h d y n a mi c
n
surround sound
Audyssey DSX and DTS Neo:X for front height
n
or front wide effects channels for a more
immersive surround experience
State-of-the-art 1080p & 4K Ultra HD
n
(3840x2160) video upscaling functions
Network functions supporting playback of
n
music files in high-resolution formats
(WAV 192 kHz/24 bit, FLAC 192 kHz/24 bit,
ALAC 96 kHz/24 bit)
Gapless audio playback
n
®
Connectivity
Advanced network capabilities
n
- AirPlay: stream music from your iPad
®
or iPod touch or from your iTunes
- Networking ready: stream internet radio,
Pandora, SiriusXM, Spotify, as well as music
and photos over the home network
- Internet Radio
- DLNA 1.5 certified; Windows 8 compatible
- Photo streaming
- flickr
Suppor ts HDMI (3D, ARC, Deep Color,
n
"x.v.Color", Auto Lip Sync, 4K Ultra HD, and
HDMI control function)
Bluetooth wireless connectivity (M-XPort) via
n
optional RX-101 adaptor
Front panel USB input for direct digital
n
playback for iPod, iPhone and USB drives
Supports 2nd zone output from digital
n
sources,for enjoying different audio content
at thesame time in the main room and a
separate room
HDMI 7 in (front: 1) /2 out (1 for zone2)
n
Phono input
n
Component video 2 in/ 1 out
n
Composite 4 in (front: 1) / 1 out
n
2/2 optical/coaxial digital in
n
Headphone out
n
FM/AM tuner
n
6 audio inputs (1 front)
n
7.2 ch preouts
n
2 ch preouts (Zone2)
n
® ®
, iPhone 7.1 ch inputs
n
®
music library
Ease of Use
InstaPrevue provides live picture-in-picture of
n
connected HDMI sources
Mobile App control (Marantz Remote App) with
n
advanced media browsing (iOS & Android)
Easy Setup Assistant with Graphical User
n
Interface (GUI)
Transparent binding-type speaker terminals
n
for quick, easy connection of speaker cables
New, visually clear layout on rear panel that
n
simplifies the connection of various cables
HDMI pass-through in standby mode
n

Additional Features

Power amp Assign for 7.1ch (SB ch.),
n
5.1ch + Front Height, 5.1 ch + Front Wide,
5.1ch + Bi-Amp, 5.1ch + zone, or 5.1ch + Front B
2 source powered Zone2 capability
n
Gold-plated audio/video terminals
n
Audyssey Installer Pro Ready
n
IR Flasher In
n
RS-232C control (AMX/Crestron command)
n
C4 certified (IP)
n
Assignable DC trigger x 1 (+12V, 150mA)
n
Remote control in/out
n
