Dell Active Fabric Manager Installation Manual page 9

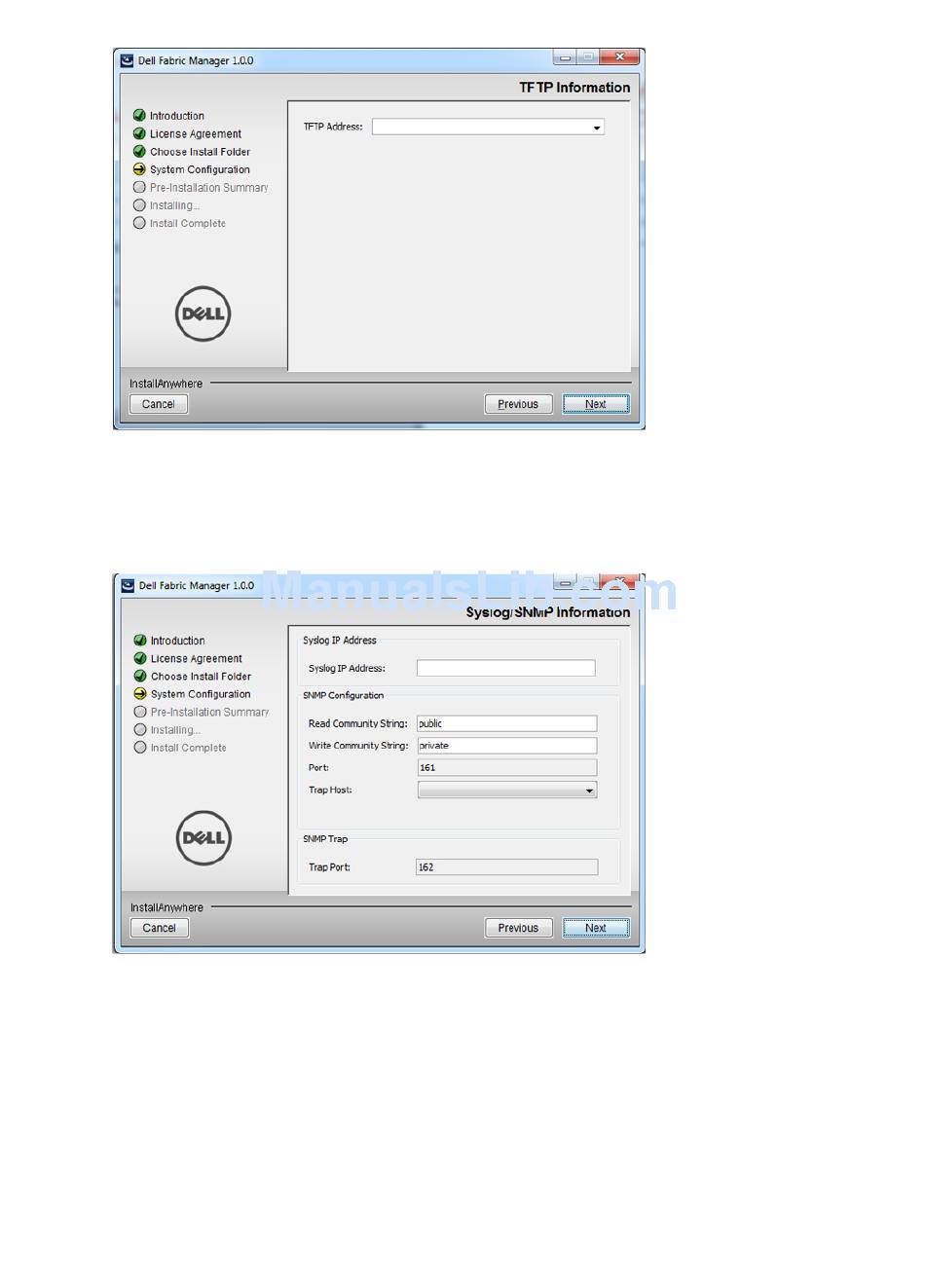

7. In the TFTP Address field, specify the trivial file transfer protocol (TFTP) server address to load the FTOS software
images and configuration files during bare metal provisioning (BMP). You can also select an address from the TFTP
address pull-down menu.
8. Click the Next button.
The Syslog/SNMP Information screen displays.
9. In the Syslog IP Address field, specify the syslog server IPv4 address to collect the syslog messages from the
switches in the distributed core.
10. Click the Next button.
11. In the SMNP Configuration area, enter the SNMP read and write community strings; for example, public and
private, so that the DFM can perform SNMP queries on the switches in the distributed core. The trap host uses the
default value from your current host IP address.
12. Click the Next button.
The Switch Telnet Credentials screen displays.
9
