Thermal Module Removal

Prerequisite:
Disconnect the thermal module cable from the mainboard connector.
1.
Remove nine (9) screws securing the thermal module to the mainboard.
2.
Service and Maintenance
Mainboard Removal

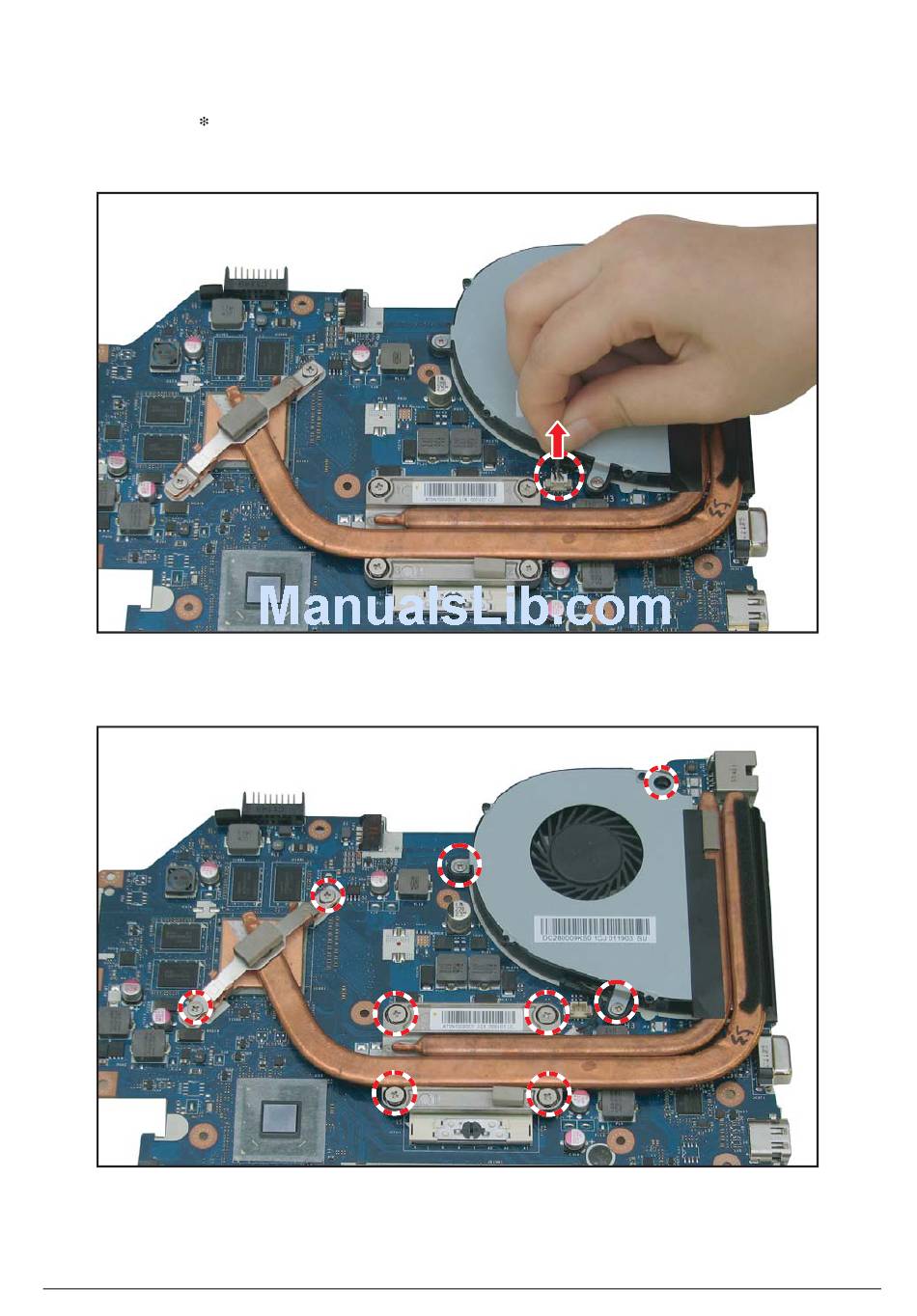

Figure 5:77. Disconnecting the Thermal Module Cable
Figure 5:78. Removing the Thermal Module Screws
on page 5-46
5-53
