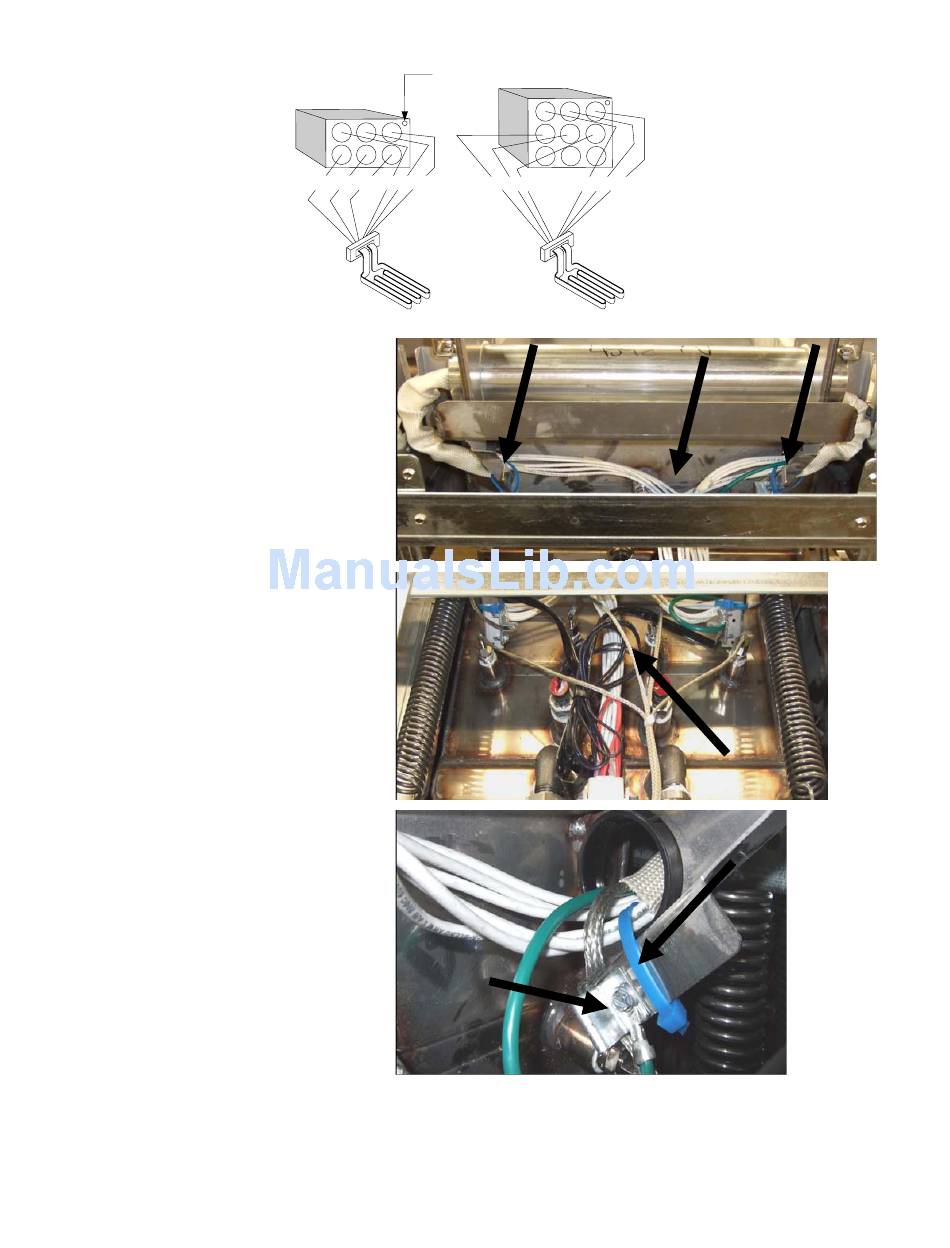

Full vat element wire routing
Pull the element wires through the
bushings on either side of the frypot
and down the back. Element wires
should be routed to the right of the
ATO temperature probe on the back
wall of the frypot.
Dual vat element wire routing
Pull the element wires through the
bushings on either side of the frypot
and down the back. Element wires
should be routed to the center of the
frypot between the ATO temperature
probes.
Element grounding and wire
routing
To ground the element wires, use the
hole in the frypot frame located under
the bushing that the element wires pass
through. Using a screw through the
ground wires ring terminal, connect it
to the frypot using the probe ground
clip. Use a tie wrap to tie up half of the
element wires after the wires are pulled
through the bushing. Do not pull tie
wrap tight, leave it slack at about one
inch
Index Marker marks
Position 1
3 2 1
6 5 4
6
6L 5L 4L 3L 2L 1L
R
1-6
3 2 1
6 5 4
9 8 7
5 2
4R 3R 1R
R R
