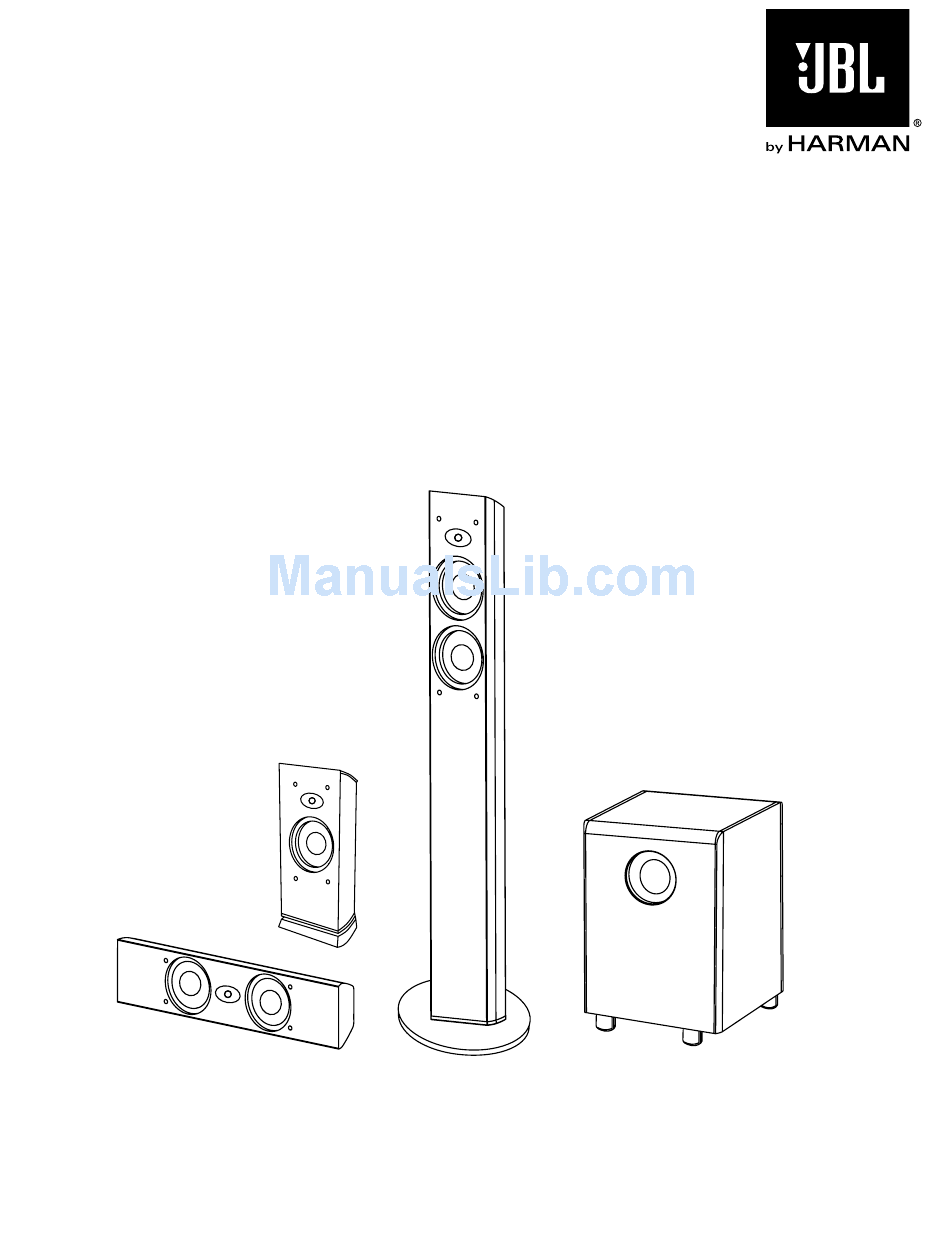

- Page 1 CINEMA SOUND ® CST56, CSB6, CSC56, CSS11 OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMpORtANt SAfEty INStRUCtIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. -
Page 3: Table Of Contents
Thank You For Choosing This JBL Product ................. 4 ® Included Items ........................4 Speaker Placement ......................5 Wall-Mounting the CSC56 and CSB6 ................... 6 Speaker Connections ......................7 Subwoofer Operation ......................9 Troubleshooting ......................... 10 Specifications ........................11 www.jbl.com... -
Page 4: Thank You For Choosing This Jbl ® Product
We’re confident that the JBL system you have chosen will provide every note of enjoyment that you expect – and that when you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL equipment. -
Page 5: Speaker Placement
The front speakers should be placed the same distance from each other as they are from the listening position. The CSB6 speakers should be placed at about the same height from the floor as the listeners’ ears will be, or they may be angled toward the listeners. -
Page 6: Wall-Mounting The Csc56 And Csb6
WALL-MOUNtINg thE CSC56 AND CSB6 The CSC56 center channel and the CSB6 are designed to be mounted on the wall. There are two (2) fixed-mount wall brackets provided for the CSC56, and one for the CSB6. Each speaker bracket will require up to three 1-1/2" #10 wood screws;... -
Page 7: Speaker Connections
Separate and strip the ends of the speaker wire as shown. Speakers and other electronic components have corresponding (+) and (–) terminals. Most manufacturers of speakers and electronics, including JBL electronics, use red to denote the (+) terminal and black to denote the (–) terminal. - Page 8 SpEAkER CONNECtIONS DOLBy DIgItAL OR DtS (OR OthER DIgItAL SURROUND MODE) CONNECtION ® ® Use this installation method for Dolby Digital, DTS or other digital surround processors: RECEIVER SUBWOOFER LINE LFE OUT LEVEL Use the line-level input jack marked “LFE” for the Low-Frequency Effects channel. Connect this jack to the LFE output or subwoofer output on your receiver or amplifier.
-
Page 9: Subwoofer Operation
If at some time in the future you happen to rearrange your listening room and move your speakers, you should experiment with the phase switch in both positions and leave it in the position that maximizes bass performance. www.jbl.com... -
Page 10: Troubleshooting
If the problem has followed the speaker, consult your dealer for further assistance or, if that is not possible, visit www.jbl.com. If there is no sound from the center •... -
Page 11: Specifications
SpECIfICAtIONS SYSTEM Frequency response: 27Hz – 30kHz (–6dB) CST56 CSB6 CSC56 Maximum recommended 150W* 125W* 150W* amplifier power: Power handling: 50W continuous/300W peak 40W continuous/300W peak 50W continuous/300W peak Frequency response: 55Hz – 30kHz (–6dB) 60Hz – 30kHz (–6dB) 55Hz – 30kHz (–6dB) - Page 12 8500 Balboa Blvd., Northridge, CA 91329 USA © 2010 Harman International Industries, Incorporated. All rights reserved. JBL is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. PolyPlas and HeatScape are trademarks of Harman International Industries, Incorporated.
