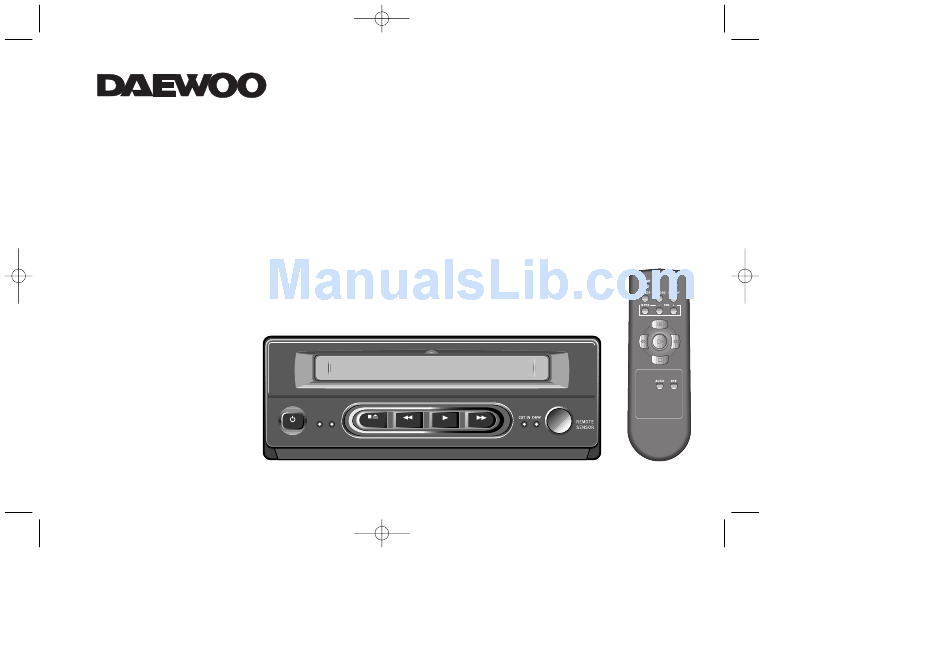

- Page 1 DV-SC242WY-RV_GB 01.4.16 11:46 AM ˘ ` 28 English VHS - IN CAR PAL/ STEREO/ HIFI/ VIDEO CASSETTE PLAYER Owner’s manual & Installation manual Hi-Fi A.REPEAT STOP/ PLAY EJECT...
- Page 2 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 1 PRECAUTIONS, SAFEGUARDS AND NOTES For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions, and instructions on the appliance, or the ones described in the operating instructions and adhere to them.
- Page 3 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 2 Power Sources–This set should be operated only Attachments–Do not use attachments not Ventilation–The slots and openings in the cabinet from the type of power source indicated on the recommended by the manufacturer, as they may cause are provided for necessary ventilation.
-
Page 4: Moisture Condensation
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 3 –Never place the set in a confined space such as a –Do not place the set over a radiator or heat register, bookcase, or built-in cabinet unless proper ventilation or where it is exposed to direct sunlight. is provided. -
Page 5: Video Head Cleaning
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 4 VIDEO HEAD CLEANING VIDEO HEAD CLOGGING The video heads are the means by which the VCP reads pictures from the tape during playback. In the unlikely event that they become dirty enough to be clogged, no picture will be playback. This can easily be determined if, during playback of a known good tape, there is good sound, but the picture is extremely snowy. -
Page 6: Important Notes
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 5 IMPORTANT NOTES •Note that 12V accessory power is supplied to the unit. •To avoid the risk of fire or electric shock, do not expose the unit to rain or moisture. •Do not attempt to open the cabinet. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel. •Keep the unit away from radiators or other sources of heat. - Page 7 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 6 FEATURES CONGRATULATIONS on your purchase of a new VHS VCP. This VCP is an exciting, new VCP designed to satisfy all your VHS tape play and recording needs. And, with proper use and care, your new VCP will offer many years of viewing enjoyment. Just a few of the features include.
-
Page 8: Front Panel

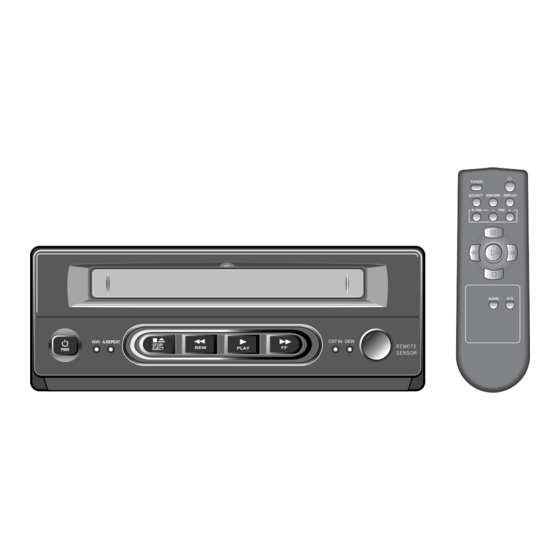

DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 7 IDENTIFICATION FRONT PANEL Hi-Fi A.REPEAT STOP/ PLAY EJECT & ! Cassette Compartment # Hi-Fi lamp @ Power key In the Hi-Fi output mode, the lamp will light up in green. When power is supplied to the set, the power indicator lamp $ Auto Repeat lamp (See page 6&22) will always light up in red. - Page 9 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 8 IDENTIFICATION (continued) ^ Rewind/Review key ( Cassette-In lamp If this key is pressed in the PLAYBACK mode, the VCP enters the When the cassette is inserted, the CST-IN lamp will light up reverse picture search mode. If pressed in STOP mode, then the in green.
-
Page 10: Remote Controller
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 9 IDENTIFICATION (continued) REMOTE CONTROLLER POWER ON/OFF This key is not available in this model. EJECT To watch the desired picture once more during playback, press “ENCORE” key. The VCP unit rewinds the tape for 10 seconds and will play the picture want to watch again. To watch the picture from start position of tape, press “REPLAY”... -
Page 11: Rear Panel
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 10 IDENTIFICATION (continued) REAR PANEL ! VIDEO/AUDIO OUT @ VIDEO/AUDIO IN Connect this terminal to VIDEO/AUDIO IN terminal of your Connect this terminal to VIDEO/AUDIO OUT terminal of your television, using the RCA cord provided. Game machine, Camcorder, Portable DVD Player, using the RCA cord provided. - Page 12 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 11 IDENTIFICATION (continued) # DC JACK IN (12V DC), OPTION1 Connect this jack to DC source (DC 12 volts, PLUS and GND). For car using, please use connection via connector 4 (OPTION 2) for proper working.
-
Page 13: Installation Of Mounting Brackets
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 12 INSTALLATION INSTALLATION OF MOUNTING BRACKETS... - Page 14 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 13 VCP TO TV CONNECTION YELLOW WIRE(ACC 12V) RED WIRE(Car Battery 12V) 3 WIRE SYSTEM 2 WIRE SYSTEM BLACK WIRE(GND)
- Page 15 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 14 HOW TO USE THIS METHOD • You can apply this method to DC 12V output only.If you apply more than 18 volts then the power will automatically turn off. • Please connect after making sure of the polarity of DC POWER CABLE. •...
-
Page 16: Basic Operation
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 15 BASIC OPERATION CASSETTE LOADING/UNLOADING LOADING UNLOADING ŒPush the cassette into the cassette compartment gently. Œ Press the STOP/EJECT key twice on the VCP (in the (Arrow mark at the top) PLAYBACK mode). This first press will stop the tape. The second press will eject the tape. -
Page 17: Basic Playback
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 16 BASIC OPERATION (continued) BASIC PLAYBACK Œ Hi-Fi A.REPEAT STOP/ EJECT PLAY ˇ Ø ˆ ´ ¨... - Page 18 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 17 BASIC OPERATION (continued) ´ ˇ Œ PLAYBACK STOP LOADING STOP/ PLAY EJECT Hi-Fi A.REPEAT STOP/ EJECT PLAY The power is on automatically when Press the PLAY key, then pictures will Press the STOP/EJECT key once. The the cassette is inserted even if the tape will stop .
- Page 19 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 18 BASIC OPERATION (continued) OSD (On Screen Display) function-1 ˇ Œ ´ STOP PLAYBACK STILL STILL STOP PLAY PLAY HIFI CST OUT SP AUTO:PAL Press PLAY key, “PLAY” letter will Press STILL key on the remote control, Press STOP key, “STOP”...
- Page 20 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 19 BASIC OPERATION (continued) OSD (On Screen Display) function-2 ¨ ˆ FAST FORWARD & CUE MODE REWINDING & REVIEW MODE CUE1 REV1 CUE2 REV2 Press FF key in the STOP mode. The tape Press REW key in the STOP mode. The tape advances at high speed without any picture and will rewind at high speed without any picture sound.
-
Page 21: Special Operation
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 20 SPECIAL OPERATION The VCP enters the playback mode during special operations as soon as the PLAY key is pressed. During special operations, noise bars and loss of color may affect the picture. This is not a fault with this unit. Œ... - Page 22 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 21 SPECIAL OPERATION (continued) ˆ AUTO TRACKING ADJUSTMENT • Since this VCP has the Auto Tracking Adjustment function, it can play clear pictures without special operations. • Auto Tracking Adjustment operates automatically when the cassette is inserted. •...
- Page 23 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 22 SPECIAL OPERATION (continued) Ø AUTO REPEAT • Press the PLAY key for 2 seconds in the playback mode. Then the VCP operates repeatedly, the lamp will light up in red : THE END OF THE TAPE REWINDING PLAYBACK “.
- Page 24 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 23 SPECIAL OPERATION (continued) ∏ POWER OFF -TAPE GUIDE • This function is to protect the tape when the power of vehicle is turned off. • If you turn off power of vehicle, the cassette tape is unloaded from DRUM surface to protect tape damage while you do not use VCP set for a long time.
-
Page 25: Troubleshooting
DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 24 TROUBLESHOOTING Before calling service personnel, check the following points for a possible cause of the trouble. A minor adjustment on your part may eliminate the trouble. SYMPTOMS CAUSE POSSIBLE SOLUTIONS here is no power to the VCP. The power cord is not connected. - Page 26 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 25 TROUBLESHOOTING (continued) SYMPTOMS CAUSE POSSIBLE SOLUTIONS No backlighting at power button. No 12V DC. Check circuit fuse at source of power (see vehicle/converter manual). In-line fuse of power cord (in lighter plug). VCP (2 amp * 20X 5mm) fuse located on rear of unit.
- Page 27 DV-SC242WY-RV_GB 01.2.22 2:53 PM ˘ ` 26 TROUBLESHOOTING (continued) SYMPTOMS CAUSE POSSIBLE SOLUTIONS Play mode indicated no audio or video VCP connected to A/V output jacks. Change connections from A/V output to TV. (continued from the previous to A/V input. page) Poor connection between VCP output Check connection.
-
Page 28: Specification
DV-SC242WY-RV_GB 01.4.16 11:51 AM ˘ ` 27 SPECIFICATION MODEL POWER SUPPLY DC 12V POWER CONSUMPTION DIMENSION 295 (W D) mm WEIGHT APPROX. 3 Kg VIDEO SIGNAL SYSTEM PAL/ MESECAM/ SECAM (Option)/ NTSC 3.58/ NTSC 4.43/NAP TAPE TYPE VHS Type TAPE SPEED PAL SP : 23.39 mm/sec , LP : 11.70 mm/sec NTSC SP : 33.35 mm/sec , LP : 22.23 mm/sec, SLP : 11.12 mm/sec FF/REW TIME (T-120)
