Summary of Contents for Daewoo DV-K885

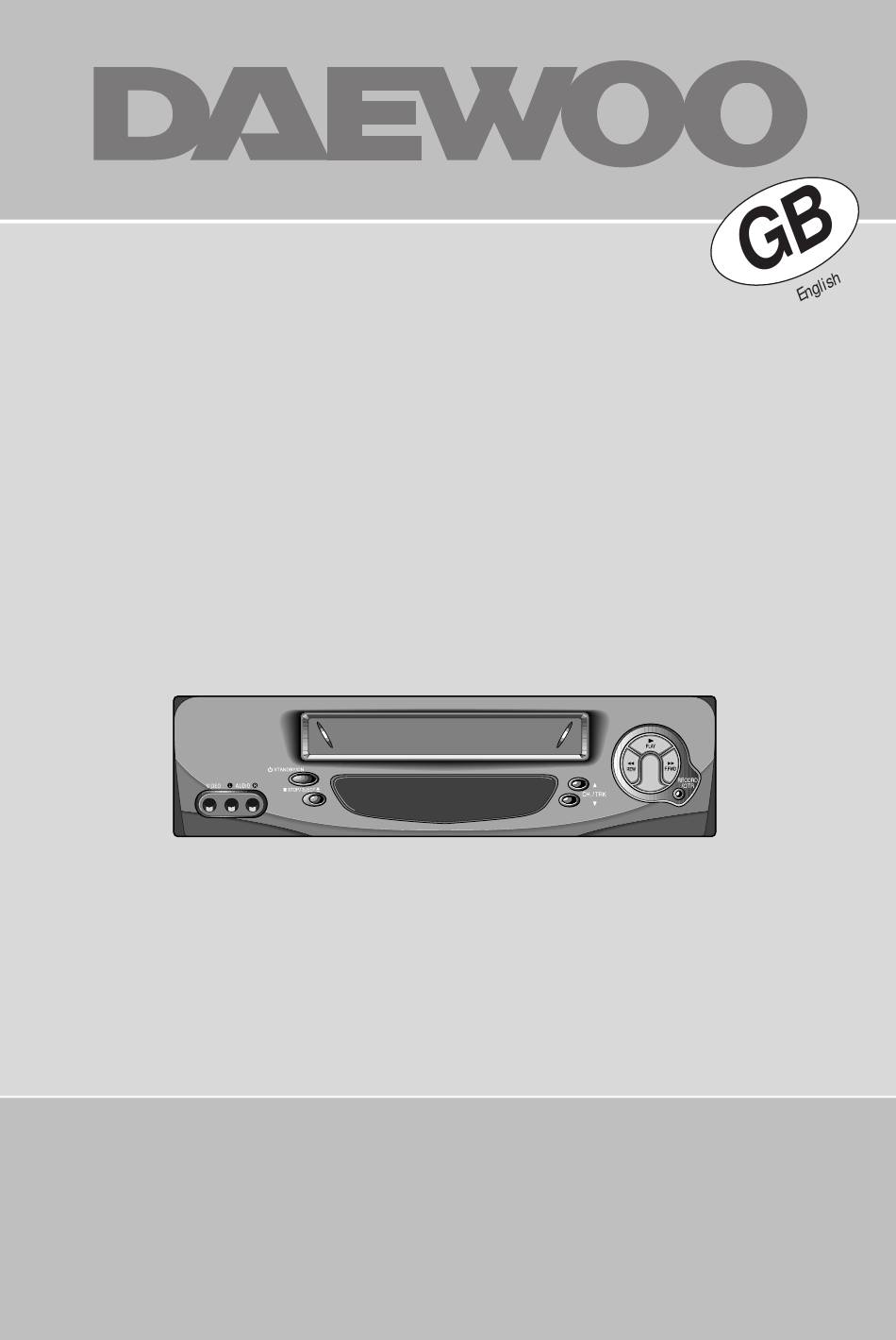

- Page 1 Instruction manual Hi-Fi Video cassette recorder DV-K885...
- Page 2 W O R T H Please keep the video machine's guarantee card and receipt safe for warranty purposes. k n o w i n g Precautions Read carefully through this manual to familiarize yourself with this high-quality video cassette recorder. Make sure the rating of your household electricity supply matches that shown on the back of the video cassette recorder.
-
Page 3: Table Of Contents
W O R T H k n o w i n g Before doing anything with the machine, please read the chapter "Initial installation". Contents Controls The remote control unit ..................2 The machine, On screen display ..............3 Initial installation Connecting up the video cassette recorder, Fitting the remote control’s batteries ...................... -
Page 4: Controls
The remote control is the principle means of control, but the main playback and record functions are also available on the front of the machine. C O N T R O L S Press any button to turn on the power. The remote control unit power on/off number buttons to select programmes (stations) or to type... -
Page 5: The Machine, On Screen Display
C O N T R O L S Press any button to turn on the power. The machine standby/on playback stop and ejecting the cassette front input sockets for connecting a camcorder (left/right channels) programme (station) selection recording or OTR (One Touch Recording means: each time you press the button recording is extended by 30 minutes) rewinding / fast forwarding a cassette from Stop, or picture search... -
Page 6: Connecting Up The Video Cassette Recorder, Fitting The Remote Control's Batteries
Place your video horizontally on a flat, steady base so that air can circulate around it for ventilation. away from humidity and heat, magnetic fields, such as those from loudspeakers INSTALLATION etc., and with no heavy objects placed on top. Connecting up the video cassette recorder Switch off all components when connecting or disconnecting cables. -
Page 7: Initial Installation
I n i t i a l Switch the TV on. You can also start "Auto Search" in the menu "PR Preset" "Auto Search". INSTALLATION To tune in new stations (manual tuning) and to enter station names see page 16-18. Setting up the video cassette recorder LANGUAGE SET –... -
Page 8: Playing Cassettes
Your TV and your video cassette recorder are switched on. P L A Y I N G To see the picture from your video, press the station button on the TV reserved for video input or the AV (Audio/Video) button. c a s s e t t e s Playing back Load the cassette by pushing... -
Page 9: Accessing New Recordings (Index Scan), Cm Skip
P L A Y I N G c a s s e t t e s Still Still picture from playback. Each press of the button advances the picture one frame. “PLAY” blinks during still. PLAY switches back to normal playback. Variable picture search Starting from playback you can control search speed in 2 steps either forwards (... -
Page 10: Recording Cassettes
The TV stations on the video have been tuned in (page 5). The video is switched on. R E C O R D I N G You can either watch the picture from the video on the TV by pressing the station button reserved for video input or the AV button, watch another TV station or c a s s e t t e s switch off the TV altogether. -
Page 11: One Touch Recording (Otr)
R E C O R D I N G For timer recordings, clock, date, and stations must be set correctly. c a s s e t t e s Load a cassette with its safety tab in place (see page 13) and with sufficient free space for the recording. -
Page 12: Normal Timer Recording
For timer recordings, clock, date, and stations must be set correctly. Load a cassette with its safety tab in place (see page 13) and with sufficient free space for the recording. f u n c t i o n s Normal timer recording How often do you want Call the video’s "MAIN MENU",... -
Page 13: Timer Review - Changing And Erasing, Setting Time And Date
f u n c t i o n s Timer Review – changing and erasing TIMER PROGRAM MENU START END DATE 21:20 22:20 16/11 18:30 20:20 18/11 Call the video’s "MAIN MENU", -- : -- -- : -- -- / -- -- : -- -- : -- -- / --... -
Page 14: Clock/Counter Display, Remaining Time And Cassette Length, Accessing Counter Zero Position, Resetting The Counter To Zero
The counter counts in real time from the point you load the cassette. This does not have to be its beginning! The counter does not count unrecorded parts of the tape. If you rewind beyond the zero position, the counter counts in negative values f u n c t i o n s (e.g. -
Page 15: Menu Languages, Child Lock, Cassettes, And
f u n c t i o n s Menu languages MENU – Call the video’s "MAIN MENU", choose LANGUAGE SET English Deutsch "VCR Setup", then "Language Set". Italiano Español Français Nederlands Select your language. PYCCK – SVENSKA PR+/-:select Confirm. OK:confirm MENU:end Child lock... -
Page 16: The Hi-Fi System, What You Can Listen To
The video machine records the complete sound signal transmitted by the TV station. On the mono VCR, you will hear the normal mono sound. f u n c t i o n s The Hi-Fi system In addition to the normal mono sound track of VHS video cassette recorders, your video machine is equipped with a high-quality Hi-Fi sound system. -
Page 17: Choice Of Sound Output
f u n c t i o n s Choice of sound output During a stereo performance (playback- PLAY Hi-Fi ”Hi-Fi” / broadcast - “STEREO”) : HI-Fi Hi-Fi stereo left audio channel only A.SEL LEFT Hi-Fi right channel only the normal mono RIGHT 1-4X sound track of a Hi-Fi cassette... -
Page 18: Tuning New Stations
The TV and video cassette recorder are switched on. To see the picture from your video, press the station button on the TV reserved for T u n i n g video input or the AV (Audio / Video) button. NEW STATIONS "AV"... -
Page 19: Station Names
T u n i n g NEW STATIONS Station names If your video is showing no station name or is showing a station name incorrectly, you can correct this. Select “ : name correct” on the “MANUAL SET” menu. MENU –... -
Page 20: Sorting Programme Locations, Clearing Programme Locations
T u n i n g NEW STATIONS Sorting programme locations MENU If the location numbers used for programmes stored in your TV and video are different, you can change them on the video. – To do this, move the stations to the right numbers, until they are arranged the way you want. -
Page 21: To The Tv Via Antenna Cable (If You Are Not Using A Rca Cable)
CONNECTIONS If you are using a RCA cable, select the AV input on the TV to see the picture from the video. a n d c o p y i n g If you are not using a RCA cable, select the button number on the TV reserved for video input to see the picture from the video. -
Page 22: Copying, Assembling
CONNECTIONS Switch off all components when connecting or disconnecting cables. a n d c o p y i n g Copying To copy to your video from another video machine, connect the two machines with a cable between their RCA sockets and select as programme "AV"... -
Page 23: Brief Instruction For Experienced Users
B R I E F I N S T R U C T I O N f o r e x p e r i e n c e d u s e r s Playing back Simple recording Your TV and your video cassette recorder are The TV stations on the video have been tuned in switched on. - Page 24 B R I E F I N S T R U C T I O N f o r e x p e r i e n c e d u s e r s Normal timer For timer recordings, clock, date, and stations must be set correctly . Load a cassette with safety tab in place (page 13) and with sufficient free space for the recording.
-
Page 25: Appendix
A P P E N D I X Before you ask a specialist Mains supply the video's display does not light - The mains lead is not connected to the wall socket. the video doesn’t work - condensation may have formed when moving the video cassette recorder from a cold to a warm room. -
Page 26: Index, Technical Data
A P P E N D I X Index Aerial ............4 RCA ............19 Assembling recordings ......20 Remaining time .......... 12 RF out ............5/19 Bilingual ..........6/14/15 SP (Standard Play) ........8-10 Cassette length .......... 12 Stand-by ........Precautions Channel .......... - Page 27 VQ857D Quick Start Guide TV/VCR 1.5 V Q. S ANT. IN AUDIO AUDIO VIDEO ANT. OUT Unplug the aerial cable from your TV and plug it into the "ANT.IN" socket of the video. Plug the short coaxial cable provided into the "ANT.OUT" socket of the EJECT video and the aerial socket of the TV.
