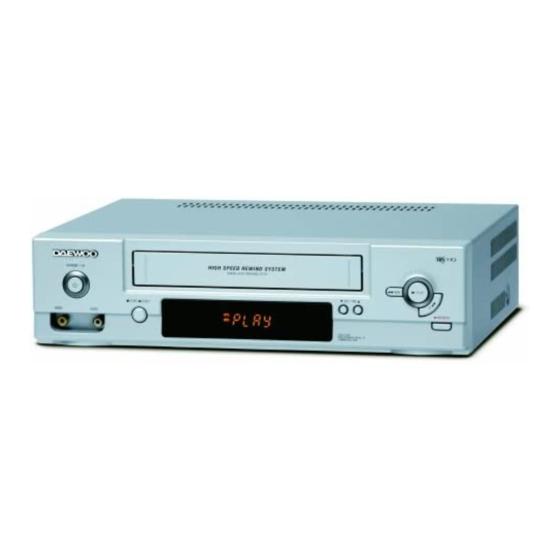

INSTRUCTION MANUAL

Video recorder

For model number, see the front display of your video
The following standard functions are available on this set.
NTSC playback
See page 13
MESECAM tape playback
See page 13
Index scan
See page 14
Wide-screen format
See page 15
Commercial skip
See page 15
High-speed rewind
See back cover for quick-start guide
Helpline number: 0870 100 2525
With queries, please quote the page number, reference number and model number.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV-877P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo SV-877P

Summary of Contents for Daewoo SV-877P

  • Page 1: Video Recorder

    INSTRUCTION MANUAL Video recorder For model number, see the front display of your video The following standard functions are available on this set. NTSC playback See page 13 MESECAM tape playback See page 13 Index scan See page 14 Wide-screen format See page 15 Commercial skip See page 15...
  • Page 2 Please keep the video's guarantee sheet (pages 27 and 28) and receipt for your W O R T H video in a safe place. k n o w i n g Precautions Read this booklet carefully. Make sure the rating of your household electricity supply matches that shown on the back of the video recorder.

  • Page 3: Table Of Contents

    Before you do anything with the video, please read the chapter "Setting up the video". Contents Setting up the video Connecting your video through RF lead, Connecting your video through a scart lead ..........2 Connecting your video to the satellite system, Connecting your video to the hi-fi system (Option 1), Connecting your video to the hi-fi system (Option 2) ....................
  • Page 4 Put the batteries into the remote control. Make sure the (+) and (-) signs on the batteries agree with the (+) and (-) signs in the battery compartment. Setting up your video (Option 1) - Connecting your video through RF lead Before you start, unplug all the equipment from the mains supply.

  • Page 5: Connecting Your Video To The Hi-Fi System (Option 2)

    Connecting your video through extra equipment Connecting your video to the satellite system Before you start, unplug all the equipment from the mains supply. Television Aerial 200-240V~, You can use this connection 50/60 Hz if your video has two scart sockets.

  • Page 6: How To Connect Your Video To Another Video, How To Connect Your Video To A Camcorder

    How to connect your video to another video Before you start, unplug all the equipment from the mains supply. First video 200-240V~, 50/60 Hz Second video 200-240V~, 50/60 Hz 1) Insert the tape you wish to record on into the first video and press AV until ‘AV1’ appears on the front display. 2) Insert the tape you wish to copy from into the second video.

  • Page 7: Tuning To The Tv

    Tuning to the TV Once you have carried out the steps in ‘Setting up your video’ (diagram 1 on page 2), switch on your TV. Press on the remote control and RF52 will be displayed on the front of your video. If you have connected your video through the scart connection (diagram 2 on page 2), go to step 2.

  • Page 8: What To Do If You Get Picture Interference When Using Rf Lead

    What to do if you get picture interference when using RF lead The RF output can be adjusted from 21 to 69, this video is defaulted to RF52. If other broadcasts are close to RF 52 they may cause picture interference, you can change the RF output until your television has a noise-free channel for your video.

  • Page 9: Setting Time And Date, Auto Clock

    Setting time and date If the ‘CLOCK SET’ display is not already on the screen CLOCK SET press MENU. TIME - -:- - Choose ‘VCR SET UP’ by pressing PR- twice, then OK. DATE - -/- -/- - - - Choose ‘CLOCK SET’...

  • Page 10: 2Nd Scart Socket

    2nd scart socket If your video has the AV2 output, shown in the diagram below, you can connect other equipment as seen on pages 3 and 4. 2nd scart INPUT ONLY INPUT+OUTPUT When connecting other equipment please refer to their manuals for further information.

  • Page 11: Manual Tuning

    Manual tuning Manual tuning allows you to tune in new stations or equipment such as a satellite receiver and so on. Press MENU. PR PRESET AUTO SET Choose ‘PR Preset’ by pressing MANUAL SET PR- then OK. PR ERASE PR ALIGN Choose ‘Manual Set’...

  • Page 12: Station Names

    Station names If your video is showing no station name or is showing a station name incorrectly, you can change this by following the instructions below. Press MENU. MANUAL SET PR01 BBC1 PR08 SKYS Choose ‘PR Preset’ by pressing PR- then OK. PR02 BBC2 PR09 MTVE PR03 ITV...

  • Page 13: Sorting Programme Locations, Clearing Programme Locations

    Sorting programme locations Sorting programme locations allows you to put the video programme in the same order as your TV. Press MENU. Choose ‘PR Preset’ by pressing PR- then OK. Choose ‘PR Align’ by pressing PR+ then OK. Press PR+ or PR- to select the programme you want to swap.

  • Page 14: Front Panel Controls

    Front panel controls The following buttons are on the front of your video. stand-by/ power on Stop and eject front input sockets for connecting a stereo camcorder (left and right channels) This is only available on some models. Check the front of your video to see if this connection is available.

  • Page 15: Playing Cassettes

    PLAYING cassettes Play Push the cassette smoothly and squarely into the cassette bay, with its windows pointing up. Start playback. A.Sel is only available on some models. If this screen does not appear when you press the button, A.Sel is not available on your video. If you hear an unclear or PLAY Hi-Fi...

  • Page 16: Finding New Recordings (Index Scan)

    Still There must be a cassette in the video. Still picture from playback. Each press of the button moves the picture on one frame. Press the play button to switch back to normal playback. After approximately five minutes on still, the cassette will automatically switch to normal playback. If the still picture is jumping, you can steady it by using the PR+ and PR- button.

  • Page 17: 16:9 Wide Screen Format, Cm Skip (Commercial Skip)

    16:9 Wide-screen format 16:9 Wide-screen format is only available through wide-screen broadcasts. Your TV must have 16:9 function. You must connect your TV to the video using an A/V scart lead and the video must be in VCR mode. (See page 2, diagram 2.) Choose ‘16:9 set’...

  • Page 18: Auto Repeat, Child Lock, Osd (On Screen Display) On/Off

    Auto Repeat If you press the PLAY button for 5secs during playback mode, REP should appear on your display, the video goes into Auto repeat mode. This video repeatedly plays the tape from beginning to end . To release this mode, press any mode operation button such as PLAY, FF, REW or STOP.

  • Page 19: Recording Cassettes

    Recording cassettes If you want to use the video’s timer to record a programme, the clock, date and stations must be set correctly. Load a cassette with its safety tab in place (see page 23) and with enough free tape for the recording. Simple recording Load a cassette with its safety tab in place...

  • Page 20: Timer Recording Using Videoplus

    Timer recording using VideoPlus+ VideoPlus+ is an automatic system which makes it easier to set the timer. Press PROG. to select the VideoPlus+ screen. (If VideoPlus+ mode does not appear on the screen, it is not available on your video. Go to page 19). VIDEOPLUS 83077---- VideoPlus+ numbers are shown in TV guides.

  • Page 21: Normal Timer Recording

    For timer recordings, clock, date, and stations must be set correctly. Load a cassette with its safety tab in place (see page 23) and with enough free tape for the recording. Normal timer recording Press MENU. Choose "Timer Program" by pressing OK.
  • Page 22 If all the settings are correct, press OK to confirm. The on screen display will remind you to enter a cassette and turn the video off. Switch your video off by pressing the button. You can switch your video on again if you want to set the timer to record another programme. Remember to switch the video off when you have finished.

  • Page 23: Timer Review - Changing And Erasing Record Settings

    Timer review - changing and erasing record settings TIMER PROGRAM PR START END DATE Press MENU. 01 18:10 20:30 15/08 03 21:20 22:20 21/08 Choose "Timer Program" then press OK. PR+/-:SELECT OK:CONFIRM MENU:END TIMER PROGRAM Select the program you want to change or erase by PR START END DATE 01 18:10 20:30 15/08 pressing PR+ or PR-.

  • Page 24: Finding The Counter Zero Position

    The counter counts in real time from when you load the cassette. This does not have to be at the beginning of the cassette. The counter does not count unrecorded parts of the cassette. If you rewind the cassette, the counter will count backwards, if you rewind beyond the zero position, the counter counts in negative values for example, –...

  • Page 25: Resetting The Counter To Zero, Cassettes, Power-Saving Features

    Resetting the counter to zero This display will only appear when there is a cassette in the video. COUNTER RESET Press MENU and choose ‘Tape Control’ by pressing PR+ and then Choose ‘Counter Reset’ by pressing PR- twice and then OK. The video will reset the counter to zero.

  • Page 26: The Hi-Fi System

    The hi-fi system If this screen does not appear when you press the A.SEL button, this function is not available on your video. PLAY Hi-Fi HI-Fi LEFT Hi-Fi 1-4X RIGHT Hi-Fi As well as the normal mono sound track of VHS video recorders, your video has a high- quality hi-fi sound system.

  • Page 27: Electrical Connections, Moulded Plugs

    For your own safety read the following instructions carefully before you try to plug this video into the mains. Electrical connection Check that the voltage on the rating plate matches the voltage in your home. The rating plate is on the back panel of the video. If the mains plug fitted to this appliance is not suitable for your mains sockets, remove the plug and replace it following instructions below.

  • Page 28: Index. Technical Information

    Index Aerial ..............2 PDC (Programme Delivery Control) ..... 18 Protected cassette ..........23 Bilingual ............13, 24 Remaining time ........... 22 Cassette length ........... 22 RF out ..............5-6 Channel ............. 5-6, 9-11 Child lock ...............16 Satellite ..............3 CM Skip ............... 15 Scart socket ............

  • Page 31: Problem-Solving Guide

    Problem-solving guide The video has the time or - -.- - on the display If while you are setting up the video, the timer or - -.- - is in the display, the video is switched off or has already gone through the autoset procedure (OK has already been pressed). In this case, please turn to page 5 and carry out step 2 until you see the manual tuning screen.

  • Page 32: Quick-Start Guide

    Quick-start guide Please follow the guide from the beginning to the end. Before you connect the video equipment make sure all equipment is switched off at the plug. Stage 1. Connecting the video to your TV A Fit the batteries into the remote control. Make sure that the (+) and (-) marks on the batteries agree with the (+) and (- 200-240V~, ) marks inside the battery compartment.
