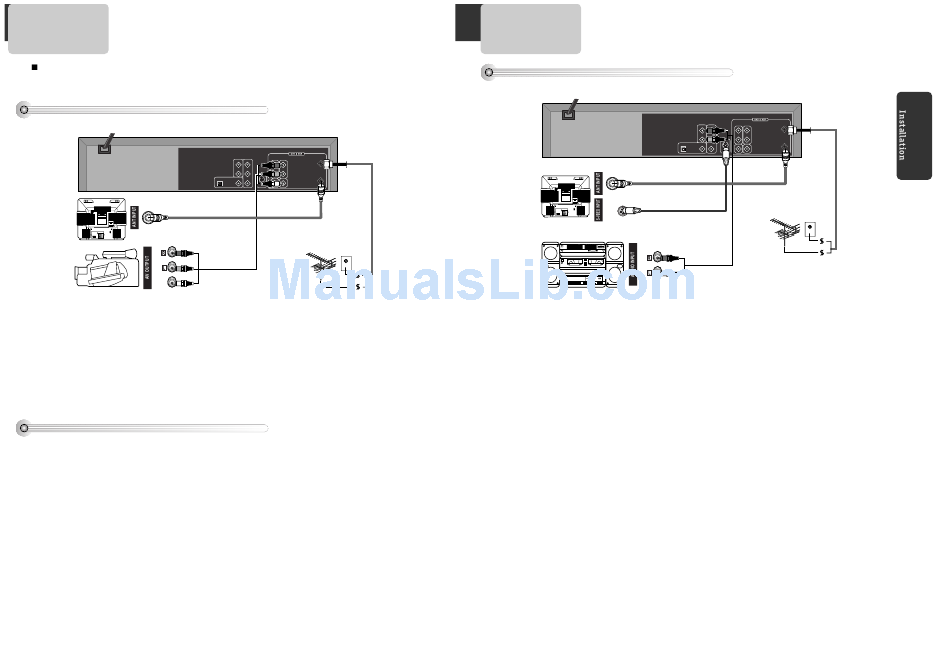

Connecting with Other Video Equipment
You can connect a wide variety of audio/video equipment to your DVD-Video, including : an additional VCR,
Laser Disc Player, DVD Player, Camcorder, Satellite Receiver, Video Game. Since all of these devices use
essentially the same connections, they will be described together.
How to Connect
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
NO USER SERVICEABLE PARTS INSIDE.
DO NOT REMOVE COVER (OR BACK).
REFER SERVICING TO QUALIFIED SERVICE PRESONNEL.
20
21
16
12
17
19
13
15
18
11
14
5
7
3
10
9
8
6
4
3
1
Playback VCR,
Camcorder,
AUDIO
Satellite
Receiver ...
AUDIO/VIDEO Cable
...
VIDEO
...
1
1
Connect Audio/Video Out jack in other video equipment to Audio/Video In jack in rear panel (or front
panel) of DVD-Video with connecting cable.
2
2
Connect "ANT. IN" jack in TV to "RF.OUT" jack in DVD-Video with RF cable.
3
3
To record contents of other video equipment with DVD-Video, insert recording tape attached recording tab
in DVD-Video.
How to Copy(Edit) Tape with Other Video Equipment
1
1
Turn on DVD-Video.
2
2
Press [OUTPUT] button of remote control and adjust DVD-Video to display "External Input 1" or "External
Input 2" in TV screen.
3
3
Press [PLAY] button in other video equipment.
4
4
Press [REC] button in DVD-Video if you want to record contents of other video equipment.
5
5
Press [Pause] button in DVD-Video when unnecessary or undesired scene is displayed in recording.
(Caution) Recording is released automatically after 5 minutes since pressing [PAUSE] button.
Press [REC] button if you want to record again.
12
AUDIO OUT
COMPONENT OUT
OUT
IN
ANT.IN
Y
R
R
AUDIO
Pr
S-VIDEO OUT
L
L
DIGITAL AUDIO OUT
RF OUT
OPTICAL
COAXIAL
Pb
VIDEO
RF Cable
Connecting with an Analog Audio
How to Connect
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
NO USER SERVICEABLE PARTS INSIDE.
DO NOT REMOVE COVER (OR BACK).
REFER SERVICING TO QUALIFIED SERVICE PRESONNEL.
S-VIDEO
19
21
20
17
12
14
16
18
15
13
11
3
7
5
4
9
6
8
10
1
3
AUDIO
1
1
Connect Audio jack. Connect AUDIO OUT in rear panel of DVD-Video to In jack of stereo sound unit.
2
2
For Input Select in stereo unit, Select "External Input" connected with DVD-Video.
3
3
Playback DVD disc or Hi-Fi videotape, you can hear sound in speaker of stereo unit.
AUDIO OUT
COMPONENT OUT
ANT.IN
OUT
IN
Y
R
R
AUDIO
Pr
S-VIDEO OUT
L
L
DIGITAL AUDIO OUT
RF OUT
OPTICAL
COAXIAL
Pb
VIDEO
13
