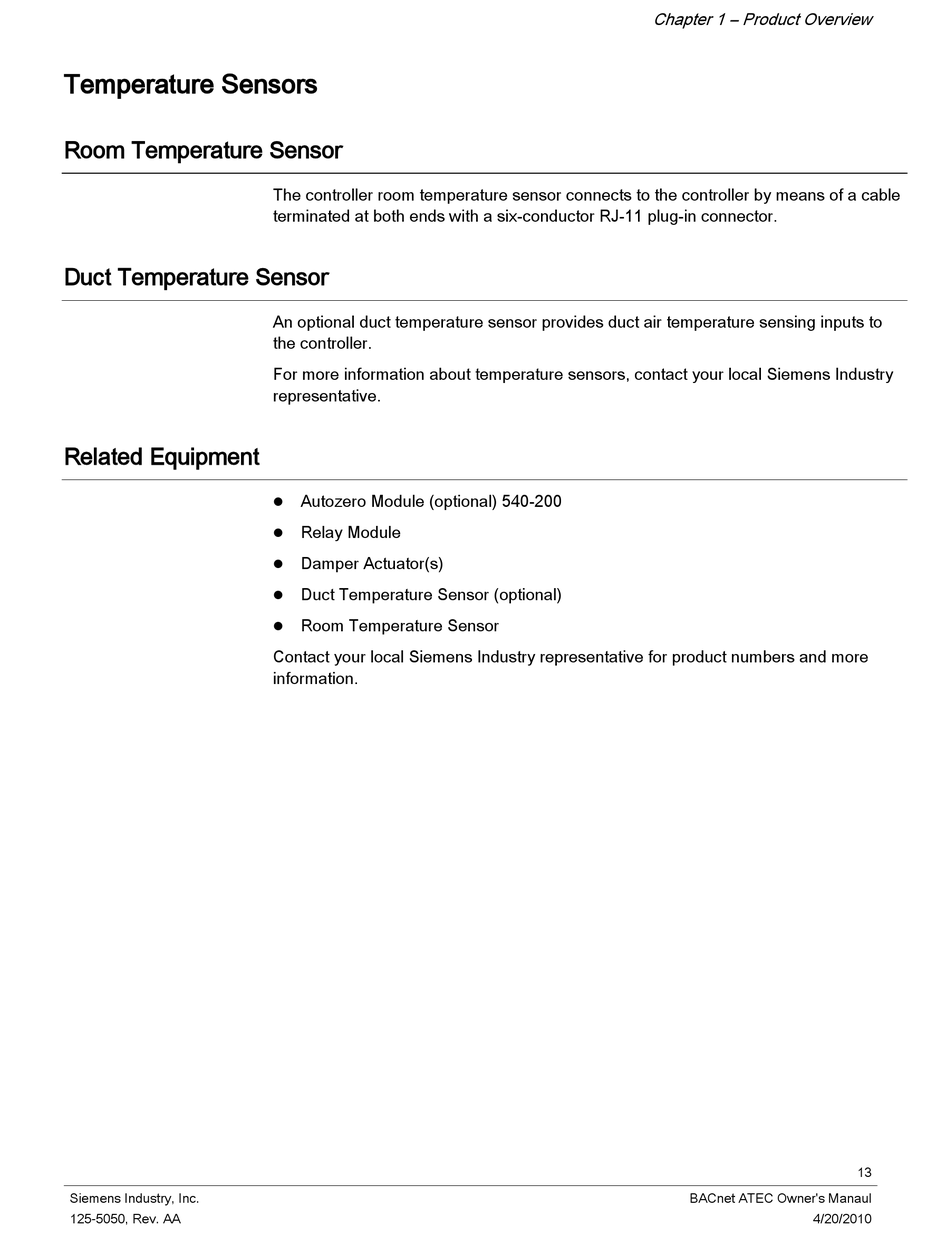

Temperature Sensors

Room Temperature Sensor

Duct Temperature Sensor

Related Equipment

Siemens Industry, Inc.
125-5050, Rev. AA
The controller room temperature sensor connects to the controller by means of a cable
terminated at both ends with a six-conductor RJ-11 plug-in connector.
An optional duct temperature sensor provides duct air temperature sensing inputs to
the controller.
For more information about temperature sensors, contact your local Siemens Industry
representative.
Autozero Module (optional) 540-200

Relay Module

Damper Actuator(s)

Duct Temperature Sensor (optional)

Room Temperature Sensor

Contact your local Siemens Industry representative for product numbers and more
information.
